UMI Performance 93-02 Camaro Front A-Arm Kit, Adjustable, Drag

$959.99
SKU: 230010-R

Availability: In stock

Handling Time: 30 Days

Details

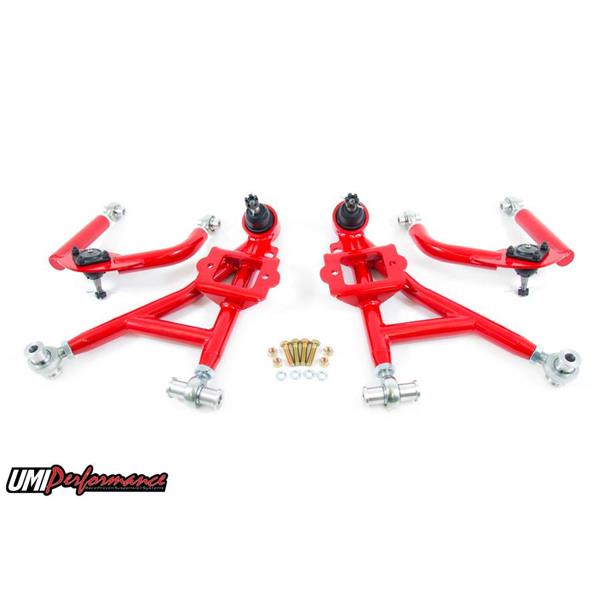

1993-2002 GM F-Body Front A-Arm Kit, Adjustable, Drag

UMI’s fabricated tubular a-arms provide a rock solid foundation for your 4th Gen’s front suspension. Our a-arm kit is built to offer increased rigidity, smooth non-binding travel, a precise steering feel, and an 8lb weight savings over stock. The DOM 1-1/4” diameter tubular sections are precision bent, CNC notched and TIG welded in a jig to form the solid base. In-house built 4130 CrMo tube adapters provide a durable attachment point for the premium Teflon lined race quality rod ends. The spring and shock attach to the arm via a tough 1/4” thick steel shock mount. The CNC machined lower ball joint cup and CNC laser cut upper pad feature premium ball joints installed. UMI’s tubular lower a-arms can be installed on the factory k-member or any aftermarket k-member as well as the stock spindle - making this a true bolt-on product. Manufactured with pride in Philipsburg, PA – USA

Hardware kit P/N 2303 - A-arm hardware kit includes Grade 10.9 bolts, washers and Ny-lock nuts. Kit includes everything needed to mount your new UMI a-arms to the vehicle.

CrMo - CrMo version uses 1-1/4” 4130 CrMo tubing, maintaining strength and reducing product weight by an additional 2lbs giving a total weight reduction of 10lbs. P/N 230010CM.

Features:

1-1/4” USA mild steel DOM tubing

TIG Welded 4130 CrMo threaded tube adapters for thread durability

CNC machined lower ball joint cup

Heavy duty CNC laser cut ¼” thick shock mount

Premium upper and lower ball joints installed

¾” Teflon lined, high load capacity race rod ends

High grade shock mounting hardware included

Uses balance of OEM hardware or use new UMI hardware kit

Durable red or black powder coat

Made in Philipsburg, PA – USA

Fitment Details

Year Make Model Trim Engine Notes
1993 Chevrolet Camaro
1994 Chevrolet Camaro
1995 Chevrolet Camaro
1996 Chevrolet Camaro
1997 Chevrolet Camaro
1998 Chevrolet Camaro
1999 Chevrolet Camaro
2000 Chevrolet Camaro
2001 Chevrolet Camaro
2002 Chevrolet Camaro
1993 Pontiac Firebird
1994 Pontiac Firebird
1995 Pontiac Firebird
1996 Pontiac Firebird
1997 Pontiac Firebird
1998 Pontiac Firebird
1999 Pontiac Firebird
2000 Pontiac Firebird
2001 Pontiac Firebird
2002 Pontiac Firebird
