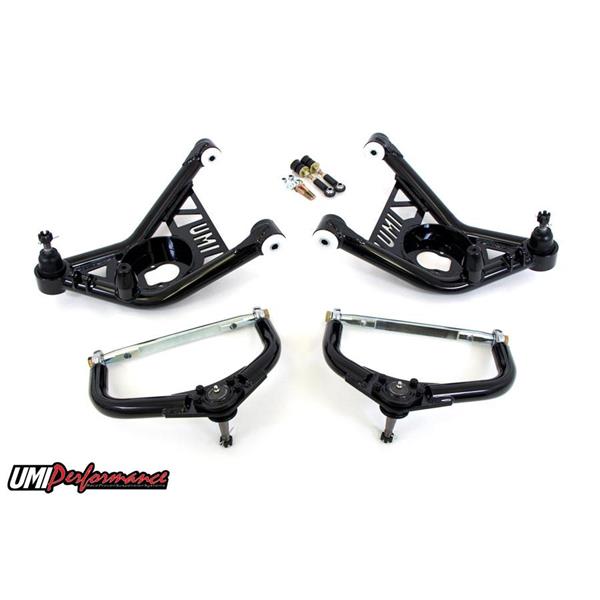

UMI Perf 70-81 Camaro Front A-arm Kit, Delrin Bushings, Adj, Tall Ball Joints

$1,348.99
SKU: 265256-1-B

Availability: In stock

Handling Time: 30 Days

Details

1970-1981 GM F-Body Front A-arm Kit, Delrin Bushings, Adj, Tall Ball Joints

UMI’s 2nd Generation F-Body performance a-arms are perfect for the F-Body enthusiast seeking to improve the performance and blur the lines between race and street use. This kit features caster relocation of both the upper and lower ball joints to enhance steering feel and improve high speed stability. As designed, the caster potential is 8+ degrees. The spindle pin location remains unchanged so fender clearance is like stock. The adjustable upper a-arms reduce the need for shims in addition to providing an easy way to achieve desired camber and caster settings. They also include a tall ball joint to improve camber gain. Upper and lower a-arms are designed to allow proper suspension movement and approved steering response using UMI built Delrin bushings and Teflon lined rod ends. The heavy duty lower spring bucket accepts factory and aftermarket coil springs as well as the popular hybrid coilover units. Laser cut UMI reinforcement plates add a great appearance and excellent strength. UMI’s double shear swivel sway bar end links are included and work nicely with UMI P/N 4035 sway bar and also most aftermarket stock eyelet type sway bars. Available in UMI red or gloss black powder coat. 100% designed, manufactured and raced with pride in Philipsburg, PA - USA.

Features:

Performance a-arm kit is a direct bolt-in for 1970-1981 GM F-Body.

Adjustable upper a-arm uses rod ends for easy alignment.

Total of 8+ degrees caster potential.

Upper ball joint moved rearward to add 5-6 degrees caster potential.

Lower ball joint relocated forward to increase caster 2 degrees which improves steering feel and straight line stability.

Rod ends feature superior friction reduction for quick response.

UMI built Delrin bushings improve steering response and reduce deflection.

½” taller upper ball joint to improve camber gain and traction during cornering.

Upper and lower a-arms built from USA Made DOM steel tubing.

Heavy duty spring bucket accepts factory and aftermarket coil springs.

Spring bucket is compatible with popular hybrid coils such as Viking and QA1.

Double shear swivel sway bar mounts and hardware work with UMI P/N 4035 and most other factory eyelet style sway bars.

Made in the USA.

Fitment Details

Year Make Model Trim Engine Notes
1970 Chevrolet Camaro
1971 Chevrolet Camaro
1972 Chevrolet Camaro
1973 Chevrolet Camaro
1974 Chevrolet Camaro
1975 Chevrolet Camaro
1976 Chevrolet Camaro
1977 Chevrolet Camaro
1978 Chevrolet Camaro
1979 Chevrolet Camaro
1980 Chevrolet Camaro
1981 Chevrolet Camaro
1970 Pontiac Firebird
1971 Pontiac Firebird
1972 Pontiac Firebird
1973 Pontiac Firebird
1974 Pontiac Firebird
1975 Pontiac Firebird
1976 Pontiac Firebird
1977 Pontiac Firebird
1978 Pontiac Firebird
1979 Pontiac Firebird
1980 Pontiac Firebird
1981 Pontiac Firebird
