UMI 93-02 Camaro Tunnel Mounted Torque Arm/ Drive Shaft Loop Use W Stock Exhaust

$559.99
SKU: 2201-B

Availability: In stock

Handling Time: 30 Days

Details

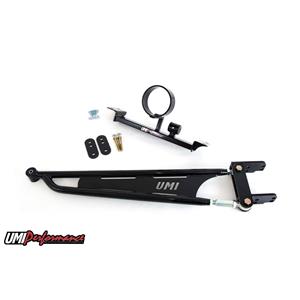

1993 - 2002 GM F-Body Tunnel Mounted Torque Arm and Drive Shaft Loop Mild Steel
ForStock Exhaust
Black Powdercoat

Made in the USA!

  • Applications:
  • 3-02 Chevrolet Camaro
  • 3-02 Pontiac Firebird
  • All models)

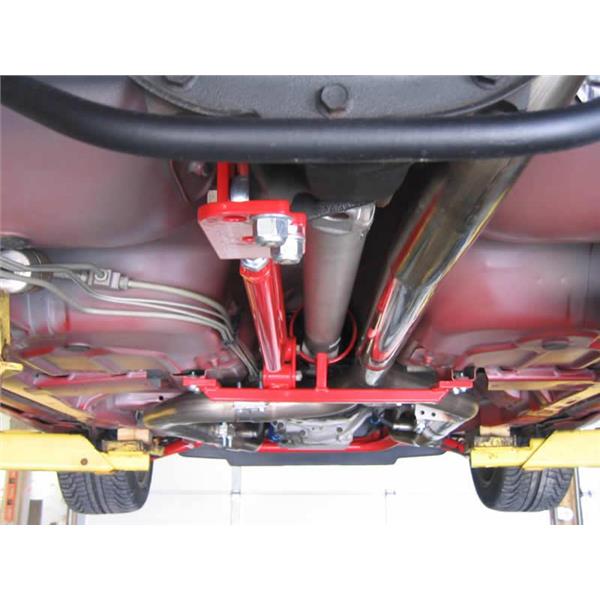

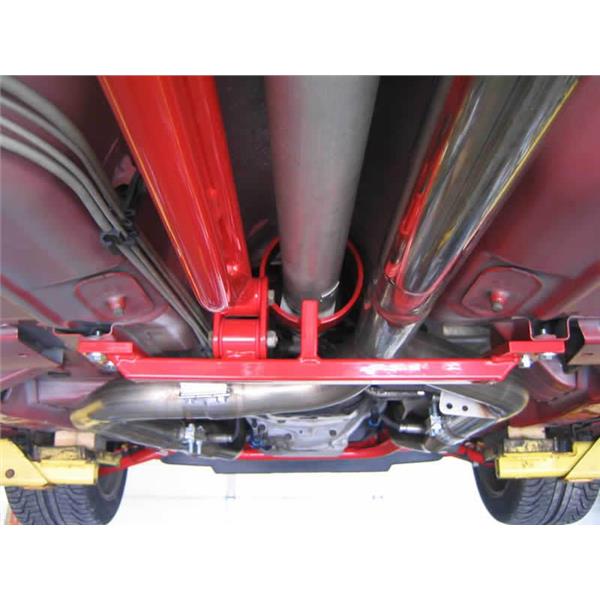

UMI"s tunnel mounted torque arm is a street/strip powerhouse that has been dropping 60 ft times for years. The P/N 2201 replaces the factory torque arm with a shorter, more rigid design that optimizes instant center, shortens response time, and helps improve launch. With the torque arm removed from the transmission, cracked tail housings are eliminated. The tunnel brace bolts directly to the existing floor pan and features poly bushings as well as a robust bolt-on drive shaft loop. The arm is adjustable to optimize pinion angle and also instant center location.

  • Features:
  • rotects transmission from damage by relocating torque arm to tunnel area.
  • Reduces wheel hop and solves traction problems.
  • Allows for easy on the car pinion angle and instant center adjustments.

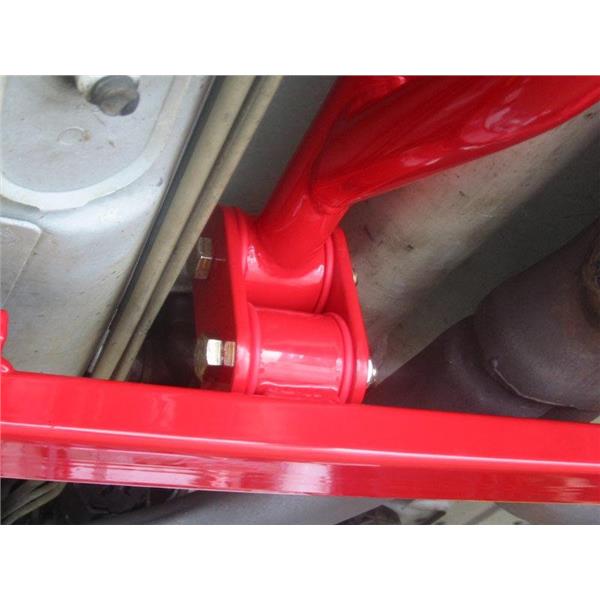

  • Greaseable polyurethane bushings designed to keep road noise to a minimum.
  • Bolt-on design requires no welding or drilling during installation.

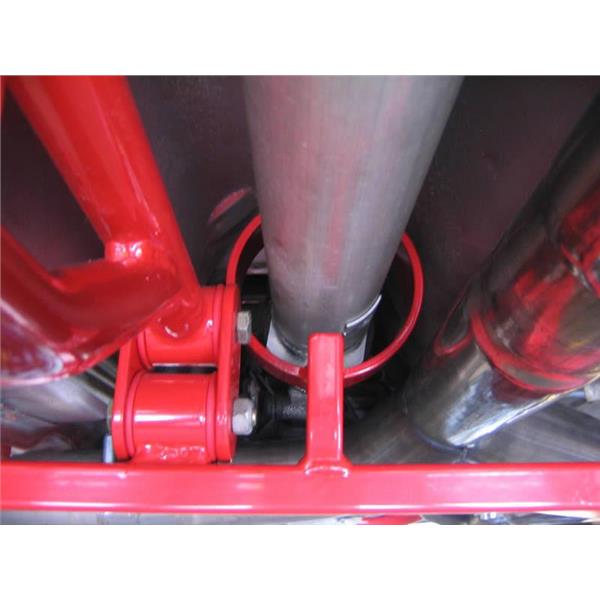

  • Bolt-on drive shaft loop is easily replaceable (UMI P/N 2204) if damaged from a drive shaft failure.
  • rive shaft loop can be removed from tunnel mount for easy installation and can also be adjusted slightly for perfect drive shaft centering on lowered cars.
  • abricated from 1-1/4" USA DOM seamless steel tubing.
  • Crossmember uses Heavy Duty USA rectangular tubing.
  • House made 4140 CrMo tube adapters and adjuster.
  • trong 3/8" thick mild steel rear mount designed to fit stock axle housing as well as Moser 12- Bolt, Moser 9" with bracket, Strange S60 and Quick Performance 9" with bracket.
  • Durable UMI red or gloss black powder coat.
  • 100% manufactured, tested and raced out of Philipsburg, PA-USA.

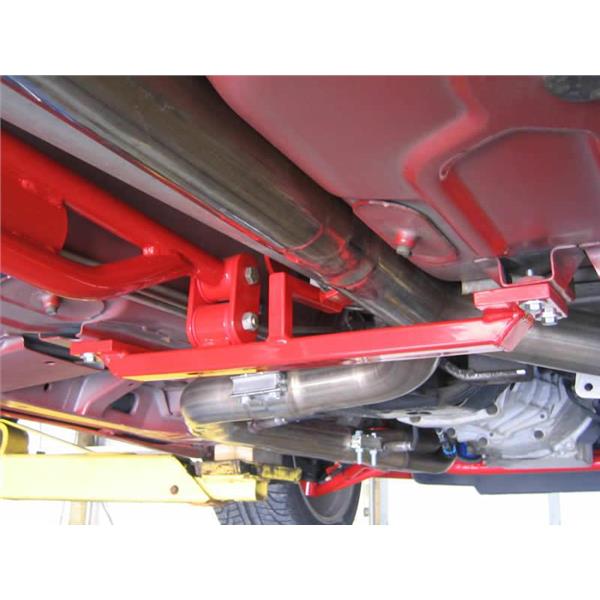

Exhaust Clearance
1993-2002 Models- P/N 2200 is designed to clear with factory exhaust systems and vehicles running shorty headers and y-pipe that bolt into existing location of stock manifolds. It will also clear y-pipes that bolt to factory exhaust manifolds. This set-up may not clear lower hanging long tube headers. Torque arm will clear Kooks long tube headers with Kooks y-pipe. It will also clear similar tight fitting long tube header set ups. This set-up may not clear all lower hanging long tube headers

1998-2002 Models - This unit is designed to clear with factory exhaust systems and vehicles running shorty headers and y-pipe that bolt into existing location of stock manifolds. It will also clear y-pipes that bolt to factory exhaust manifolds. Torque arm will clear Kooks long tube headers with Kooks y-pipe. It will also clear similar tight fitting long tube header set ups. This set-up may not clear all lower hanging long tube headers.

Warranty:
UMI Performance offers a 2 Year replacement Warranty from the original purchase date to the original purchaser of the parts.

UMI P/N 3003 is required on most axles. UMI highly recommends purchasing a new hardware kit as the factory torque arm bolts may be too short and may not capture enough threads. P/N 3003 fits factory, Strange and all others using a long straight through bolt design. For Moser Engineering 12-Bolt use P/N 2998. P/N 2998 includes longer hardware and spacers to reduce movement and prevents failure. Torque arms mounted to Moser 12-bolt and not using hardware kit P/N 2998 are not covered under warranty. Moser 9" uses P/N 3003.

UMI Performance proudly designs and manufactures its entire line of products within its facility located in the small town of Philipsburg, Pennsylvania. The facility features CNC machining, both milling and turning CNC's, band sawing, press brake operation, MIG and TIG welding, sand blasting, plasma cutting and powder coating.

Fitment Details

Year Make Model Trim Engine Notes
1993 Chevrolet Camaro Base Convertible 2-Door 3.4L 207Cu. In. V6 GAS OHV Naturally Aspirated
1993 Chevrolet Camaro Z28 Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1993 Chevrolet Camaro Z28 Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1993 Chevrolet Camaro Base Coupe 2-Door 3.4L 207Cu. In. V6 GAS OHV Naturally Aspirated
1993 Chevrolet Camaro Indianapolis 500 Pace Car Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1994 Chevrolet Camaro Z28 Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1994 Chevrolet Camaro Base Convertible 2-Door 3.4L 207Cu. In. V6 GAS OHV Naturally Aspirated
1994 Chevrolet Camaro Base Coupe 2-Door 3.4L 207Cu. In. V6 GAS OHV Naturally Aspirated
1994 Chevrolet Camaro Z28 Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1995 Chevrolet Camaro Z28 Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1995 Chevrolet Camaro Z28 Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1995 Chevrolet Camaro Base Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1995 Chevrolet Camaro Base Convertible 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1995 Chevrolet Camaro Base Coupe 2-Door 3.4L 207Cu. In. V6 GAS OHV Naturally Aspirated
1995 Chevrolet Camaro Base Convertible 2-Door 3.4L 207Cu. In. V6 GAS OHV Naturally Aspirated
1996 Chevrolet Camaro Base Convertible 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1996 Chevrolet Camaro RS Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1996 Chevrolet Camaro Z28 Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1996 Chevrolet Camaro RS Convertible 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1996 Chevrolet Camaro Base Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1996 Chevrolet Camaro Lujo Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1996 Chevrolet Camaro Z28 Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1997 Chevrolet Camaro Z28 Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1997 Chevrolet Camaro RS Convertible 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1997 Chevrolet Camaro RS Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1997 Chevrolet Camaro Base Convertible 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1997 Chevrolet Camaro Base Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1997 Chevrolet Camaro Z28 Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1997 Chevrolet Camaro Lujo Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1998 Chevrolet Camaro Z28 SS Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1998 Chevrolet Camaro Base Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1998 Chevrolet Camaro Z28 Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1998 Chevrolet Camaro Z28 Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1998 Chevrolet Camaro Lujo Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1998 Chevrolet Camaro Z28 SS Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1998 Chevrolet Camaro Base Convertible 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1999 Chevrolet Camaro Base Convertible 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1999 Chevrolet Camaro Z28 Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1999 Chevrolet Camaro Z28 SS Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1999 Chevrolet Camaro Z28 Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1999 Chevrolet Camaro Base Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1999 Chevrolet Camaro Z28 SS Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
2000 Chevrolet Camaro Z28 Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
2000 Chevrolet Camaro Base Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
2000 Chevrolet Camaro Z28 SS Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
2000 Chevrolet Camaro Z28 SS Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
2000 Chevrolet Camaro Z28 Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
2000 Chevrolet Camaro Base Convertible 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
2001 Chevrolet Camaro Z28 Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
2001 Chevrolet Camaro Z28 SS Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
2001 Chevrolet Camaro Z28 Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
2001 Chevrolet Camaro Base Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
2001 Chevrolet Camaro Base Convertible 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
2001 Chevrolet Camaro Z28 SS Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
2002 Chevrolet Camaro Z28 Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
2002 Chevrolet Camaro Z28 Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
2002 Chevrolet Camaro Base Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
2002 Chevrolet Camaro Z28 SS Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
2002 Chevrolet Camaro Z28 SS Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
2002 Chevrolet Camaro Base Convertible 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1993 Pontiac Firebird Formula Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1993 Pontiac Firebird Base Coupe 2-Door 3.4L 207Cu. In. V6 GAS OHV Naturally Aspirated
1993 Pontiac Firebird Trans Am Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1994 Pontiac Firebird Formula Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1994 Pontiac Firebird Trans Am Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1994 Pontiac Firebird Trans Am Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1994 Pontiac Firebird Trans Am GT Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1994 Pontiac Firebird Formula Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1994 Pontiac Firebird Base Coupe 2-Door 3.4L 207Cu. In. V6 GAS OHV Naturally Aspirated
1994 Pontiac Firebird Base Convertible 2-Door 3.4L 207Cu. In. V6 GAS OHV Naturally Aspirated
1994 Pontiac Firebird Trans Am GT Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1995 Pontiac Firebird Formula Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1995 Pontiac Firebird Base Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1995 Pontiac Firebird Trans Am Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1995 Pontiac Firebird Base Convertible 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1995 Pontiac Firebird Formula Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1995 Pontiac Firebird Base Convertible 2-Door 3.4L 207Cu. In. V6 GAS OHV Naturally Aspirated
1995 Pontiac Firebird Trans Am Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1995 Pontiac Firebird Base Coupe 2-Door 3.4L 207Cu. In. V6 GAS OHV Naturally Aspirated
1996 Pontiac Firebird Formula Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1996 Pontiac Firebird Trans Am Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1996 Pontiac Firebird Base Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1996 Pontiac Firebird Base Convertible 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1996 Pontiac Firebird Formula Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1996 Pontiac Firebird Trans Am Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1997 Pontiac Firebird Formula Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1997 Pontiac Firebird Base Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1997 Pontiac Firebird Formula Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1997 Pontiac Firebird Trans Am Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1997 Pontiac Firebird Trans Am Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1997 Pontiac Firebird Base Convertible 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1998 Pontiac Firebird Formula Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1998 Pontiac Firebird Trans Am Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1998 Pontiac Firebird Base Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1998 Pontiac Firebird Formula Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1998 Pontiac Firebird Trans Am Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1998 Pontiac Firebird Base Convertible 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1999 Pontiac Firebird Base Convertible 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1999 Pontiac Firebird Trans Am Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1999 Pontiac Firebird Formula Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1999 Pontiac Firebird Base Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1999 Pontiac Firebird Formula Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1999 Pontiac Firebird Trans Am Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
2000 Pontiac Firebird Trans Am Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
2000 Pontiac Firebird Formula Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
2000 Pontiac Firebird Formula Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
2000 Pontiac Firebird Base Convertible 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
2000 Pontiac Firebird Base Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
2000 Pontiac Firebird Trans Am Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
2001 Pontiac Firebird Base Convertible 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
2001 Pontiac Firebird Base Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
2001 Pontiac Firebird Trans Am Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
2001 Pontiac Firebird Formula Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
2001 Pontiac Firebird Trans Am Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
2002 Pontiac Firebird Formula Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
2002 Pontiac Firebird Trans Am Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
2002 Pontiac Firebird Base Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
2002 Pontiac Firebird Trans Am Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
2002 Pontiac Firebird Base Convertible 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
