LT1 GENERATION V Engine Serpentine Conversion Kit
Power Steering and Alternator

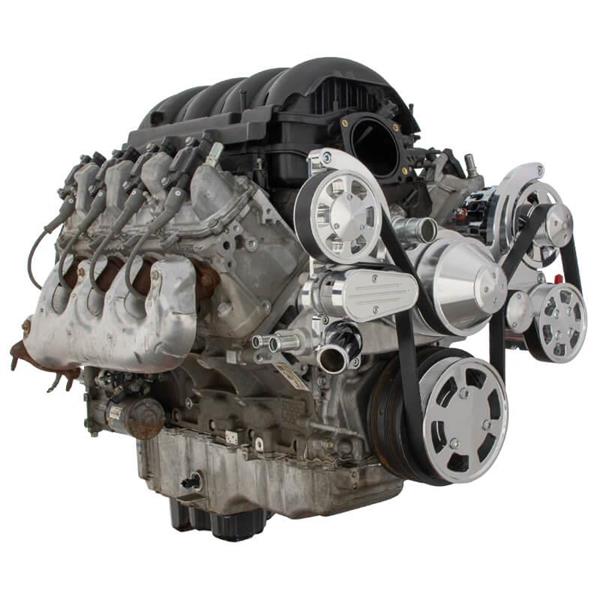

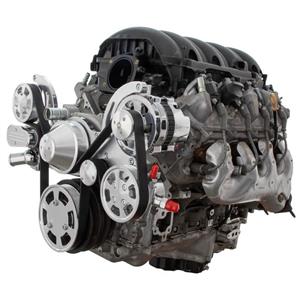

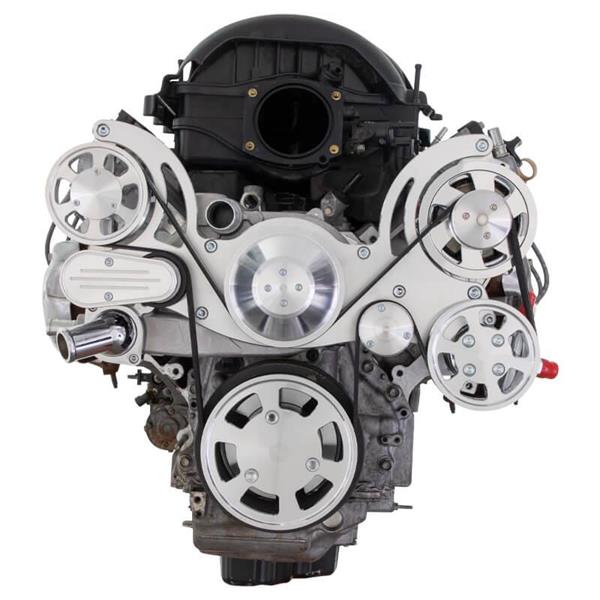

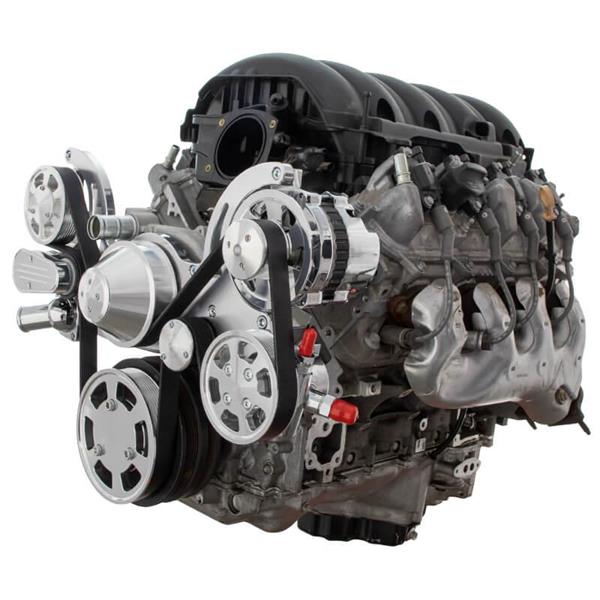

All Inclusive WRAPTORTM 8 Track Serpentine System for Chevy LT1 engines with 140 Amp alternator, GM Type II Power Steering Pump and Peanut Style AC compressor. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slipping compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.
All Inclusive Kit Includes:
- High Flow Aluminum Water Pump
- 140 Amp Chrome 1-Wire CS130 Alternator
- Chrome Plated Aluminum GM Type II Power Steering Pump
- Remote Mount Reservoir with Bracket - Polished Billet Aluminum
- Gates Premium Green Strip 8 Rib Belt
- Crank Pulley - Polished Billet Aluminum
- Crank Pulley Spacer - Polished Billet Aluminum
- Alternator Pulley & Cover - Polished Billet Aluminum
- Power Steering Pulley - Polished Billet Aluminum
- One Piece Billet Aluminum Bracket - Polished Billet Aluminum
- Water Pump Bracket Adaptor - Polished Billet Aluminum
- Universal Alternator Fan - Polished Billet Aluminum
Application Notes:
- Kit requires the balancer from L83 and L86 LT1 Trucks
- Works with Chevy LT1 engines from 2013+
- Compatible with Hydroboost
- Alternator - GM CS130 Style Alternator with 6-12 O'clock mounting and 6.6" bolt spacing
- Power Steering Pump - GM Type II Pump
- Compressor - Peanut Style (7B10) Compressor with 8 Rib Clutch
- Water Pump - 6.5" Tall, Reverse Rotation, .75" Pilot and Lower Radiator Hose on Passenger Side
