RideTech 2007 - 2013 Chevy Silverado GMC Sierra 1500 | Complete TQ Adjustable Air Ride Suspension System
SKU: 11700398

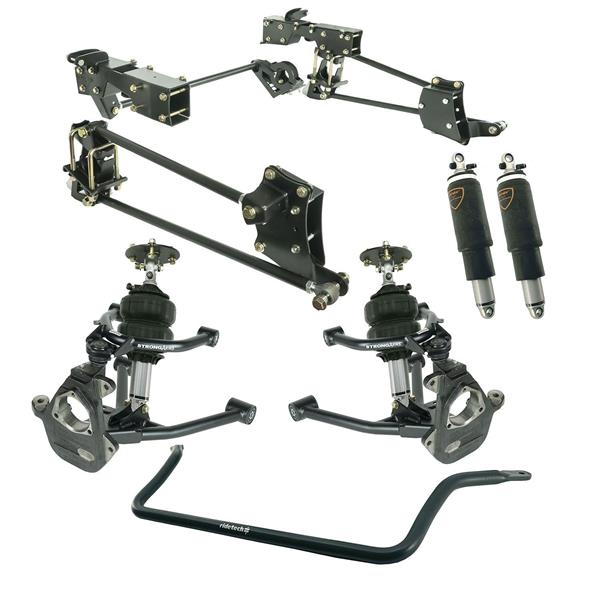

Air Suspension System for 2007-2013 Silverado/Sierra 1500 2WD. Includes drop spindles, front sway bar, TQ Series Shockwaves, front StrongArms, and rear 4-link with panhard bar.
Air Ride Suspension System for 2006 - Silverado & Sierra 1500 2WD. (2007 Classic). Includes front and rear HQ Series Shockwaves, front upper and lower StrongArms, Bolt-On 4 Link and drop spindles.
- Offers a ride height that is approximately 4 in. lower than stock in the front and 6 in. in the rear. Fully deflated will net an additional 3 in. drop.
- TQ Series ShockWaves - The remote reservoir triple adjustable coil-over shocks feature rebound adjustment along with dual stage (High Speed & Low Speed) compression adjustment. High-speed adjustment allows tuning for impact harshness and low speed adjustment allows tuning of cornering characteristics, perfect for use on the autocross, road course and drag strip.
- Upper StrongArms tubular control arm feature corrected ball joint angles for the lowered ride height and the length has been altered to create more camber adjustment. Injection-molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.
- Lower StrongArms tubular control arm feature a double sheer lower shock mount for increased strength. We have also dropped the lower shock mount to increase suspension travel and altered the length to create more camber adjustment. Injection-molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.
- A Front MuscleBar sway bar is included to reduce body roll and includes the PosiLink End-links that provide immediate engagement between the chassis and control arms.
- Drop Spindles are used to all the use of a longer stroke shock and improve suspension geometry and bump-steer. Fits 17 in. or larger wheels.
- Bolt-On 4-Link greatly improves traction, handling and ride quality. Installation does not require any welding or major modifications to the bed floor. Includes patent-pending R-Joint rod ends to eliminate binding and noise.
- Includes patent-pending R-Joint rod ends to eliminate binding and noise.
- Optimized anti-squat, roll center, and pinion angle migration for dramatic improvements in handling and traction.
- Bolt-on C-Notch reinforces OEM frame rails and features integrated suspension mounts.
- Designed for simple installation with minimal OEM rivet removal.
NOTE *** To complete this Air Suspension system please choose from one of our Compressor Systems
NOTE *** Designed to fit 2wd trucks.
Fitment Details
Year | Make | Model | Trim | Engine | Notes |
---|---|---|---|---|---|
2007 | Chevrolet | Silverado 1500 | |||
2008 | Chevrolet | Silverado 1500 | |||
2009 | Chevrolet | Silverado 1500 | |||
2010 | Chevrolet | Silverado 1500 | |||
2011 | Chevrolet | Silverado 1500 | |||
2012 | Chevrolet | Silverado 1500 | |||
2013 | Chevrolet | Silverado 1500 | |||
2007 | GMC | Sierra 1500 | |||
2008 | GMC | Sierra 1500 | |||
2009 | GMC | Sierra 1500 | |||
2010 | GMC | Sierra 1500 | |||
2011 | GMC | Sierra 1500 | |||
2012 | GMC | Sierra 1500 | |||
2013 | GMC | Sierra 1500 |
