Quick Time Bellhousing - Chevy
Perfect fit for Big Block and Small Block Chevys with T56 LS-1 transmissions, Mechanical Fork

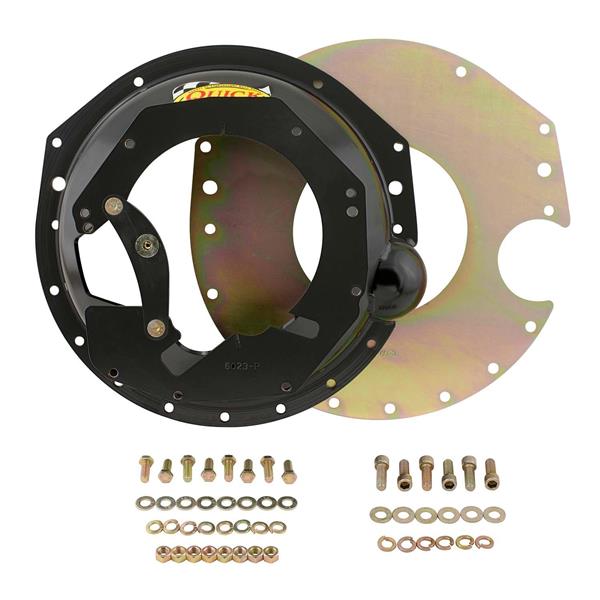

The Quick Time RM-6023PB bellhousing connects Chevy small block and big block engines to Chevy T56 LS-1 transmissions. Included with this is the pivot ball required for clutch fork attachment. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)
Features:
- Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
- QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
- Built from high grade steel "Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
- 100% built in the USA
- Patent on 16 points of Bellhousing Design & Process
Installation Note:Std LH Fork or Hyd. Bearing
Specifications:
- Brand: Quick Time
- Certification: 6.1 SFI
- Clutch Diameter: 11" or smaller
- Clutch Operation: Mechanical or Hydraulic
- Color: Black
- Emission Code: 5
- Engine: Chevy Big Block V8
- Engine: Chevy LT1
- Engine: Chevy Small Block V8
- Engine Make: Chevrolet
- Engine Plate: RM-6023-C
- Finish: Semi-gloss
- Flywheel: 153/168 Tooth
- Height: 5.950 inch
- Make: Chevrolet
- Material: Steel
- Product Type: Bellhousing
- SFI Certification: 6.1
- Trans Bore: N/A
- Trans. Bore Diameter: N/A
- Transmission: T56 GM
- Transmission: T56 Magnum
- Transmission Type: Manual
- Warranty: Limited 90 Day Warranty
- Weight: 22#
