Details
Quick Time Bellhousing - Chevy
Perfect fit for Big Block and Small Block Chevys with Muncie, Richmond, Saginaw, or TKO transmissions, SFI 6.1 Certified

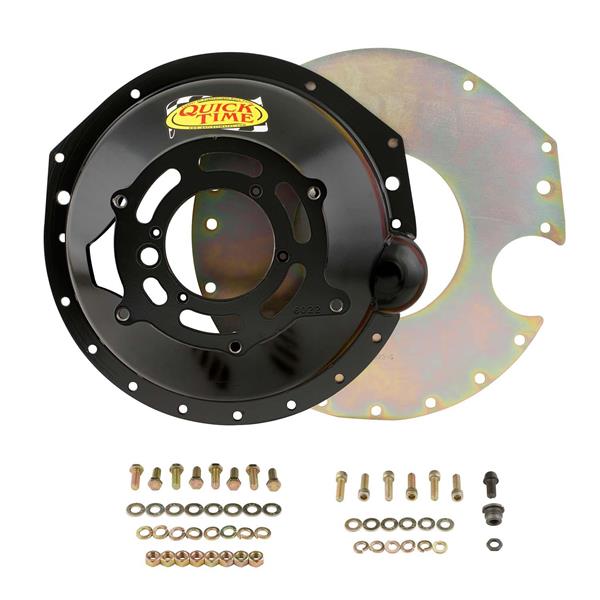

The Quick Time RM-6022 bellhousing connects small block and big block Chevy engines to transmissions utilizing the GM standard pattern such as the Muncie, Saginaw, Borg Warner T10 and Tremec TKO transmissions. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)
Features:
- Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
- QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
- Built from high grade steel "Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
- 100% built in the USA
- Patent on 16 points of Bellhousing Design & Process
Installation Note:Std LH Fork or Hyd. Bearing
Specifications:
- Brand: Quick Time
- Certification: 6.1 SFI
- Clutch Diameter: 11"
- Clutch Operation: Hydraulic
- Color: Black
- Emission Code: 5
- Engine: Chevy Big Block V8
- Engine: Chevy LT1
- Engine: Chevy Small Block V8
- Engine Make: Chevrolet
- Engine Plate: RM-6023-C
- Finish: Semi-gloss
- Flywheel: 153/168 Tooth
- Height: 6.290 inch
- Make: Chevrolet
- Material: Steel
- Product Type: Bellhousing
- SFI Certification: 6.1
- Trans Bore: 4.687
- Trans. Bore Diameter: N/A
- Transmission: Bert Racing
- Transmission: Brinn Racing
- Transmission: Falcon
- Transmission: Jerico
- Transmission: Muncie
- Transmission: Richmond
- Transmission: Saginaw
- Transmission: T10
- Transmission: T5 Chevy
- Transmission: TKO 500/600 Chevy
- Transmission Type: Manual
- Warranty: Limited 90 Day Warranty
- Weight: 22#
