Quick Time Bellhousing - Chevy LS RM-6036

SKU: RM-6036

Availability: In stock

Handling Time: 30 Days

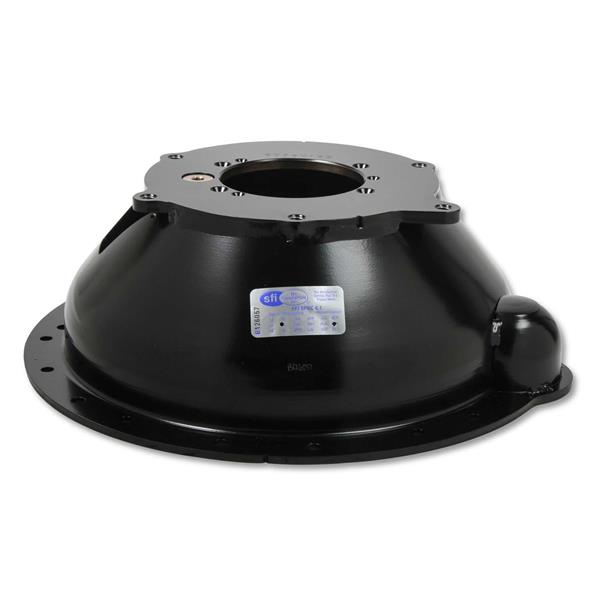

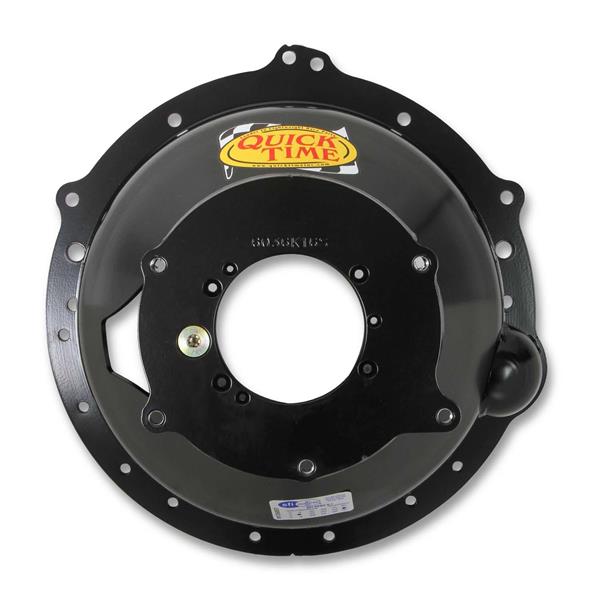

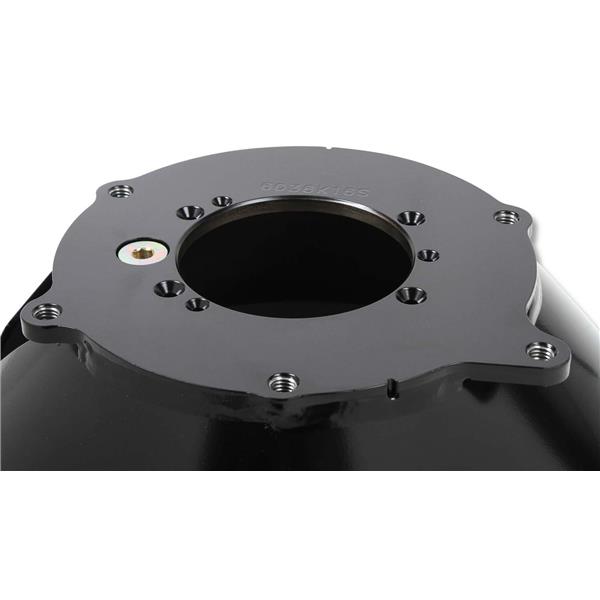

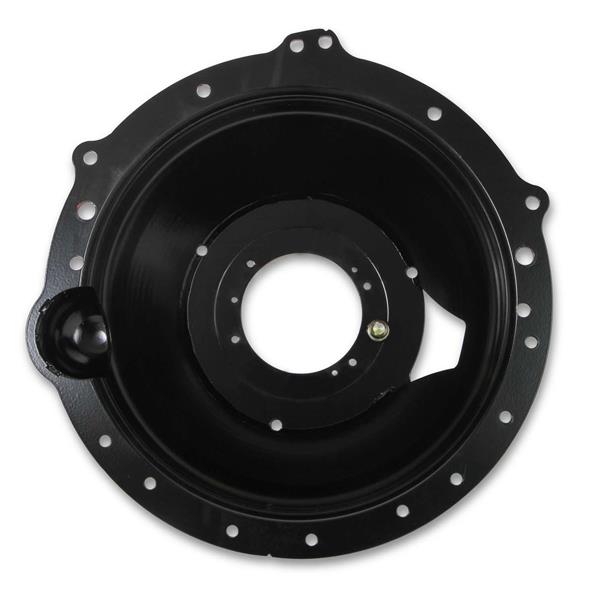

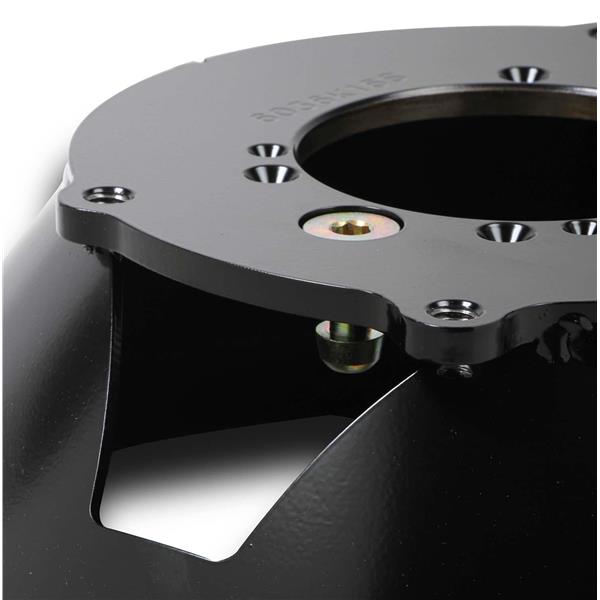

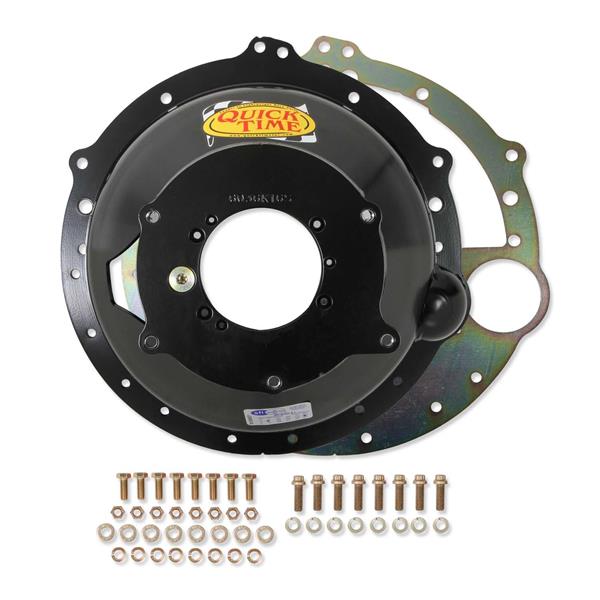

Quick Time Bellhousing - Chevy LS

Perfect fit for Chevy LS engines with Muncie, Jerico, T5 or TKO 500/600 Chevy transmissions can also be used with late model LT1 and LT4 engines.

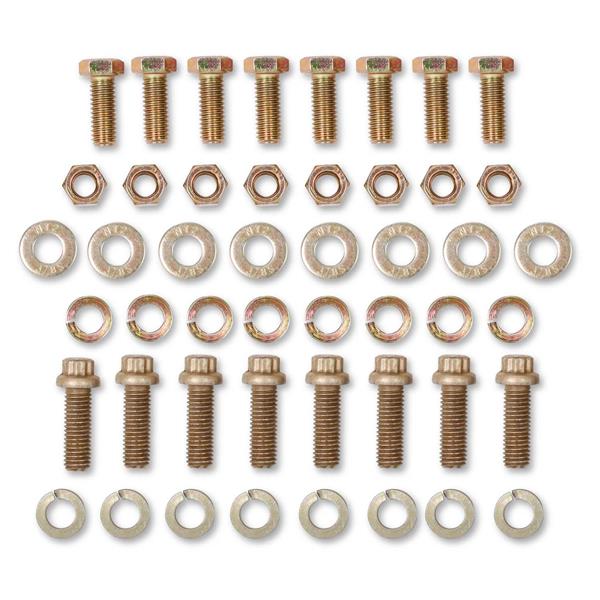

The Quick Time RM-6036 bellhousing connects GM LS engines to transmissions utilizing the GM standard pattern such as the Muncie, Saginaw, Borg Warner T10 and Tremec TKO transmissions. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)


  • Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
  • QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
  • Built from high grade steel "Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
  • 100% built in the USA
  • Patent on 16 points of Bellhousing Design & Process

Installation Note:Std LH Fork or Hyd. Bearing


  • Brand: Quick Time
  • Certification: 6.1 SFI
  • Clutch Diameter: N/A
  • Clutch Operation: Mechanical or Hydraulic
  • Color: Black
  • Emission Code: 5
  • Engine: Chevy LT1
  • Engine: Chevy LT4
  • Engine: GM Small Block Gen III/IV (LS Based)
  • Engine Make: Chevrolet

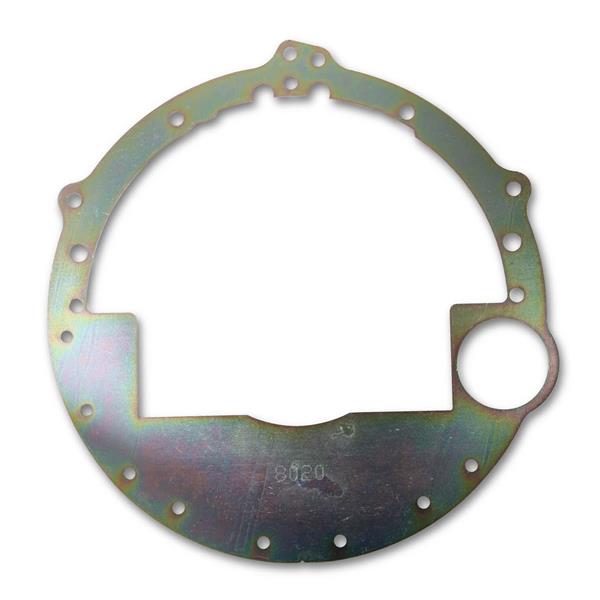

  • Engine Plate: RM-6034-C
  • Finish: Semi-gloss
  • Flywheel: 153/168 Tooth
  • Height: 6.000 inch
  • Make: Chevrolet
  • Material: Steel
  • Product Type: Bellhousing
  • SFI Certification: 6.1
  • Starter: OE
  • Trans Bore: 4.688
  • Trans. Bore Diameter: N/A
  • Transmission: Bert Racing
  • Transmission: Brinn Racing
  • Transmission: Falcon
  • Transmission: Jerico
  • Transmission: Muncie
  • Transmission: Richmond
  • Transmission: Saginaw
  • Transmission: T10
  • Transmission: T5 Chevy
  • Transmission: TKO 500/600 Chevy
  • Transmission Type: Manual
  • Warranty: Limited 90 Day Warranty
  • Weight: 22#
