FBF003 - 1970-1981 GM F-Body Handling Kit, 2" Lowering, Stage 3

FBF003 - 1970-1981 GM F-Body Handling Kit, 2" Lowering, Stage 3

Each
$2,959.99
Skip to product information
FBF003 - 1970-1981 GM F-Body Handling Kit, 2" Lowering, Stage 3

FBF003 - 1970-1981 GM F-Body Handling Kit, 2" Lowering, Stage 3

$2,959.99

Details

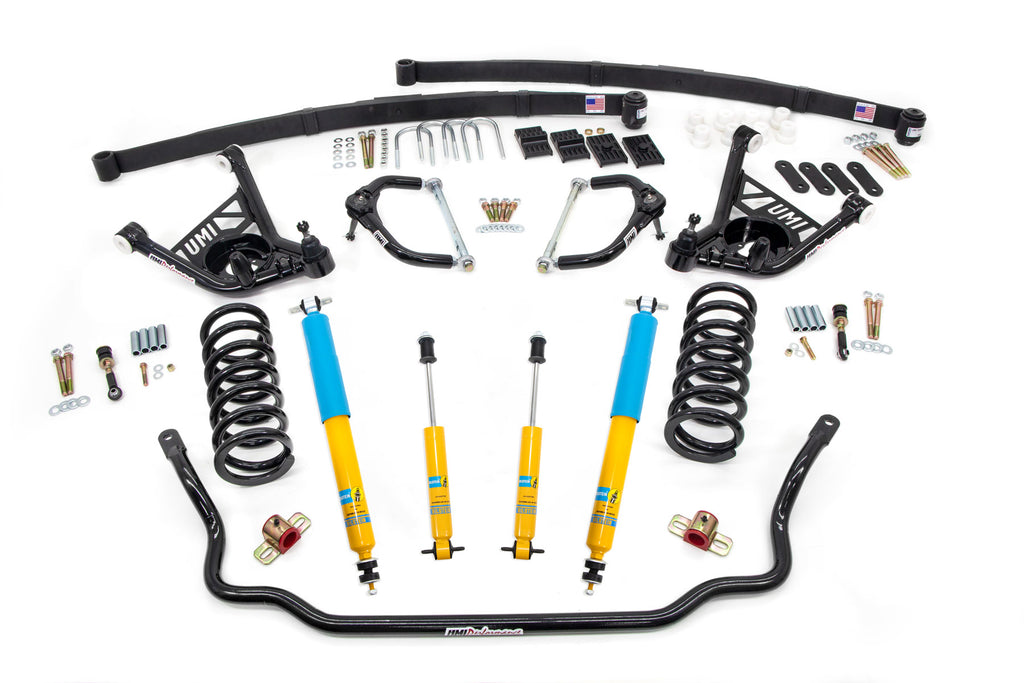

UMI’s FBF003 Stage 3 handling kit features everything you need to transform your 2nd Gen F-Body from a land yacht into a modern handling, corner carving muscle car. Caster corrected upper and lower a-arms enhance high speed stability and reduce wandering. These arms feature a tall ball joint in the upper arm and Delrin bushings in the lower to improve steering response and optimize camber gain for better cornering. 2" front lowering springs and rear lowering leafs take away that floating feeling so common with stock, worn out springs. Bilstein shocks feature comfortable compression and sporty rebound damping to control body movement and improve response when hitting transitions on your favorite back road. The 2nd Gen platform responds nicely to the heavy duty 1-¼" front sway bar which prevents body roll and makes the car much more fun, and easy, to drive. The UMI designed leafs are delivered with the front bushing installed and the kit includes laser cut shackles with Delrin bushings for a crisp, sporty ride. Also included are high quality polyurethane isolator pads as well as heavy duty Made In USA U-bolts and hardware. This kit is suitable for corner carving and even daily driving with a sporty feel. 100% Made In USA of USA materials.

Description

FBF003 - 1970-1981 GM F-Body Handling Kit, 2" Lowering, Stage 3

Short Description

Handling Kit

Product Info

Part Number FBF003-B
Part Type Suspension Lowering Kit
HS Code 8708807000
Country of Origin US

Available Packages

Package Qty Weight Dimensions GTIN
Each 1 220.0 lb L 55.0 x W 20.0 x H 5.0 Inches

Specifications

Adjustable Control Arm Yes
Bushing Color Red, White
Bushing Material Delrin
California Proposition 65 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Control Arm Bushings Included Yes
Control Arm Color Black
Control Arm Construction Tubular
Control Arm Included Yes
Control Arm Material Steel
Finish Black Powdercoated
Front Shock Type Monotube
Front Spring Rate Type 600lb/in
Front Sway Bar Color Black
Front Sway Bar Diameter 1-1/4"
Lowering Amount 2" Lowering
Mounting Hardware Included Yes
Rear Shock Type Monotube
Rear Spring Rate Type 175lb/in
Sway Bar Bushings Included Yes

Fitment

Year Make Model Submodel
1970-1981 Chevrolet Camaro
1970-1981 Pontiac Firebird
