406503 - 1971-1972 GM A-body Corner Max Kit

UMI’s Corner Max front kit includes coilover-only A-arms, tall ball joints, 2” drop spindles, Viking shocks, 1-5/16” sway bar, racing springs, and bump steer kit. Bolt-on, 2-3” lowering, adjustable caster/camber, race-proven, made in USA.

Details

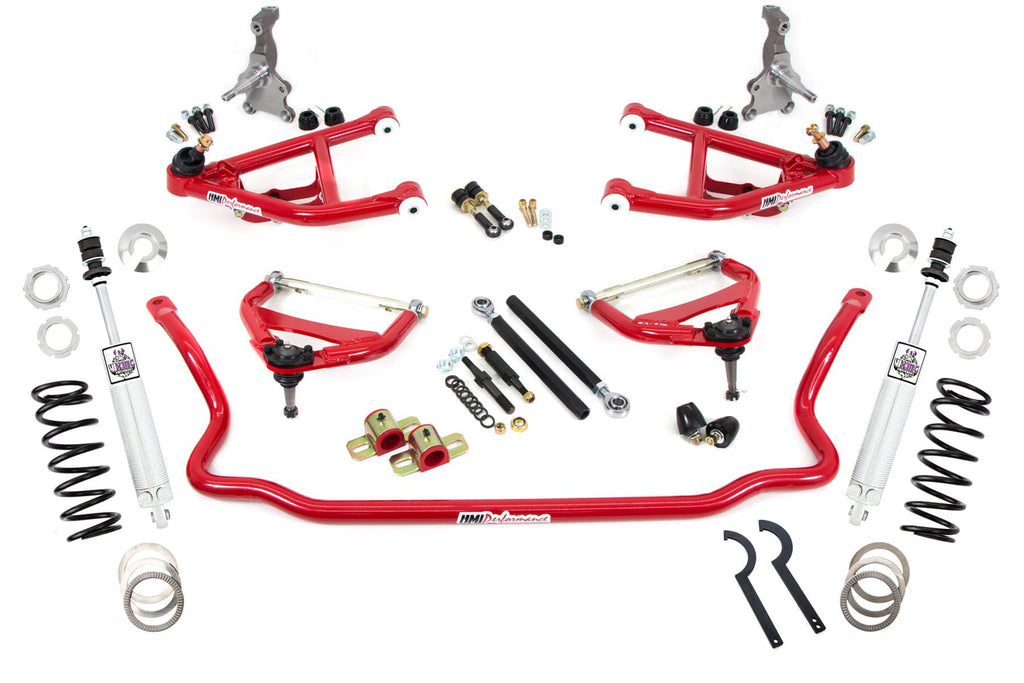

UMI’s Corner Max front-end kits provide a comprehensive system featuring our best corner-carving parts under a single part number. The Corner Max system combines geometry-corrected A-arms with tall spindles and ball joints, higher rate springs, Viking shocks, a heavy-duty sway bar, and a bump steer kit. The addition of tall 2” drop spindles with taller ball joints significantly improves camber gain and allows for a lower center of gravity. The foundation of the kit includes coilover-only lower A-arms that enhance caster, feature quality ball joints, and allow easy removal of the spring and shock without disassembling the spindle. The upper A-arm includes rod ends for smooth operation and can be adjusted without shims. The 1-5/16” sway bar upgrade, complete with UMI’s fabricated end links, reduces body roll and enhances transition speed. Racing coilover springs are paired with Viking shocks, and fine-tuning is achieved with a UMI bump steer kit. The Corner Max kit is designed to optimize the stock GM clip's performance with a true bolt-on kit. All UMI parts are fabricated and tested with pride in Philipsburg, PA – USA, and have been race proven on the UMI LeMans. Features: - Exceptional handling with a 2-3” lowering. The included drop spindle allows additional lowering compared to the factory spindle. - Up to 10 degrees of static caster without moving the spindle pin. - Up to 1.2 degrees of camber gain per inch. - 1.75” taller spindle with a 2” drop and ½” tall upper ball joint. - Easily change shocks and springs at the track using UMI’s unique quick-change system. - 850 lb/in race-proven spring rates for outstanding handling. - Viking shocks. - 1-5/16” solid sway bar with swivel end links for proper kit balance. - Bump steer kit for precise adjustments. - Thrust bearings and an adjusting wrench included for easy height changes. - Raced and tested on UMI’s 1972 LeMans test car. - All UMI suspension components are designed and manufactured in the USA.

Description

UMI Corner Max Kit: Coilovers, A-arms, sway bar & bump steer, race-proven.

Short Description

CornerMax Kit

Application Summary

UMI designed 406503 to fit the 1971-1972 GM A-Body.

Features

• Exceptional handling at 2-3” lowering
• Up to 10 degrees static caster without moving spindle pin
• Up to 1.2 degrees per inch camber gain
• 1.75” taller spindle with 2” drop and ½” tall upper ball joint
• Easily change shocks and springs at the track with UMI’s unique quick change system
• 850 lb/in race proven spring rates for exceptional handling
• Viking shocks
• 1-5/16” solid sway bar with swivel end links to balance kit properly
• Bump steer kit for fine tuning
• Thrust bearings and adjusting wrench included for easy height changes
• Raced and tested on UMI’s 1972 LeMans test car
• All UMI suspension components are designed and manufactured in the USA
