3625 - 1978-1996 GM B-Body Drive Shaft Safety Loop

This NHRA-legal driveshaft safety loop fits 1978–1996 GM B-bodies and replaces the factory brace with no drilling or welding. Made from 0.250" steel with CNC mounts and full MIG welds, it installs in ~20 mins. Hardware included.

Details

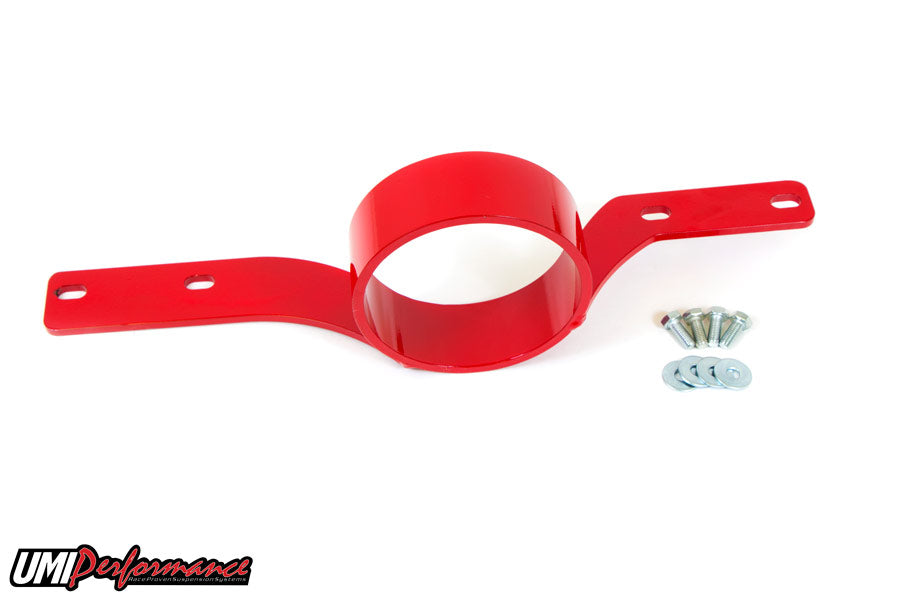

This drive shaft safety loop is NHRA legal and designed specifically for the 1978-1996 GM B-body. It is a bolt-in application that replaces the factory chassis brace without the need for welding or drilling. This safety loop is essential for tracks that require vehicles running faster than 13.99 in the quarter mile. The loop is constructed of 0.250" thick mild steel, with CNC machined mounting points for a precise fit. It is fully MIG welded for superior strength. Installation is quick and easy, with new grade 10.9 hardware included. Detailed instructions are provided for a hassle-free 20-minute installation process.

Description

NHRA-legal B-body driveshaft loop, bolt-in, strong steel, easy install.

Short Description

Drive Shaft Loop

Notes

NHRA (National Hot Rod Assosiation): "360 degrees of enclosure, 1/4-inch minimum thickness and 2 inches wide, or 7/8-inch x .065-inch welded steel tubing, securely mounted to the frame or frame structure where available" -NHRA Rulebook

Application Summary

UMI design 3625 to fit the1978-1996 GM B-Body.

Features

• 100% Bolt in design that requires no drilling
• Loop made from DOM tubing, not commonly used electric welded
• New grade 10.9 grade hardware included
• Durable long lasting glossy powder coat finish

Product Info

Available Packages

Specifications

Fitment
