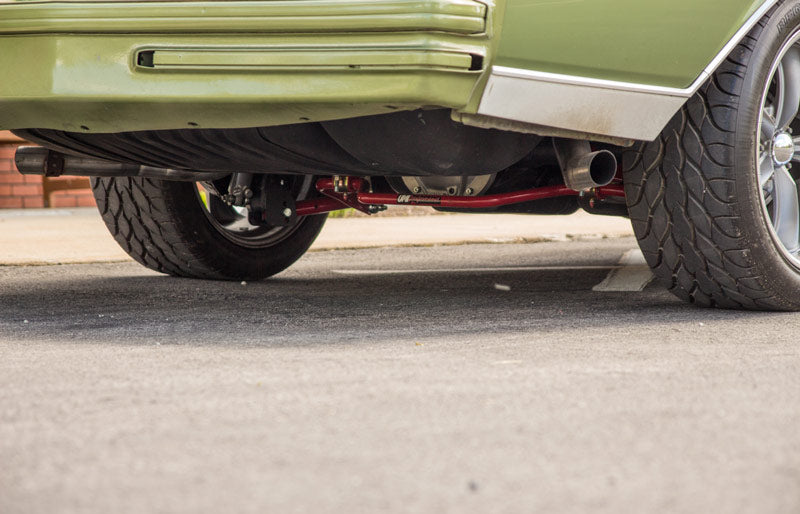

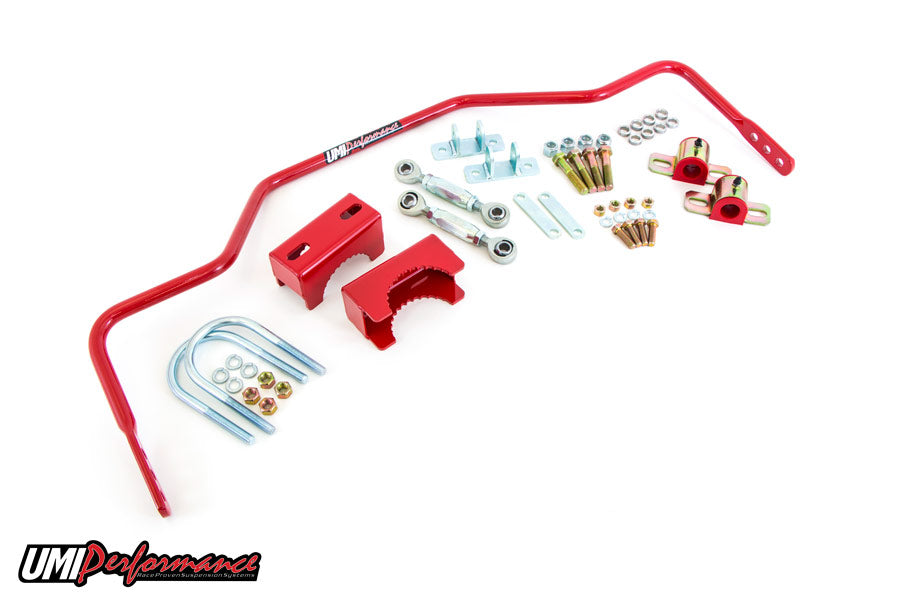

3052-300 - 1978-1988 GM G-Body 3/4” Solid Rear Sway Bar, Auto-x/Road Race

Details

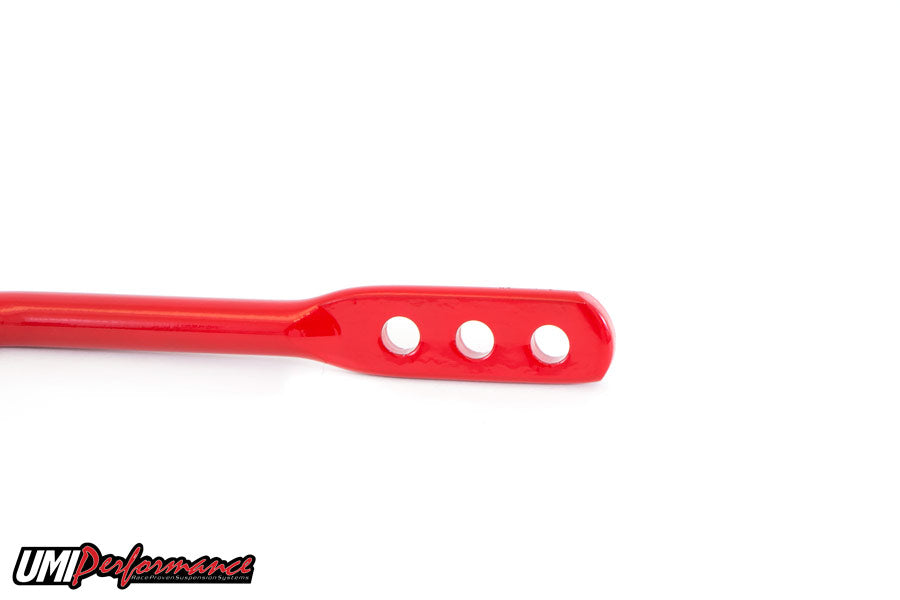

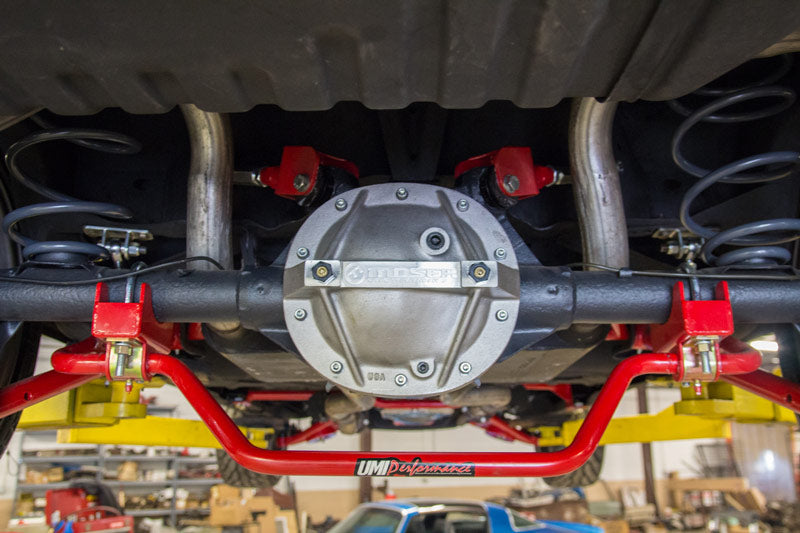

UMI's G-Body ¾” solid rear sway bar is designed specifically to excel when used in autocross or road racing applications. The G-Body chassis when coupled with the common high rate PT bar tends to lift the inside rear tire during competition. The lower rate 3052 bar prevents inside rear wheel lift while still providing roll resistance and enhancing rotation. The chassis and differential housing mounts reduce bind normally associated with the factory style bars. UMI's tried and true CNC machined clamping system allows differential housing mounting on 2.75", 3" and 3.25" diameter housings. These can be bolted on, or welded for additional security. The double shear chassis mounts are held in place by four 3/8" fasteners. Drilling through the crossmember is required and a template /instructions are included. Choose the longest hole for street and high speed courses, middle hole for medium, and the shortest hole for maximum rotation.

Description

3052-300 - 1978-1988 GM G-Body 3/4” Solid Rear Sway Bar, Auto-x/Road Race

Short Description

Rear Swaybar
