2016 – 1982-2002 GM F-Body Lower Control Arms, Single-Adjustable
Each
$219.99
Skip to product information

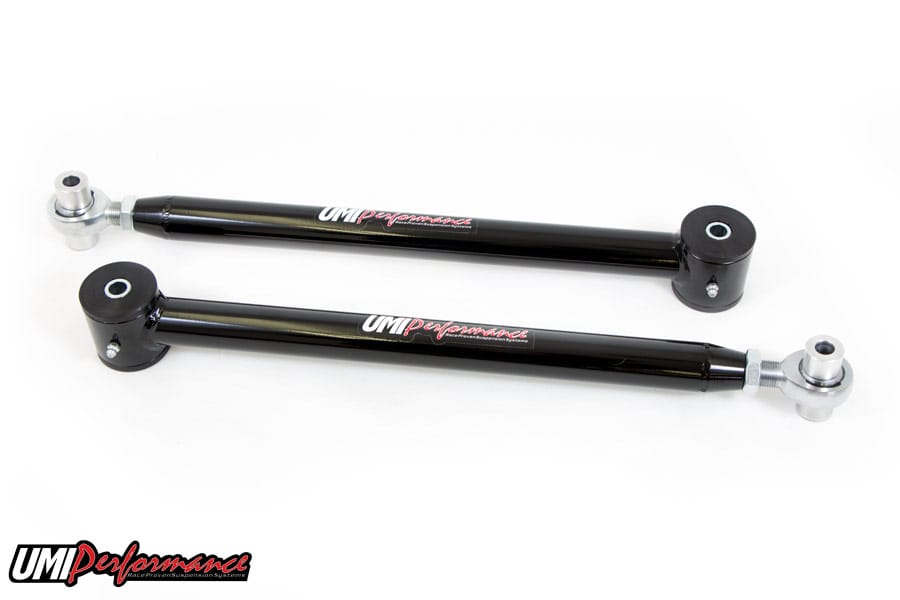

2016 – 1982-2002 GM F-Body Lower Control Arms, Single-Adjustable
$219.99
Upgrade to UMI tubular adjustable control arms for better traction, cornering, and track consistency. Built from DOM steel with QA1 Teflon-lined rod ends and polyurethane bushings, they deliver quiet, bind-free performance.
Details

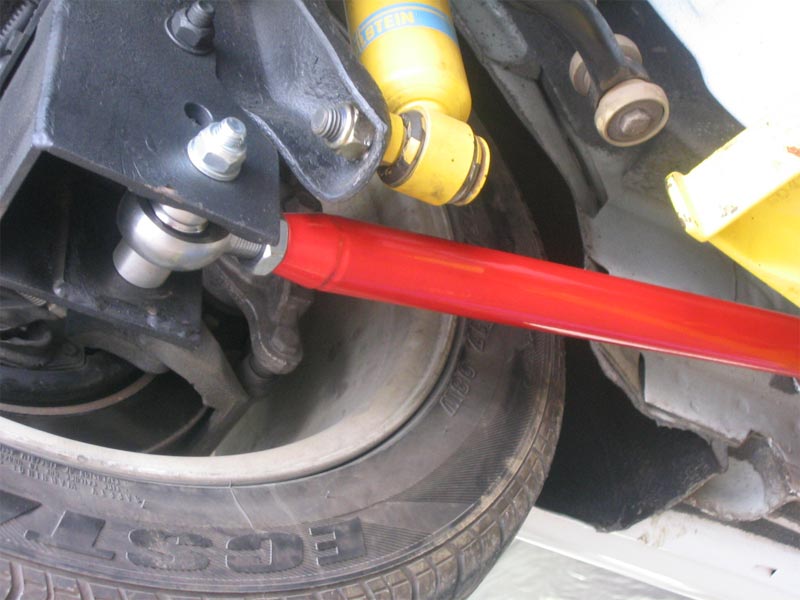

Replace your weak, factory-stamped lower control arms with UMI's heavy-duty tubular adjustable setup. These direct bolt-on replacements reduce wheel hop, enhance cornering, lower ETs, and help maintain track consistency. The spherical rod end enables "bind-free" operation, making it an excellent upgrade for both track and autocross vehicles. The polyurethane bushings are designed to bolt to the car chassis for a quiet, comfortable operation. Control arms are constructed from DOM mild steel tubing with a diameter of 1.375" and a wall thickness of 0.095". They also feature a 4130 chrome moly threaded tube adaptor, which is completely CNC machined and fully TIG welded for exceptional strength. The control arms include polyurethane bushings, zinc-plated steel sleeves, and "on-car" greaseable zerk grease fittings. Adjustments can be made using the high-quality QA1 Teflon-lined spherical rod end, ensuring quiet, bind-free performance. Installation takes approximately 30 minutes at factory mounting points using OEM hardware. The poly end is designed to bolt to the chassis for a quiet, comfortable ride.
Description
UMI tubular arms improve traction, handling, and track performance.
Short Description
Lower Control Arms
Application Summary
UMI designed 2016 to fit 1982-2002 GM F-Body Camaro and Firebird.
Features
- 1.375" x 0.095" DOM Mild Steel Tubing
- 4130 Chrome-Moly Threaded Tube Adaptor
- QA1 3/4" Hard Chrome Plated, Teflon/Kevlar Self-Lubricating Race Rod End
- TIG Welded Construction
- CNC Machined 6061 Aluminum Step Bushings with Zinc Plated Steel Sleeves
- High Quality Fluted Polyurethane Greaseable Bushings
- Easy installation with OEM hardware
- Quiet and comfortable operation
Product Info
| Part Number | 2016-B |
|---|---|
| Part Type | Suspension Trailing Arm |
| HS Code | 8708807000 |
| Country of Origin | US |
Available Packages
| Package | Qty | Weight | Dimensions | GTIN |
|---|---|---|---|---|
| Each | 1 | 10.0 lb | L 24.0 x W 6.0 x H 4.0 Inches |
Specifications
| Adjustable | Yes |
|---|---|
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Color | Black |
| End 1 Type | Polyurethane |
| End 2 Type | Rod End Bearing |
| Finish | Black Powdercoated |
| Grade Type | Heavy Duty |
| Material | Steel |
| Mounting Hardware Included | No |
| Mounting Type | Bolt In |
Fitment
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1982-2002 | Chevrolet | Camaro | |
| 1982-2002 | Pontiac | Firebird |
