101517 - 1979-1998 Ford Mustang Upper & Lower Rear Control Arms Kit

UMI complete kit: single adjustable lower and double adjustable upper control arms. Minimizes wheel hop, improves cornering, and allows quick on-car pinion angle adjustments. Poly bushings, bind-free rod ends.

Details

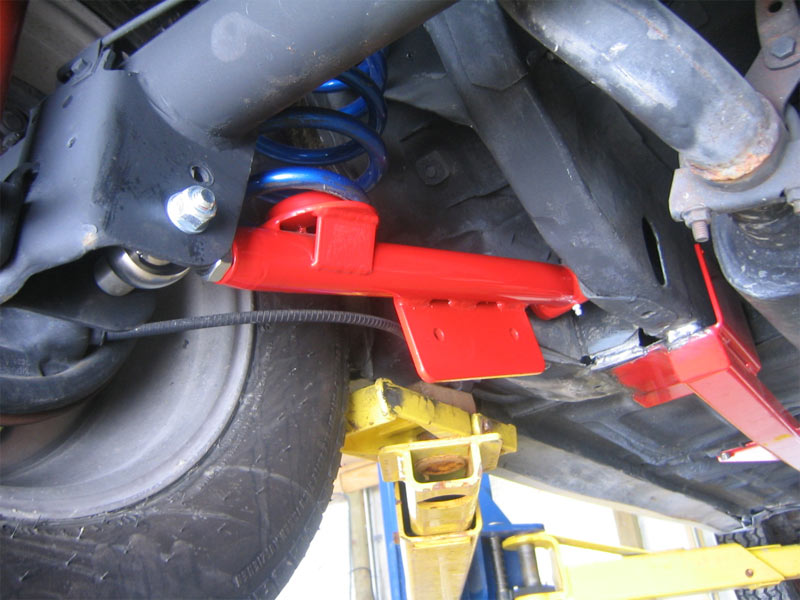

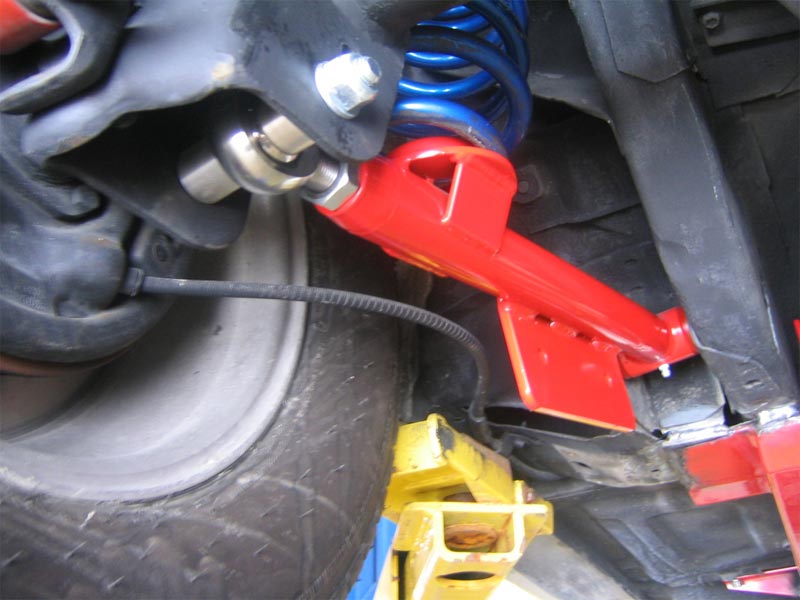

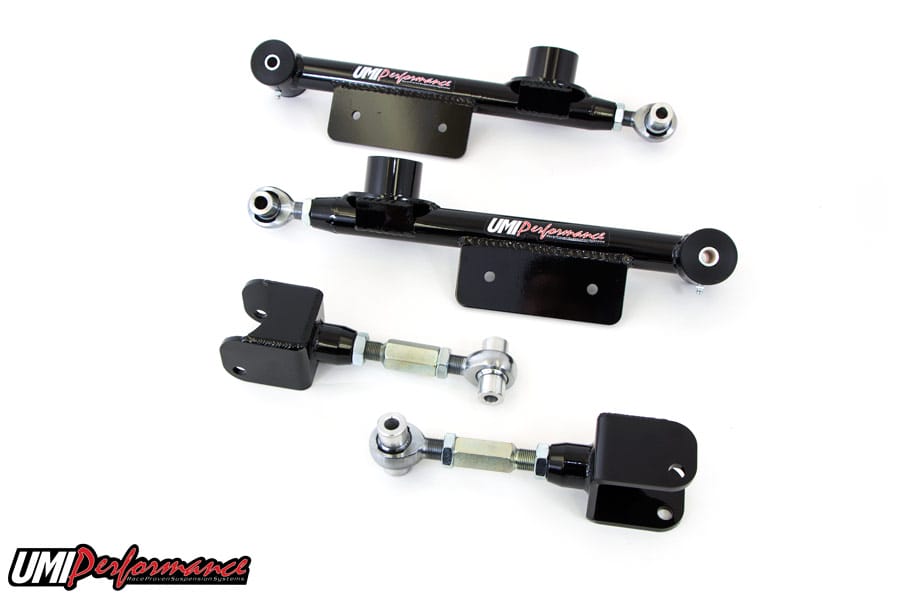

The complete kit includes a set of UMI single adjustable lower control arms and a set of UMI’s "on-car" double adjustable upper control arms. These direct bolt-on replacements are designed to minimize wheel hop, improve cornering, lower ET's, and enhance track consistency. The upper control arms feature on-car adjustability for quick and easy pinion angle adjustment. The spherical rod end allows for a “bind free” operation, making it a great upgrade for both track and auto cross vehicles. The polyurethane bushings provide a quiet and comfortable operation when bolted to the chassis. The lower control arms are constructed from DOM mild steel tubing with a 0.120” wall thickness and 4130 chrome moly threaded tube adaptors. The upper control arms feature 0.250” mild steel mounting points, 4130 chrome moly tube adaptors, and 4140 chrome moly heat treated 1.120” solid adjusters. Both control arms feature polyurethane bushings, zinc plated steel sleeves, and “on-car” greaseable zerk grease fittings, as well as high-quality Teflon lined spherical rod ends for quiet and bind-free performance. The installation is easy with bolt-on installation in about 1 hour without any drilling required. OEM hardware can be used for installation.

Description

UMI adjustable upper & lower control arms: bolt-on, poly bushings, 1-hr install.

Short Description

Control Arms Kit

Application Summary

UMI designed 101517 to fit 1979-1998 Ford Mustang

Features

• Single adjustable lower control arms
• "On-car" double adjustable upper control arms
• Minimize wheel hop
• Improve cornering
• Lower ET's
• Improve track consistency
• On-car adjustability for quick pinion angle adjustment
• Bind-free operation with spherical rod end
• Polyurethane bushings for quiet, comfortable operation
• Lower control arms made of DOM mild steel tubing
• Upper control arms feature 0.250” mild steel mounting points
• High Quality polyurethane bushings
• Zinc plated steel sleeves
• Greaseable zerk grease fittings
• Reinforced spring perches and heavy-duty sway bar mounting points
• Easy bolt-on installation in about 1 hour
• Uses OEM hardware
