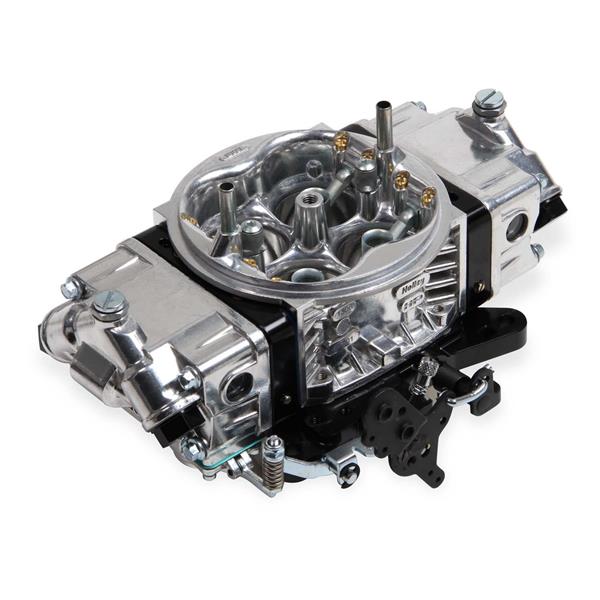

750 CFM Track Warrior Carburetor
Mechanical Secondary-Black-4150

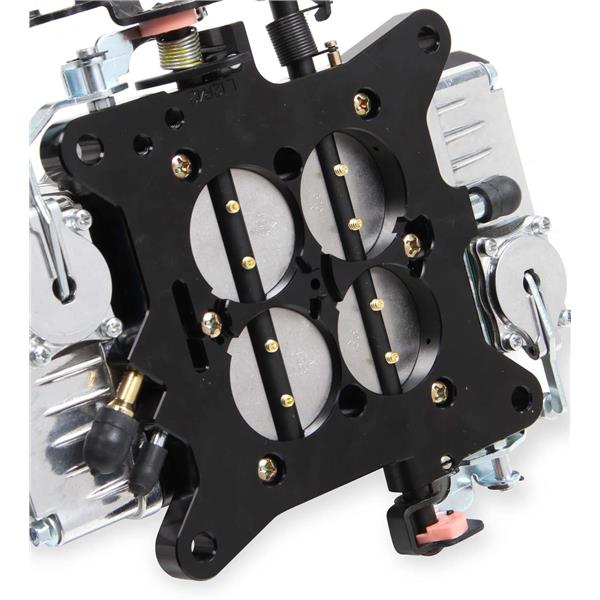

Holley is proud to introduce the all new aluminum Track Warrior carburetors. They utilize the best features from Holley's Race Bred Classic 4150 HP carbs, and we have added billet metering blocks, billet base plate, and knurled (hand adjustable) curb idle screws. The Track Warrior features an aluminum contoured main body design and has screw in air bleeds for precision tuning capabilities. The all new aluminum Track Warrior weighs up to 40% less and adds horsepower and torque, pushing on the track performance to the next level!!
Features:
- Aluminum construction for weight savings and long lasting good looks in purple or black
- Optimized race calibrations for outstanding throttle response

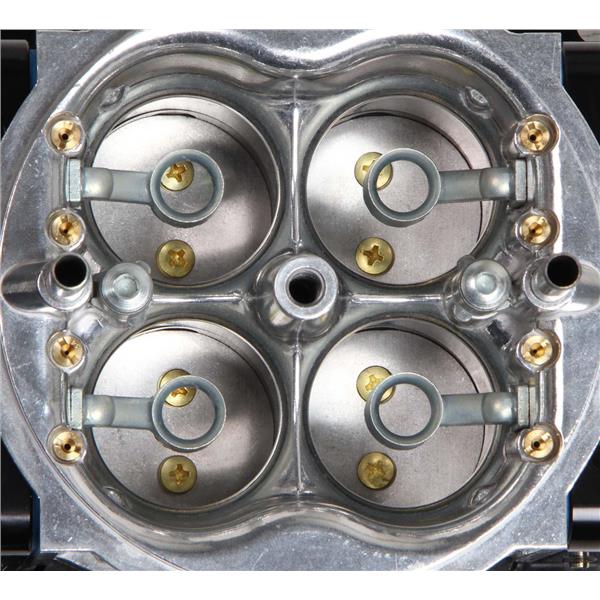

- Contoured venturi inlet offers balanced airflow for increased horsepower
- Screw in air bleeds for precision tuning capabilities
- Four corner idle for precise idle control
- Mechanical secondaries for awesome tire turning performance
- The billet metering blocks feature improved durability over cast blocks, true gasket sealing and fully adjustable (emulsion bleeds, power valve channel restrictors & idle feed restrictors)
- Available in 650, 750, and 850 CFM versions
- Intended for lightweight vehicles w/ manual trans or automatics with high stall & low gearing
- 100% wet-flow tested by Holley technicians to assure it arrives ready to run!
Installation Note:This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932.
Specifications:
- Barrels: 4
- Billet Color: Black
- Booster: Down Leg
- Brand: Holley
- Brand Family: Track Warrior
- CFM: 750
- Choke: None
- Emission Code: 3
- Finish: Shiny
- Fuel: Gasoline
- Fuel Inlet: Dual
- Fuel Type: Gasoline
- Material: Aluminum
- Model: 4150
- Primary Main Jet: 80
- Primary Power Valve: 6.5
- Primary Pump Nozzle Size: 31
- Product Type: 4150 Model Carburetor
- Secondaries: Mechanical
- Secondary Main Jet: 90
- Secondary Pump Nozzle Size: 31
- Supercharged Application: No
- Throttle Bore: 1.688 inch
- Venturii Size: 1.375 inch
- Warning: California Proposition 65
- Warranty: Limited 90 Day
