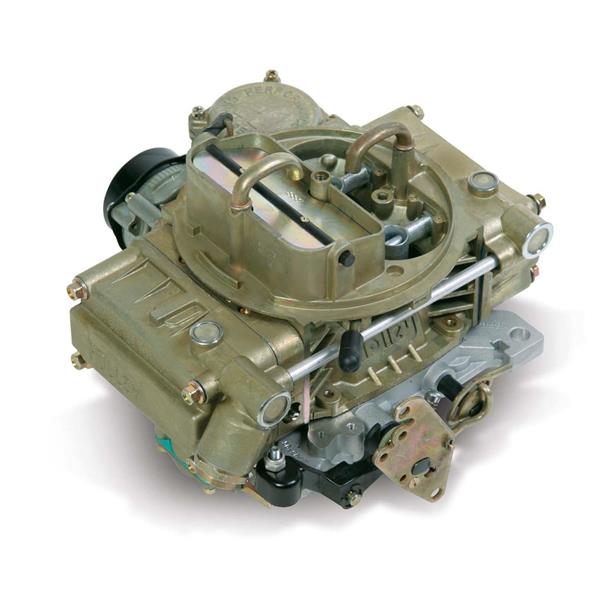

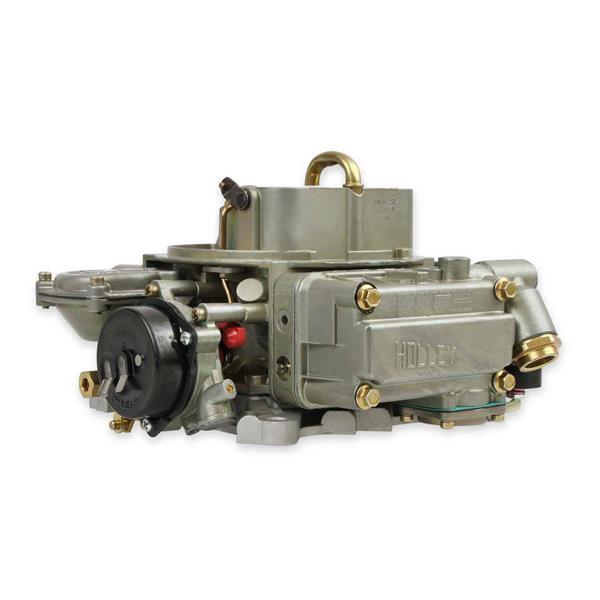

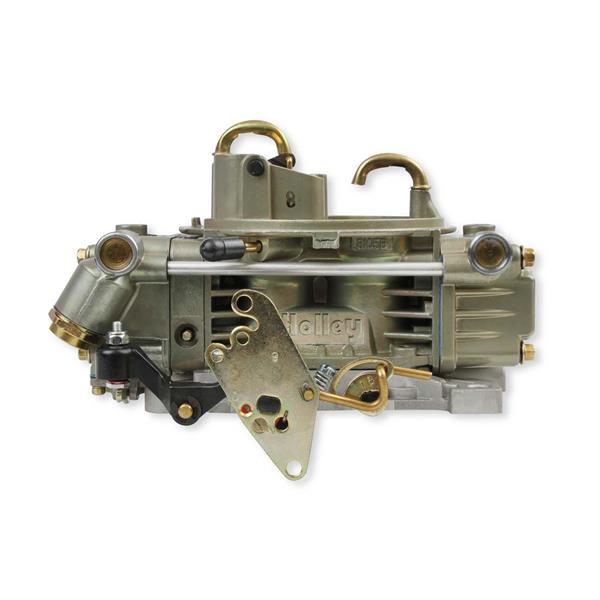

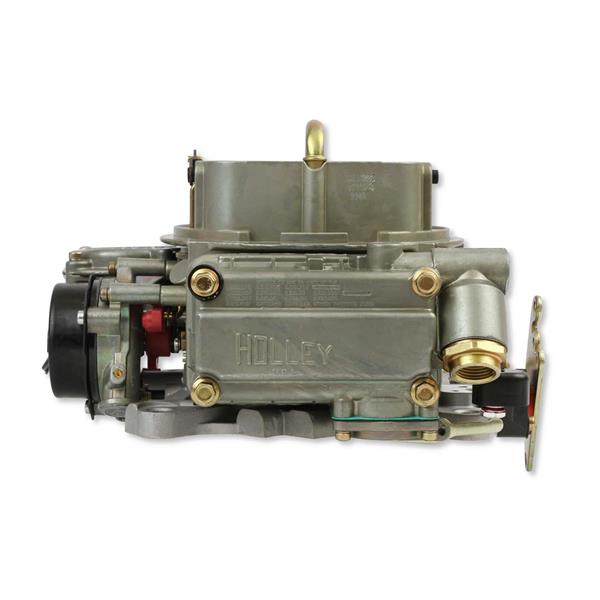

600 CFM Marine Carburetor
Electric Choke Vacuum Secondaries-4160
All Holley Marine Carburetors are designed to meet Coast Guard specifications. A marine carburetors fuel metering system is calibrated to compensate for unique engine loads found on boats. The J-style vent tubes direct fuel/fumes back into the carburetor for safe operation while on rough waters.
The Holley 0-80319-1 Marine carburetor is designed for Ford Marine 351 CID (5.8L) engines.
Features:
- Gold Dichromate finish for corrosion resistance and classic Holley looks
- Calibrated for Small Block 351CID (5.8 liter) Ford Marine Engines

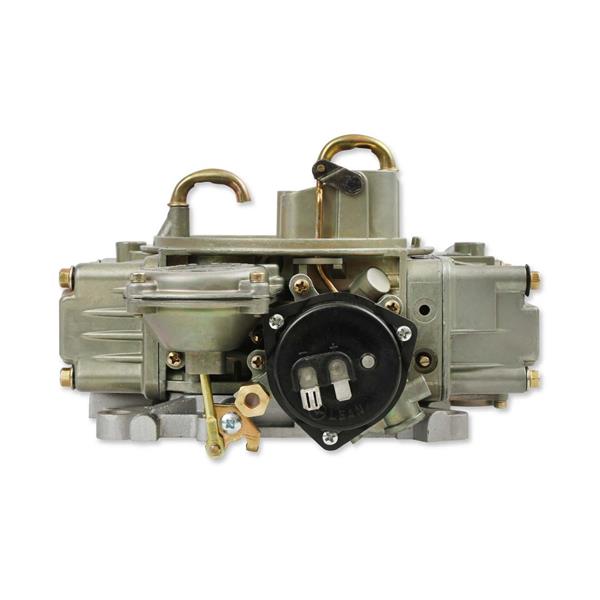

- Factory preset electric choke for easy startups
- Vacuum secondaries for use on wide variety of boats. Compensate for all weights to allow smooth opening of secondaries.
- 30cc Accelerator pump for smooth starts
- Single feed fuel inlet for easy installation

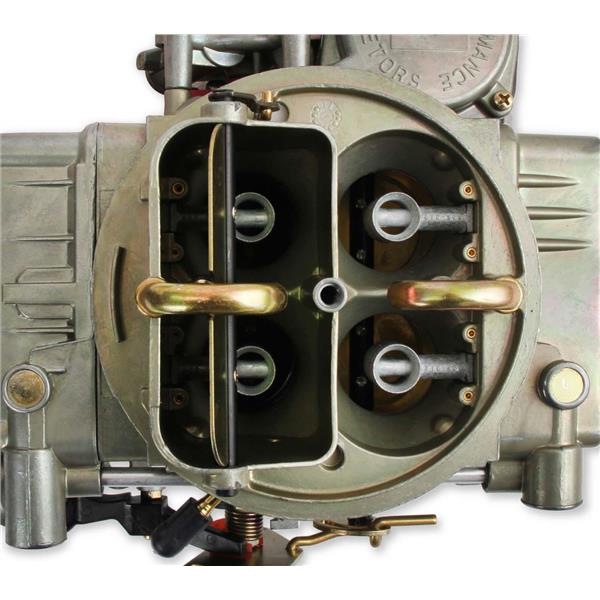

- J-Style Vent Tubes
- Meets Coast Guard Specifications
- Power valve blow-out protection
- 100% wet-flow tested by Holley technicians to assure it arrives ready to run!

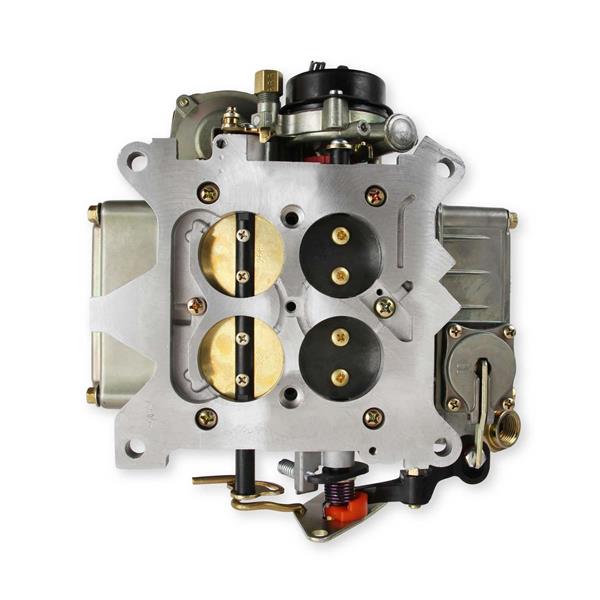

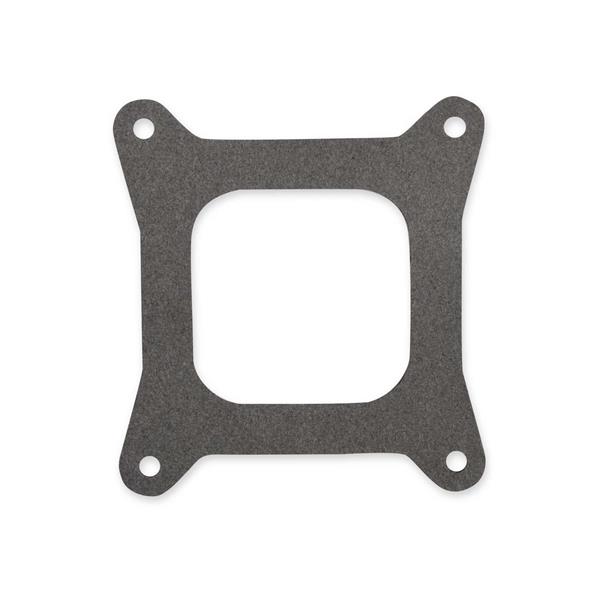

Installation Note:This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932.
Specifications:
- Barrels: 4
- Booster: Straight
- Brand: Holley
- CFM: 600
- Choke: Electric
- Emission Code: 3
- Finish: Gold Dichromate
- Fuel: Gasoline
- Fuel Inlet: Single
- Marine Engine Size: Ford 351 CID 5.8L
- Material: Zinc
- Model: 4160
- Primary Main Jet: 65
- Primary Power Valve: 2.5
- Primary Pump Nozzle Size: 25
- Product Type: Carburetor
- Secondaries: Vacuum
- Supercharged Application: No
- Throttle Bore: 1.563 inch
- Warning: California Proposition 65
- Warranty: Limited 90 Day
