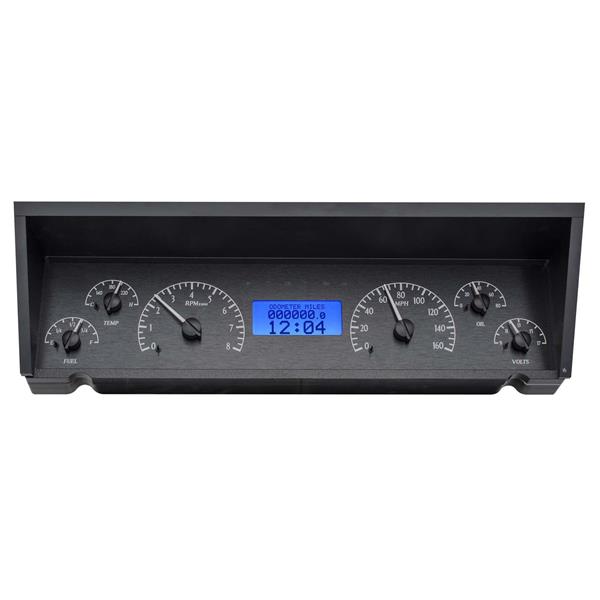

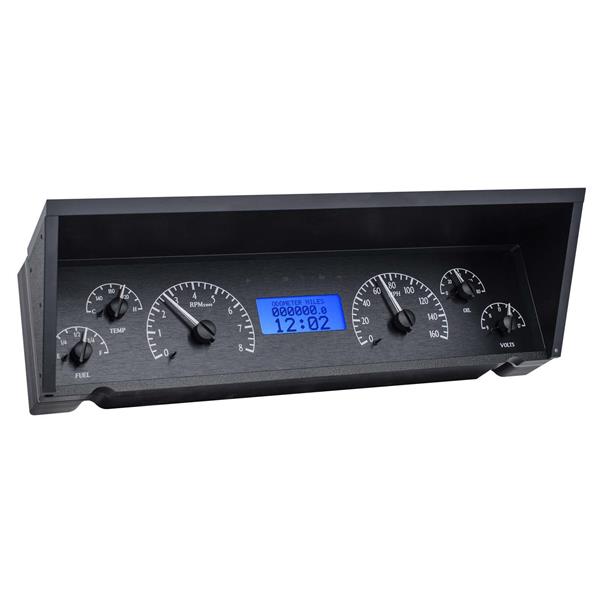

Dakota Digital 77 - 90 Chevy Impala / Caprice VHX Analog Dash System Black Alloy Blue VHX-77C-CAP-K-

$926.25
SKU: VHX-77C-CAP-K-B

Availability: In stock

Handling Time: 30 Days

Details

To make sure you receive your package, all items $500 and over are sent signature required

Made in the USA!

Dakota Digital 1956 Ford Car Analog Gauges Black Alloy Blue VHX-56F-K-B

Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday's traditional approach to instrumentation. A few of the features which you don't normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems . Completely engineered and manufactured at our facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!

The new VHX Systems fit directly into the stock dash of a 1956 Ford Car without modification.

Speedometer/Tachometer measures 5.07" overall, 4.72" cutout

Satellite gauges measure 2.675" overall, 2.47" cutout

*Cast metal dash bezel not included

Please CLICK HERE to see all the color options for this item!

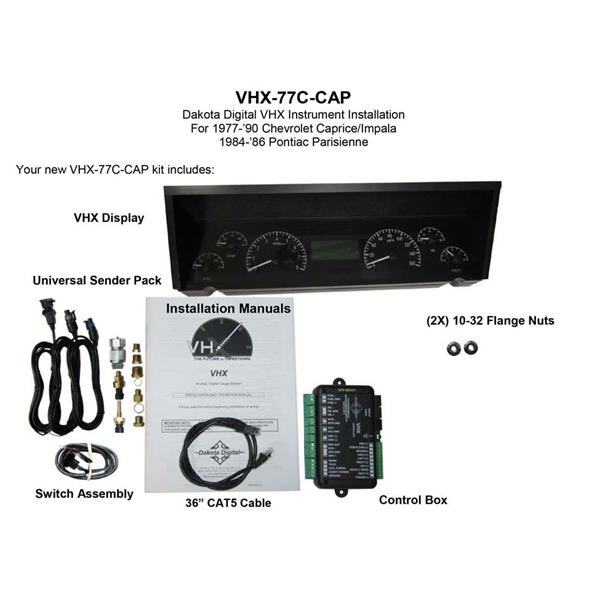

VHX System Includes:

Analog Gauges

Speedometer - 0-160 MPH (optional metric version 0-255 kmh)
Tachometer - 0-8000 RPM
Oil Pressure - 0-80 psi
Water Temperature - 100-260F (optional metric version 40-120C)
Fuel Level - E, 1/4, 1/2, 3/4, F (uses your factory Fuel Sending Unit, or you can purchase a generic SEN-06-1)
Voltmeter - 9-17 VDC

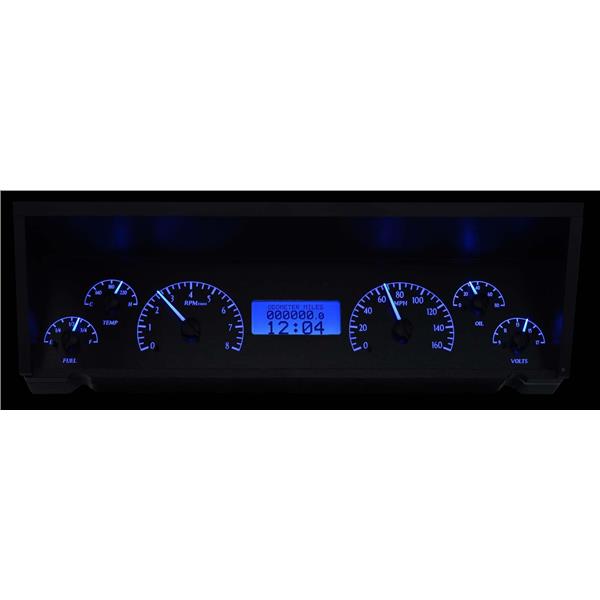

Lighting - Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face.

Digital Message Center

Standard Displays:

Odometer (One time user settable, Million Mile)
Dual (A/B) Trip Meter (0-9,999.9)
Clock (12 hour)

Performance Meters:

0-60 MPH Timer (0-100 kmh)
1/4 mile time
1/4 mile end speed (trap speed)
High speed recall
High RPM recall

Gauges:

Speedometer (0-255 MPH / KM/H)
Tachometer (0-9,990 RPM)
Oil Pressure (0-100 psi displayed in 1 psi increments)
Water Temperature (100-300F / 40-150C displayed in 1F/C increments)
Voltmeter (9-17 VDC)
Fuel Level (0-99% full)

Lighting:

Auto-contrasting LCD display for optimal view in the brightest of sunlight.
LED backlit at night to match/complete the look at night.

Built-In Indicators

Turn Signals (Left/ Right)
High Beam
Check Engine
Parking Brake
Cruise Control (On/ On & Engaged when vehicle is equipped)
Gear Position (Optional GSS-3000 sensor required, sold separately)
4 x 4 (When vehicle is equipped)
Wait to Start (When vehicle is equipped)

Included Sensors:

Water Temperature - 1/8" NPT, ground isolated sensor with a 10 ft harness.

Oil Pressure - 1/8" NPT solid state sensor with a 10 ft harness.

Cable Drive Speed Sensor/Generator - Replaces GM style speedometer cables with a 10 ft harness (Tremec and Ford style adapters available upon request).

Bushings - Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

Calibration

Pushbutton - Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.

Metric system (KM/H and degrees Celsius) is available as a custom option (no additional cost) but may take 4-8 weeks to build.

Although Dakota Digital instrument systems are programmable for both day and night intensity levels, the DIM-1 will allow rotary, or on-the-fly brightness adjustment added convenience.

Dakota Digital is proud to introduce the BIM Expansion modules for Dakota Digital VFD, VHX and HDX instrument systems. The introduction of the Dakota Digital BIM modules allow you to add up to an additional 16 gauges, that's right we said SIXTEEN specialty gauges to your vehicle without the need to cut extra holes in the dash or installing pillar and pod mounts to your columns or under the dash.

CLICK HERE - to see all of the Upgrade Options!

Fitment Details

Year Make Model Trim Engine Notes
1977 Chevrolet Caprice Classic Coupe 2-Door 4.1L 250Cu. In. l6 GAS OHV Naturally Aspirated
1977 Chevrolet Caprice Classic Sedan 4-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1977 Chevrolet Caprice Classic Estate Wagon 4-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1977 Chevrolet Caprice Classic Sedan 4-Door 4.1L 250Cu. In. l6 GAS OHV Naturally Aspirated
1977 Chevrolet Caprice Classic Landau Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1977 Chevrolet Caprice Classic Landau Coupe 2-Door 4.1L 250Cu. In. l6 GAS OHV Naturally Aspirated
1977 Chevrolet Caprice Classic Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1978 Chevrolet Caprice Classic Wagon 4-Door 4.1L 250Cu. In. l6 GAS OHV Naturally Aspirated
1978 Chevrolet Caprice Classic Sedan 4-Door 4.1L 250Cu. In. l6 GAS OHV Naturally Aspirated
1978 Chevrolet Caprice Classic Landau Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1978 Chevrolet Caprice Classic Coupe 2-Door 4.1L 250Cu. In. l6 GAS OHV Naturally Aspirated
1978 Chevrolet Caprice Classic Sedan 4-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1978 Chevrolet Caprice Classic Landau Coupe 2-Door 4.1L 250Cu. In. l6 GAS OHV Naturally Aspirated
1978 Chevrolet Caprice Classic Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1978 Chevrolet Caprice Classic Wagon 4-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1978 Chevrolet Caprice Classic Estate Wagon 4-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1979 Chevrolet Caprice Classic Wagon 4-Door 4.1L 250Cu. In. l6 GAS OHV Naturally Aspirated
1979 Chevrolet Caprice Classic Sport Coupe 2-Door 4.1L 250Cu. In. l6 GAS OHV Naturally Aspirated
1979 Chevrolet Caprice Classic Sport Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1979 Chevrolet Caprice Classic Landau Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1979 Chevrolet Caprice Classic Sedan 4-Door 4.1L 250Cu. In. l6 GAS OHV Naturally Aspirated
1979 Chevrolet Caprice Classic Landau Coupe 2-Door 4.1L 250Cu. In. l6 GAS OHV Naturally Aspirated
1979 Chevrolet Caprice Classic Sedan 4-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1979 Chevrolet Caprice Classic Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1979 Chevrolet Caprice Classic Wagon 4-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1979 Chevrolet Caprice Classic Coupe 2-Door 4.1L 250Cu. In. l6 GAS OHV Naturally Aspirated
1980 Chevrolet Caprice Classic Wagon 4-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1980 Chevrolet Caprice Classic Landau Coupe 2-Door 4.4L 267Cu. In. V8 GAS OHV Naturally Aspirated
1980 Chevrolet Caprice Classic Sport Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1980 Chevrolet Caprice Classic Sport Coupe 2-Door 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated
1980 Chevrolet Caprice Classic Sedan 4-Door 3.8L 229Cu. In. V6 GAS OHV Naturally Aspirated
1980 Chevrolet Caprice Classic Wagon 4-Door 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated
1980 Chevrolet Caprice Classic Sedan 4-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1980 Chevrolet Caprice Classic Landau Coupe 2-Door 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated
1980 Chevrolet Caprice Classic Wagon 4-Door 3.8L 229Cu. In. V6 GAS OHV Naturally Aspirated
1980 Chevrolet Caprice Classic Sport Coupe 2-Door 3.8L 229Cu. In. V6 GAS OHV Naturally Aspirated
1980 Chevrolet Caprice Classic Sedan 4-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1980 Chevrolet Caprice Classic Sedan 4-Door 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated
1980 Chevrolet Caprice Classic Sedan 4-Door 4.4L 267Cu. In. V8 GAS OHV Naturally Aspirated
1980 Chevrolet Caprice Classic Wagon 4-Door 4.4L 267Cu. In. V8 GAS OHV Naturally Aspirated
1980 Chevrolet Caprice Classic Sport Coupe 2-Door 4.4L 267Cu. In. V8 GAS OHV Naturally Aspirated
1980 Chevrolet Caprice Classic Landau Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1980 Chevrolet Caprice Classic Wagon 4-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1980 Chevrolet Caprice Classic Sport Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1980 Chevrolet Caprice Classic Landau Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1980 Chevrolet Caprice Classic Landau Coupe 2-Door 3.8L 229Cu. In. V6 GAS OHV Naturally Aspirated
1981 Chevrolet Caprice Classic Wagon 4-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1981 Chevrolet Caprice Classic Landau Coupe 2-Door 4.4L 267Cu. In. V8 GAS OHV Naturally Aspirated
1981 Chevrolet Caprice Classic Landau Coupe 2-Door 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated
1981 Chevrolet Caprice Classic Wagon 4-Door 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated
1981 Chevrolet Caprice Classic Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1981 Chevrolet Caprice Classic Coupe 2-Door 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated
1981 Chevrolet Caprice Classic Wagon 4-Door 4.4L 267Cu. In. V8 GAS OHV Naturally Aspirated
1981 Chevrolet Caprice Classic Estate Wagon 4-Door 4.4L 267Cu. In. V8 GAS OHV Naturally Aspirated
1981 Chevrolet Caprice Classic Wagon 4-Door 3.8L 229Cu. In. V6 GAS OHV Naturally Aspirated
1981 Chevrolet Caprice Classic Coupe 2-Door 3.8L 229Cu. In. V6 GAS OHV Naturally Aspirated
1981 Chevrolet Caprice Classic Sedan 4-Door 4.4L 267Cu. In. V8 GAS OHV Naturally Aspirated
1981 Chevrolet Caprice Classic Estate Wagon 4-Door 3.8L 229Cu. In. V6 GAS OHV Naturally Aspirated
1981 Chevrolet Caprice Classic Coupe 2-Door 4.4L 267Cu. In. V8 GAS OHV Naturally Aspirated
1981 Chevrolet Caprice Classic Sedan 4-Door 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated
1981 Chevrolet Caprice Classic Landau Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1981 Chevrolet Caprice Classic Sedan 4-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1981 Chevrolet Caprice Classic Landau Coupe 2-Door 3.8L 229Cu. In. V6 GAS OHV Naturally Aspirated
1981 Chevrolet Caprice Classic Sedan 4-Door 3.8L 229Cu. In. V6 GAS OHV Naturally Aspirated
1981 Chevrolet Caprice Classic Estate Wagon 4-Door 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated
1981 Chevrolet Caprice Classic Estate Wagon 4-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1982 Chevrolet Caprice Classic Coupe 2-Door 3.8L 229Cu. In. V6 GAS OHV Naturally Aspirated
1982 Chevrolet Caprice Classic Wagon 4-Door 3.8L 229Cu. In. V6 GAS OHV Naturally Aspirated
1982 Chevrolet Caprice Classic Wagon 4-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1982 Chevrolet Caprice Classic Estate Wagon 4-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1982 Chevrolet Caprice Classic Estate Wagon 4-Door 3.8L 229Cu. In. V6 GAS OHV Naturally Aspirated
1982 Chevrolet Caprice Classic Coupe 2-Door 4.4L 267Cu. In. V8 GAS OHV Naturally Aspirated
1982 Chevrolet Caprice Classic Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1982 Chevrolet Caprice Classic Estate Wagon 4-Door 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated
1982 Chevrolet Caprice Classic Coupe 2-Door 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated
1982 Chevrolet Caprice Classic Wagon 4-Door 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated
1982 Chevrolet Caprice Classic Estate Wagon 4-Door 4.4L 267Cu. In. V8 GAS OHV Naturally Aspirated
1982 Chevrolet Caprice Classic Sedan 4-Door 3.8L 229Cu. In. V6 GAS OHV Naturally Aspirated
1982 Chevrolet Caprice Classic Wagon 4-Door 4.4L 267Cu. In. V8 GAS OHV Naturally Aspirated
1982 Chevrolet Caprice Classic Sedan 4-Door 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated
1982 Chevrolet Caprice Classic Sedan 4-Door 4.4L 267Cu. In. V8 GAS OHV Naturally Aspirated
1982 Chevrolet Caprice Classic Sedan 4-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1983 Chevrolet Caprice Classic Sedan 4-Door 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated
1983 Chevrolet Caprice Classic Wagon 4-Door 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated
1983 Chevrolet Caprice Classic Wagon 4-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1983 Chevrolet Caprice Classic Sedan 4-Door 3.8L 229Cu. In. V6 GAS OHV Naturally Aspirated
1983 Chevrolet Caprice Classic Wagon 4-Door 3.8L 229Cu. In. V6 GAS OHV Naturally Aspirated
1983 Chevrolet Caprice Classic Sedan 4-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1984 Chevrolet Caprice Classic Coupe 2-Door 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated
1984 Chevrolet Caprice Classic Sedan 4-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1984 Chevrolet Caprice Classic Wagon 4-Door 3.8L 229Cu. In. V6 GAS OHV Naturally Aspirated
1984 Chevrolet Caprice Classic Sedan 4-Door 3.8L 229Cu. In. V6 GAS OHV Naturally Aspirated
1984 Chevrolet Caprice Classic Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1984 Chevrolet Caprice Classic Wagon 4-Door 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated
1984 Chevrolet Caprice Classic Sedan 4-Door 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated
1984 Chevrolet Caprice Classic Coupe 2-Door 3.8L 229Cu. In. V6 GAS OHV Naturally Aspirated
1984 Chevrolet Caprice Classic Wagon 4-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1985 Chevrolet Caprice Classic Wagon 4-Door 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated
1985 Chevrolet Caprice Base Sedan 4-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1985 Chevrolet Caprice Classic Sedan 4-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1985 Chevrolet Caprice Classic Wagon 4-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1985 Chevrolet Caprice Classic Sedan 4-Door 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated
1985 Chevrolet Caprice Classic Coupe 2-Door 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated
1985 Chevrolet Caprice Classic Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1986 Chevrolet Caprice Classic Wagon 4-Door 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated
1986 Chevrolet Caprice Classic Coupe 2-Door 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated
1986 Chevrolet Caprice Base Sedan 4-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1986 Chevrolet Caprice Classic Brougham Sedan 4-Door 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated
1986 Chevrolet Caprice Classic Sedan 4-Door 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated
1987 Chevrolet Caprice Base Wagon 4-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1987 Chevrolet Caprice Base Sedan 4-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1987 Chevrolet Caprice Base Wagon 4-Door 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated
1987 Chevrolet Caprice Classic Coupe 2-Door 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated
1987 Chevrolet Caprice Classic Wagon 4-Door 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated
1987 Chevrolet Caprice Classic Sedan 4-Door 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated
1987 Chevrolet Caprice Base Sedan 4-Door 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated
1988 Chevrolet Caprice Base Sedan 4-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1988 Chevrolet Caprice Classic Wagon 4-Door 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated
1988 Chevrolet Caprice Classic Sedan 4-Door 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated
1988 Chevrolet Caprice Base Wagon 4-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1989 Chevrolet Caprice Base Sedan 4-Door 5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated
1989 Chevrolet Caprice Classic Brougham Sedan 4-Door 5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated
1989 Chevrolet Caprice Classic Sedan 4-Door 5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated
1989 Chevrolet Caprice Classic Wagon 4-Door 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated
1989 Chevrolet Caprice Classic Sedan 4-Door 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated
1989 Chevrolet Caprice Classic Wagon 4-Door 5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated
1989 Chevrolet Caprice Base Sedan 4-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1989 Chevrolet Caprice Classic LS Brougham Sedan 4-Door 5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated
1990 Chevrolet Caprice Classic Wagon 4-Door 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated
1990 Chevrolet Caprice Classic Sedan 4-Door 5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated
1990 Chevrolet Caprice Classic Sedan 4-Door 5.0L 307Cu. In. V8 GAS OHV Naturally Aspirated
1990 Chevrolet Caprice Classic Wagon 4-Door 5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated
1990 Chevrolet Caprice Classic LS Brougham Sedan 4-Door 5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated
1990 Chevrolet Caprice Base Sedan 4-Door 5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated
1990 Chevrolet Caprice Classic Brougham Sedan 4-Door 5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated
1990 Chevrolet Caprice Base Sedan 4-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1977 Chevrolet Impala Custom Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1977 Chevrolet Impala Custom Coupe 2-Door 4.1L 250Cu. In. l6 GAS OHV Naturally Aspirated
1977 Chevrolet Impala Landau Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1977 Chevrolet Impala Landau Coupe 2-Door 4.1L 250Cu. In. l6 GAS OHV Naturally Aspirated
1977 Chevrolet Impala Base Wagon 4-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1977 Chevrolet Impala Base Sedan 4-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1977 Chevrolet Impala Base Sedan 4-Door 4.1L 250Cu. In. l6 GAS OHV Naturally Aspirated
1977 Chevrolet Impala Base Wagon 4-Door 4.1L 250Cu. In. l6 GAS OHV Naturally Aspirated
1978 Chevrolet Impala Base Sedan 4-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1978 Chevrolet Impala Landau Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1978 Chevrolet Impala Base Wagon 4-Door 4.1L 250Cu. In. l6 GAS OHV Naturally Aspirated
1978 Chevrolet Impala Base Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1978 Chevrolet Impala Base Coupe 2-Door 4.1L 250Cu. In. l6 GAS OHV Naturally Aspirated
1978 Chevrolet Impala Landau Coupe 2-Door 4.1L 250Cu. In. l6 GAS OHV Naturally Aspirated
1978 Chevrolet Impala Base Sedan 4-Door 4.1L 250Cu. In. l6 GAS OHV Naturally Aspirated
1978 Chevrolet Impala Base Wagon 4-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1979 Chevrolet Impala Base Wagon 4-Door 4.1L 250Cu. In. l6 GAS OHV Naturally Aspirated
1979 Chevrolet Impala Sport Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1979 Chevrolet Impala Base Sedan 4-Door 4.1L 250Cu. In. l6 GAS OHV Naturally Aspirated
1979 Chevrolet Impala Base Sedan 4-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1979 Chevrolet Impala Landau Coupe 2-Door 4.1L 250Cu. In. l6 GAS OHV Naturally Aspirated
1979 Chevrolet Impala Landau Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1979 Chevrolet Impala Base Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1979 Chevrolet Impala Base Coupe 2-Door 4.1L 250Cu. In. l6 GAS OHV Naturally Aspirated
1979 Chevrolet Impala Base Wagon 4-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1979 Chevrolet Impala Sport Coupe 2-Door 4.1L 250Cu. In. l6 GAS OHV Naturally Aspirated
1980 Chevrolet Impala Base Sedan 4-Door 4.4L 267Cu. In. V8 GAS OHV Naturally Aspirated
1980 Chevrolet Impala Base Wagon 4-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1980 Chevrolet Impala Base Wagon 4-Door 4.4L 267Cu. In. V8 GAS OHV Naturally Aspirated
1980 Chevrolet Impala Sport Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1980 Chevrolet Impala Base Wagon 4-Door 3.8L 229Cu. In. V6 GAS OHV Naturally Aspirated
1980 Chevrolet Impala Sport Coupe 2-Door 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated
1980 Chevrolet Impala Base Sedan 4-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1980 Chevrolet Impala Base Sedan 4-Door 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated
1980 Chevrolet Impala Base Sedan 4-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1980 Chevrolet Impala Base Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1980 Chevrolet Impala Sport Coupe 2-Door 3.8L 229Cu. In. V6 GAS OHV Naturally Aspirated
1980 Chevrolet Impala Sport Coupe 2-Door 4.4L 267Cu. In. V8 GAS OHV Naturally Aspirated
1980 Chevrolet Impala Base Coupe 2-Door 4.4L 267Cu. In. V8 GAS OHV Naturally Aspirated
1980 Chevrolet Impala Base Coupe 2-Door 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated
1980 Chevrolet Impala Sport Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1980 Chevrolet Impala Base Wagon 4-Door 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated
1980 Chevrolet Impala Base Sedan 4-Door 3.8L 229Cu. In. V6 GAS OHV Naturally Aspirated
1980 Chevrolet Impala Base Coupe 2-Door 3.8L 229Cu. In. V6 GAS OHV Naturally Aspirated
1980 Chevrolet Impala Base Wagon 4-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1980 Chevrolet Impala Base Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1981 Chevrolet Impala Estate Wagon 4-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1981 Chevrolet Impala Base Sedan 4-Door 3.8L 229Cu. In. V6 GAS OHV Naturally Aspirated
1981 Chevrolet Impala Estate Wagon 4-Door 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated
1981 Chevrolet Impala Base Coupe 2-Door 3.8L 229Cu. In. V6 GAS OHV Naturally Aspirated
1981 Chevrolet Impala Estate Wagon 4-Door 3.8L 229Cu. In. V6 GAS OHV Naturally Aspirated
1981 Chevrolet Impala Base Sedan 4-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1981 Chevrolet Impala Estate Wagon 4-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1981 Chevrolet Impala Base Sedan 4-Door 4.4L 267Cu. In. V8 GAS OHV Naturally Aspirated
1981 Chevrolet Impala Base Wagon 4-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1981 Chevrolet Impala Base Sedan 4-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1981 Chevrolet Impala Base Coupe 2-Door 4.4L 267Cu. In. V8 GAS OHV Naturally Aspirated
1981 Chevrolet Impala Base Sedan 4-Door 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated
1981 Chevrolet Impala Base Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1981 Chevrolet Impala Base Wagon 4-Door 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated
1981 Chevrolet Impala Base Wagon 4-Door 3.8L 229Cu. In. V6 GAS OHV Naturally Aspirated
1981 Chevrolet Impala Estate Wagon 4-Door 4.4L 267Cu. In. V8 GAS OHV Naturally Aspirated
1981 Chevrolet Impala Base Coupe 2-Door 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated
1981 Chevrolet Impala Base Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1981 Chevrolet Impala Base Wagon 4-Door 4.4L 267Cu. In. V8 GAS OHV Naturally Aspirated
1981 Chevrolet Impala Base Wagon 4-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1982 Chevrolet Impala Base Wagon 4-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1982 Chevrolet Impala Estate Wagon 4-Door 4.4L 267Cu. In. V8 GAS OHV Naturally Aspirated
1982 Chevrolet Impala Base Sedan 4-Door 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated
1982 Chevrolet Impala Base Wagon 4-Door 4.4L 267Cu. In. V8 GAS OHV Naturally Aspirated
1982 Chevrolet Impala Estate Wagon 4-Door 3.8L 229Cu. In. V6 GAS OHV Naturally Aspirated
1982 Chevrolet Impala Estate Wagon 4-Door 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated
1982 Chevrolet Impala Base Sedan 4-Door 4.4L 267Cu. In. V8 GAS OHV Naturally Aspirated
1982 Chevrolet Impala Base Wagon 4-Door 3.8L 229Cu. In. V6 GAS OHV Naturally Aspirated
1982 Chevrolet Impala Base Sedan 4-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1982 Chevrolet Impala Base Sedan 4-Door 3.8L 229Cu. In. V6 GAS OHV Naturally Aspirated
1982 Chevrolet Impala Estate Wagon 4-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1982 Chevrolet Impala Base Wagon 4-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1982 Chevrolet Impala Estate Wagon 4-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1982 Chevrolet Impala Base Sedan 4-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1982 Chevrolet Impala Base Wagon 4-Door 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated
1983 Chevrolet Impala Base Sedan 4-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1983 Chevrolet Impala Base Sedan 4-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1983 Chevrolet Impala Base Sedan 4-Door 3.8L 229Cu. In. V6 GAS OHV Naturally Aspirated
1983 Chevrolet Impala Base Sedan 4-Door 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated
1984 Chevrolet Impala Base Sedan 4-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1984 Chevrolet Impala Base Sedan 4-Door 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated
1984 Chevrolet Impala Base Sedan 4-Door 3.8L 229Cu. In. V6 GAS OHV Naturally Aspirated
1984 Chevrolet Impala Base Sedan 4-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1985 Chevrolet Impala Base Sedan 4-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1985 Chevrolet Impala Base Sedan 4-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1985 Chevrolet Impala Base Sedan 4-Door 5.7L 350Cu. In. V8 DIESEL OHV Naturally Aspirated
