Details

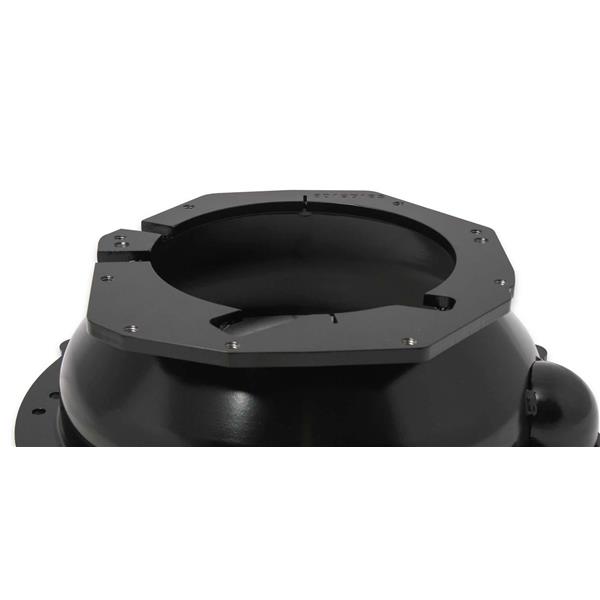

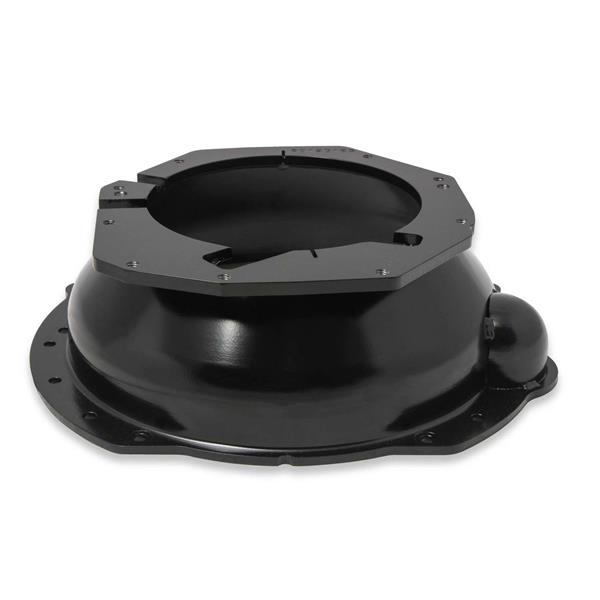

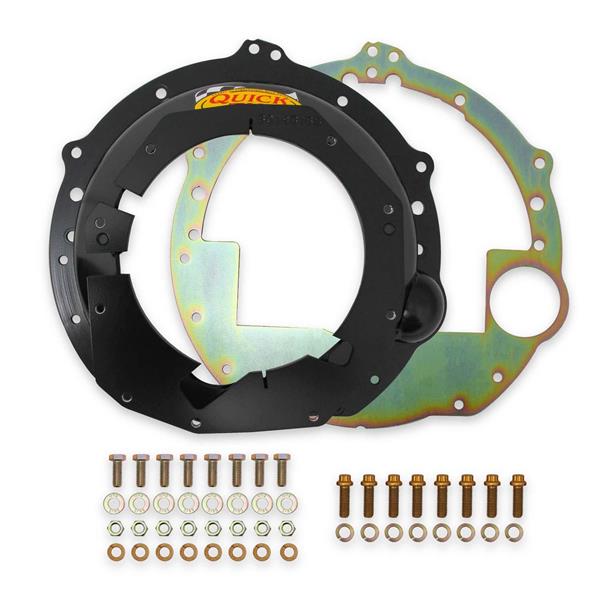

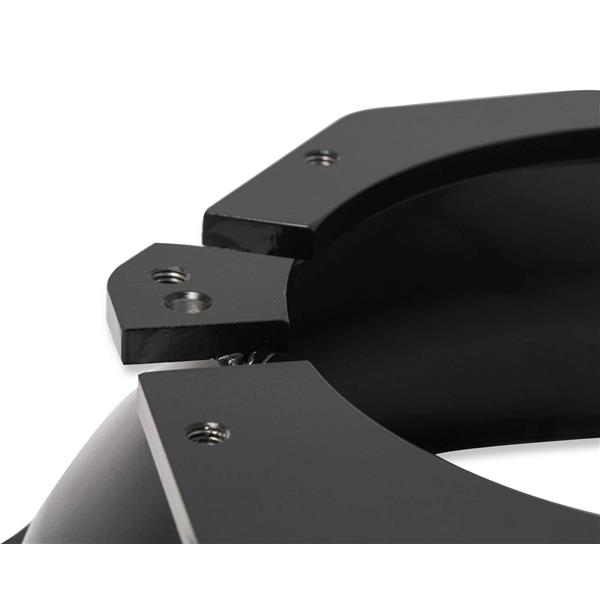

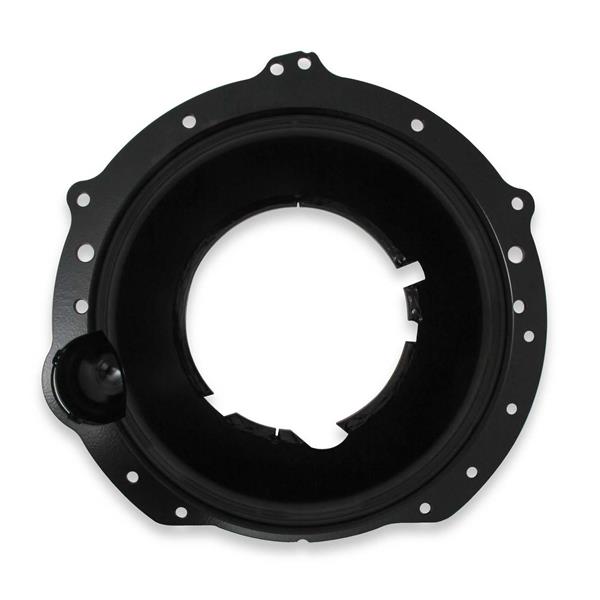

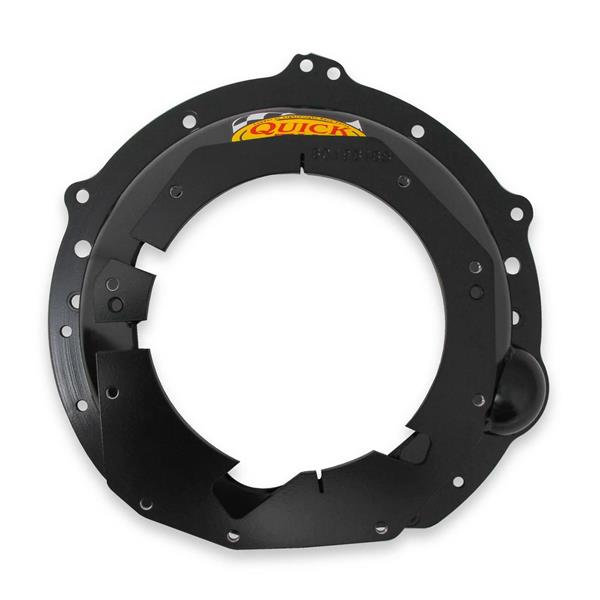

Quick Time Chevy LS and Late Model LT to LS T-56 Transmission - Low Profile Bellhousing
Designed to fit Gen 3 and 4 LS and Late Model LT1/4 (2014 €" Current) Engines utilizing an LS T-56 Transmission.

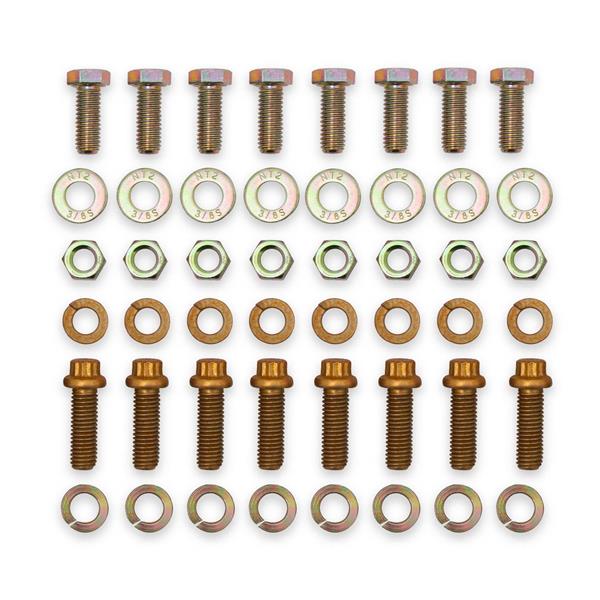

The Quick Time RM-8019 bellhousing connects Gen 3 and 4 LS and Late Model LT1/4 (2014 "Current) engines to T-56 Chevy LS, and T56 Magnum transmissions. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)
Features:
- Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
- QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
- Built from high grade steel "Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
- 100% built in the USA
- Patent on 16 points of Bellhousing Design & Process
Installation Note:
Specifications:
- Brand: Quick Time
- Certification: None
- Clutch Operation: Hydraulic
- Color: Black
- Emission Code: 5
- Engine: Chevy LT1
- Engine: Chevy LT4
- Engine: GM Small Block Gen III/IV (LS Based)
- Engine Make: Chevrolet

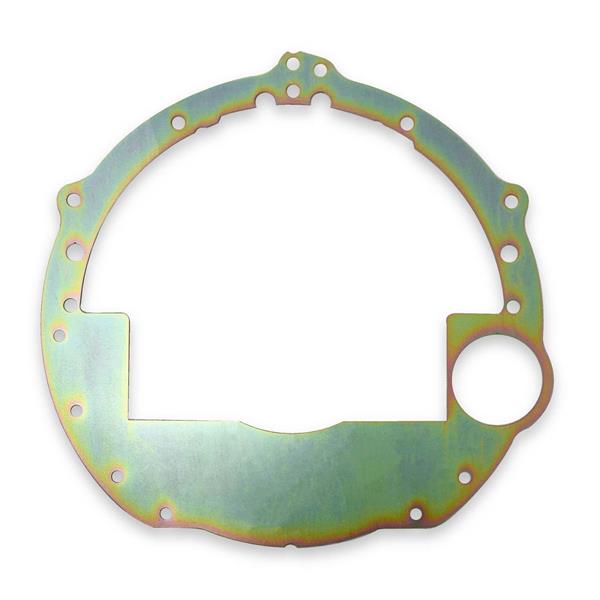

- Engine Plate: RM-6034-C
- Finish: Semi-gloss
- Flywheel: 168 Tooth
- Height: 5.500 inch
- Make: Chevrolet
- Material: Steel
- Product Type: Bellhousing
- Trans Bore: N/A
- Transmission: T56 GM
- Transmission: T56 Magnum
- Transmission Type: Manual
- Warranty: Limited 90 Day Warranty
- Weight: 20#
