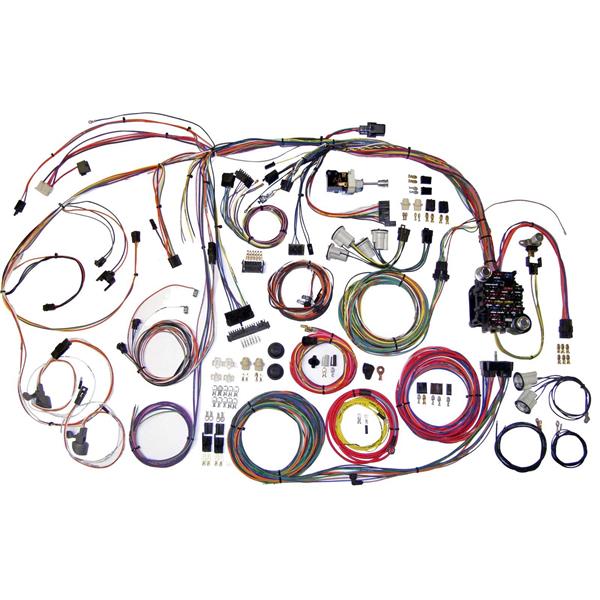

American Auto Wire 1970 - 1972 Chevelle Wiring Harness Kit # 510105

To make sure you receive your package, all items $500 and over are sent signature required

Classic Update Wiring Harness Kit

• Fits:
• 1970-1972 Chevrolet Chevelle
• 1970-1972 Chevrolet El Camaino
• Thevelle Wagon and El Camino Require additional Tail Light Harness: 510166

Please note: Classic Update Kits do not support Ammeters

Classic Update Kits give you one of the most complete kits on the market to "Make Wiring THAT Easy". They are designed for specific year, make, and model configurations. The kit boasts many features making it the most complete system of its type in the industry!

Kit Features:

1. OTE: If you have a Chevelle station wagon or an El Camino, you will need the 1968-1972 add-on kit in addition to the 70-72 Chevelle Classic Update kit.


2. The kit boasts 13 features making it the most complete system of its type in the industry including:


3. replacement headlight switch with internal 30amp circuit breaker, retention collar nut, adjustable length shaft, and custom knob.


4. Standard turn signal and hazard flashers are mounted on fuse panel. A new horn relay is mounted on the main dash harness.


5. Fuse box designed to fit in original location. All required hardware supplied. New ATO fuse panelallows for easy fuse and circuit breaker accessibility. Harness is laid out and formed to allow for nearly all after market accessories such as; gauge packages, wiper systems, heat and air conditioning systems, etc.


6. Original switch connector bodies - an American Autowire exclusive feature


7. Steering column connectors can plug directly into most aftermarket steering columns or stock 1970-72 GM columns that use stock GM turn signal switches.


8. Separate under dash courtesy lamps for use along with your original dome/interior lighting.


9. Instrument Cluster wiring is designed with a "cluster harness disconnect" system for easy service and assembly. Original terminals and connectors (another American Autowire exclusive) are provided for stock cluster connections. The system will also connect into most popular aftermarket gauges such as AUTOMETER, CLASSIC INSTRUMENTS, DAKOTA DIGITAL, STEWART WARNER, VDO and others.


10. Rear body harness assembly plugs into the main harness in the stock location and our longer leads allow for stock or custom routing of the wires. Rear body wiring includes backup light lead wires with correct lamp sockets, stop and tail light lead wires with correct lamp sockets, terminals to mate with the license plate connection wire, side marker lead and ground wires with lamp sockets, and fuel tank sender wire with trunk grommet and tank connection.


11. NEW floor dimmer switch is provided for ease of installation. Wire length and connection accommodate original floor mount dimmer switch.


12. GM bulkhead connectors for the engine and front light wiring are included (another American Autowire exclusive) and allow for easy installation with original or custom routing.


13. Engine wiring includes connectors for original points type as well as H.E.I. distributors. Power and tach connectors supplied for GM H.E.I. distributors. Alternator connectors are supplied for GM "SI" series internally regulated alternators. GM "CS" series alternator adapter is available separately.


14. Front lighting includes extra long leads that can be routed for stock or optional appearances. All headlight, parking and directional light connectors (lamp socket pigtails are also provided for 1971-72 applications) and terminals are provided along with a switched trigger wire for an electric fan relay (usually recommended with AC).


15. Original style light sockets, switch body connectors, terminals, etc. packed into every aspect of this harness help make it the most complete system of its type in the industry!

The early GM/FORD generators and externally regulated alternators are just not up to the task of providing power to an expanded wiring system like these classic update kits. The point of this kind of kit is really to allow people a way to upgrade and expand their wiring system and so an alternator upgrade is usually part and parcel to this kind of upgrade.

NOTE: These kits are recommended for MODIFIED original vehicles, not OEM restoration projects.

Note: This wiring is designed to work on Internally regulated alternator and have a 12v feed for the coil/distributor/ignition box. This kit IS NOT set up with a resistance wire for a standard, points type ignition system. It is wired with a full 12 volt primary ignition feed that is hot in both the start and run positions. It will support HEI, MSD, other electronic ignition systems, as well as computerized Fuel Injec- tion systems. If you wish to run a points type system, there are illustrations on the engine connection pages to do so. Extra parts that are not included in this kit will be required to complete that operation. (see our other items).
