American Auto Wire 1970 - 1973 Firebird Wiring Harness # 510174

To make sure you receive your package, all items $500 and over are sent signature required

This item will ship directly from American Auto Wire in New Jersey.

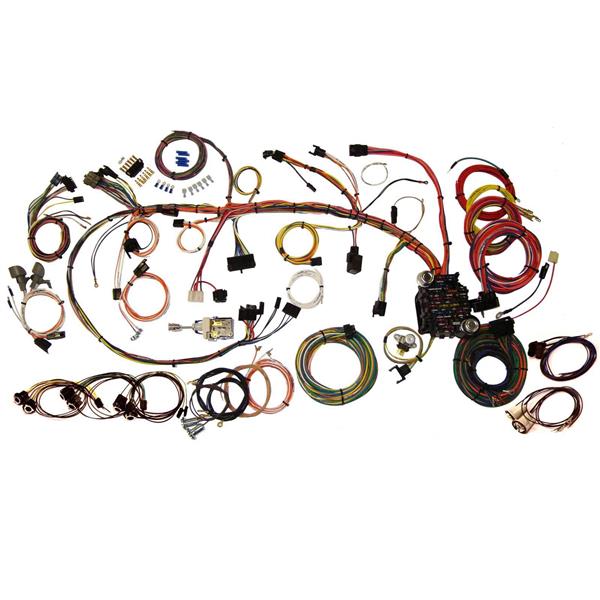

Classic Update Wiring Harness Kit

• Fits:
• 1970-1973 Pontiac Firebird

Please note: Classic Update Kits do not support Ammeters

Classic Update Kits give you one of the most complete kits on the market to "Make Wiring THAT Easy". They are designed for a specific year, make, and model configuration. The 1970-73 Firebird kit boasts 14 features that make it the most complete system of its type in the industry:

• Kit Features:
• eplacement headlight switch with internal 30amp circuit breaker included. Retention collar nut, adjustable length shaft, and custom knob are also included.


• Standard turn signal flasher, hazard flasher, and horn relay mounted remotely on harness.


• Fuse box designed to fit in original location. All required hardware supplied. New ATO fuse boxallows easy fuse and circuit breaker accessibility. Harnessallows for nearly all aftermarket accessories such as: gauge packages, wiper systems, heat and air conditioning systems, etc.


• Original switch connector bodies! (Exclusive to American Autowire)


• Steering column connectors will plug directly into most aftermarket steering columns as well as 1969 and later GM columns which utilize stock GM turn signal switches The original column can also be wired by using the supplied mating connector and terminals. Stock GM ignition switch connectors are provided.


• extra long wiring for your original dome/interior lighting we have included separate under dash light sockets.


• Bigh powered accessory plug for power windows, power locks, etc.


• Instrument Cluster wiring is designed with a "cluster harness disconnect" system for easy service and assembly. All original terminals, connectors (exclusively from American Autowire), light sockets, and correct printed circuit board connections are also supplied for original cluster gauges. However, the best aspect of the disconnect system is that any gauge cluster package can be easily and neatly wired in. This includes AUTOMETER, CLASSIC INSTRUMENTS, COVAN CLASSICS, DAKOTA DIGITAL, STEWART WARNER, and VDO just to name a few.


• Rear body harness assembly is designed to plug into the main harness in the original connector bodies. Flexibility in harness designallows for original or custom routing. Rear body wiring includes backup light wires and mating connectors for backup light leads. License plate lead, connectors, and terminals included. Fuel tank sender wire and terminal included.


• EXCLUSIVE! You?ll find all the original style light socket pigtails (including stop-tail and back-up lamp assemblies packed into every aspect of this system making it the most complete system of it?s type in the industry!


• NEW floor dimmer switch is provided. Wire length and connection accommodate original floor mount dimmer switch.


• EXCLUSIVE! Original bulkhead connector for the engine and front light wiring is included and ready for installation. Original routing of the new harness without any body modifications.


• Engine wiring includes connectors for original points type as well as HEI distributors. Power and tach connectors supplied for GM HEI distributors. Alternator connectors are supplied for GM "SI" series internally regulated alternators. GM "CS" series alternator adapter is available separately.


• Front lighting includes extra long leads for special routing when custom under hood appearance is desired. All headlight, park light and directional light connectors and terminals, correct printed circuit board connections, and sockets are provided, as well as a switched trigger wire for electric fan relay (usually recommended with AC).

The early GM/FORD generators and externally regulated alternators are just not up to the task of providing power to an expanded wiring system like these classic update kits. The point of this kind of kit is really to allow people a way to upgrade and expand their wiring system and so an alternator upgrade is usually part and parcel to this kind of upgrade.

NOTE: These kits are recommended for MODIFIED original vehicles, not OEM restoration projects.

Note: This wiring is designed to work on Internally regulated alternator and have a 12v feed for the coil/distributor/ignition box. This kit IS NOT set up with a resistance wire for a standard, points type ignition system. It is wired with a full 12 volt primary ignition feed that is hot in both the start and run positions. It will support HEI, MSD, other electronic ignition systems, as well as computerized Fuel Injec- tion systems. If you wish to run a points type system, there are illustrations on the engine connection pages to do so. Extra parts that are not included in this kit will be required to complete that operation. (see our other items).
