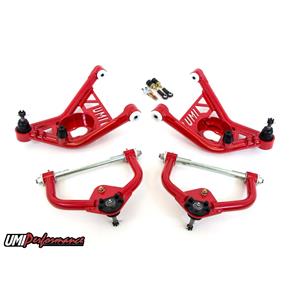

70-81 Camaro Front Upper Lower Control Arms Delrin Adjustable Tall Ball Joints

To make sure you receive your package, all items $500 and over are sent signature required

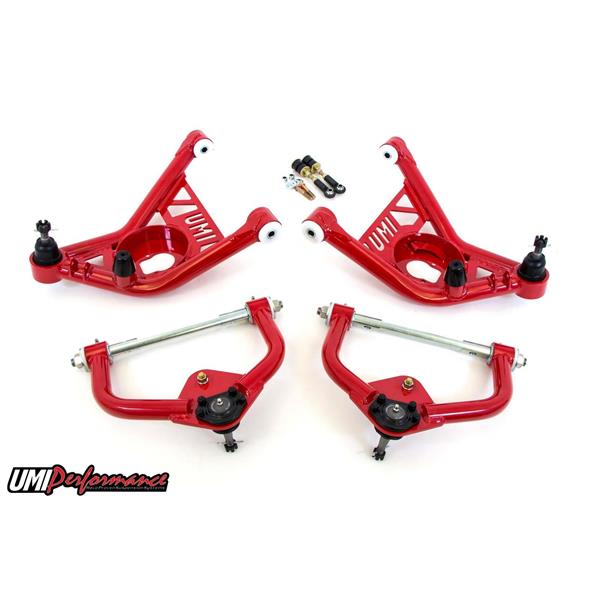

1970 - 1981 Camaro or Firebird Front A-arm Kit, Delrin Bushings, Adjustable Tall Ball Joints

Made in the USA!

• Applications:
• 70-81 Chevrolet Camaro
• 70-81 Pontiac Firebird
• All models)

UMI's 2nd Generation F-body performance a-arms are perfect for the F-body enthusiast seeking to improve the performance and blur the lines between race and street use. This kit features caster relocation of both the upper and lower ball joints to enhance steering feel and improve high speed stability. As designed, the caster potential is 8+ degrees. The spindle pin location remains unchanged so fender clearance is like stock. The adjustable upper a-arms reduce the need for shims in addition to providing an easy way to achieve desired camber and caster settings. They also include a tall ball joint to improve camber gain. Upper and lower a-arms are designed to allow proper suspension movement and approved steering response using UMI built Delrin bushings and Teflon lined rod ends. The heavy duty lower spring bucket accepts factory and aftermarket coil springs as well as the popular hybrid coilover units. Laser cut UMI reinforcement plates add a great appearance and excellent strength. UMI's double shear swivel sway bar end links are included and work nicely with UMI P/N 4035 sway bar and also most aftermarket stock eyelet type sway bars. Available in UMI red or gloss black powder coat. 100% designed, manufactured and raced with pride in Philipsburg, PA - USA.

• Features:
• erformance a-arm kit is a direct bolt-in for 1970-1981 GM F-body.
• Adjustable upper a-arm uses rod ends for easy alignment.
• otal of 8+ degrees caster potential.
• Upper ball joint moved rearward to add 5-6 degrees caster potential.
• Power ball joint relocated forward to increase caster 2 degrees which improves steering feel and straight line stability.
• od ends feature superior friction reduction for quick response.
• UMI built Delrin bushings improve steering response and reduce deflection.
• " taller upper ball joint to improve camber gain and traction during cornering.
• Upper and lower a-arms built from USA Made DOM steel tubing.
• Heavy duty spring bucket accepts factory and aftermarket coil springs.
• pring bucket is compatible with popular hybrid coils such as Viking and QA1.
• Double shear swivel sway bar mounts and hardware work with UMI P/N 4035 and most other factory eyelet style sway bars.
• Made in the USA.

Warranty:
UMI Performance offers a 2 Year replacement Warranty from the original purchase date to the original purchaser of the parts.

UMI Performance proudly designs and manufactures its entire line of products within its facility located in the small town of Philipsburg, Pennsylvania. The facility features CNC machining, both milling and turning CNC's, band sawing, press brake operation, MIG and TIG welding, sand blasting, plasma cutting and powder coating.
