1968-1972 Chevelle UMI Performance Suspension Handling Kit Coilovers RED Stage 4

To make sure you receive your package, all items $500 and over are sent signature required

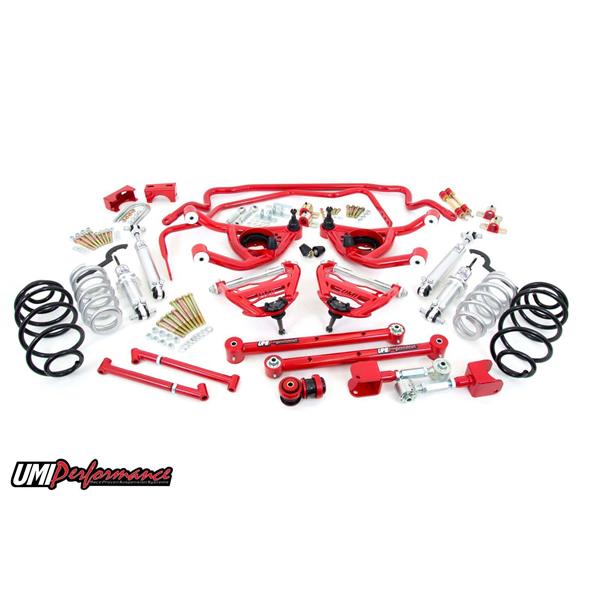

1968-1972 GM A-Body Handling Package Stage 4

Made in the USA!

Front Spring Rate Options:
450lb- Small block cruise
550lb- Small block handling, all big blocks
(Please specify your Engine Weight / Size
at checkout for fast order processing.)

• Applications:
• 1968-1972 Chevrolet Chevelle, Monte Carlo, El Camino
• 1968-1972 Buick Skylark, Grand Sport, Special
• 1968-1972 Pontiac Lemans, GTO, Tempest
• 1968-1972 Oldsmobile Cutlass, 442, F-85

Who says you can't have it all? UMI's Stage 4 kit transforms your A-body into a handling machine with the adjustability to perform well at the strip or haul your family comfortably - to the autocross. If drag racing is more your style, a few minor changes at initial purchase (or down the road) will have you launching with the best of them, then canyon carving on the way home! Up front we start with UMI's proven upper and lower tubular a-arms loaded with ½" taller upper ball joints. The upper a-arms increase caster, without additional shims, for a precise steering feel and straight line stability. The lower a-arms are loaded with UMI-built Delrin bushings for smooth motion and precise steering. Viking's front hybrid coilovers with double adjustable shocksallows ride height, compression and rebound adjustment. The ride height adjustment is accomplished with the included spanner wrenches and thrust washers. The compression and rebound adjusters are clicked by hand (no tools!) and feature a total of 361 possible valving combinations. The front is completed by UMI's 1.250" chromoly handling sway bar. Out back UMI stiffens the chassis with adjustable tubular frame braces which stabilize the Poly/Roto combo lower trailing arms and fully adjustable Roto-Joint upper control arms. 1" or 2" rear lowering springs (please specify at checkout) are controlled by Viking"s double adjustable rear shocks, once again featuring 361 possible combinations. Rounding out the rear is our three way adjustable 1" tubular Pro-Tour sway bar. This handling sway bar attaches to the axle housing and also to the rear crossmember for a bind-free system (requires drilling four 3/8" holes). As always, this kit features UMI's quality red or black powder coat and premium hardware. All UMI components are manufactured with pride in Philipsburg, PA USA.

• Key Features:
• Increased spindle height by 1/2" via tall upper ball joints for improved camber gain and a better contact patch.


• Upper a-arms add caster for improved steering feel and straight line stability.


• Lower a-arms feature UMI-built Delrin bushings and accept standard springs or coilovers.


• 1.250" front sway bar for flat cornering, CNC bent from 4140.


• Double adjustable Viking shocks are hand assembled in Minnesota USA and feature 361 possible valving combinations. Simply click and tune.


• Hybrid coilover springs are available in various rates depending on application and are Made In USA


• Rear trailing arms feature Poly and Roto-Joints as well as adjustable uppers for setting pinion angle and rear lateral location.


• Roto-Joints allow smooth articulation for improved handling and less bind.


• Choice of 1" or 2" (please specify your choice at checkout) rear lowering springs combined with Viking double adjustable rear shocks works great on street, auto-x and even the drag strip.


• 1" diameter rear ?Pro-Tour? bar offers increased stiffness over factory 7/8" bar and allows fine tuning with three? way adjustability.


• Premium hardware included. Bolt on and go.


• Manufactured in Philipsburg, PA USA by workers who care about your car.

• Stage 4 Handling Kit Includes:
• Tubular lower front a-arms with Delrin bushings, Part #4032
• Tubular upper front a-arms with Delrin bushings & ½" taller ball joints, Part #4033-1
• 1-1/4" Front sway bar with bushings and end links, Part #4035
• 1" tubular rear Pro-Tour bar, Part #4047-300?
• Set of (4) double adjustable Viking shocks, front shocks coil over
• Front coil over springs with choice of spring rate
• Thrust bearing and spanner wrench for quick and easy height adjustments
• Rear lowering springs, choice of 1" or 2" rear drop (please specify at checkout)
• Tubular rear lower control arms with Roto-Joint, Part #4038
• Adjustable rear upper control arms with Roto-Joints, Part #4037
• Tubular frame braces, Part #4028
• Replacement rear end housing bushings, Part #3000
• All new Grade 10.9 hardware with nylock nuts to install kit

64-72 GM A-Body Tubular Front Lower A-Arms, Delrin Bushings
Part # 4032- 1

Tired of looking at hammered, crusty lower a-arms with cracked ball joint bosses? UMI has the solution with brand new modern tubular lower a-arms. UMI lower A-Arms are fabricated from DOM tubing with CNC machined tube ends for a precision fit. They are jig built to maintain accuracy and bolt on correctly every time. All critical areas are TIG welded for superior strength and a clean look. UMI's lower A-Arms also feature improved ball joint angle for lowered vehicles and the design provides additional tire clearance. UMI's P/N 4032 lower a-arms include greaseable, UMI designed and manufactured Delrin bushings. Delrin bushings offer supremely smooth suspension action and precision operation while still providing some insulation from road noise. They come preloaded with polyurethane bump stops, polyurethane spring isolators and premium ball joints. UMI's extensive testing on the street, drag strip and skid pad ensures a quality product able to with stand all types of abuse. UMI Performance lower a-arms are shipped fully assembled and ready for installation.

• Features:
• Tubing is precision bent on a programmable tube bender & CNC machined for accuracy
• Tig built & TIG welded for superior strength and a clean look
• Greaseable, UMI designed & manufactured Delrin bushings for supremely smooth suspension action
• Premium ball joints installed
• Polyurethane bump stops & spring isolators
• Simply bolt-on and go. Fits factory spindle and works with factory springs, lowering springs and coil over kits
• Durable red or black powder coat finish
• Designed and manufactured with pride in Philipsburg, PA USA

Hardware kit

Lower a-arm hardware kit includes 1/2-13 Grade 8 bolts, washers and nylock nuts. Kit includes everything needed to mount your new UMI Performance a-arms to your vehicle.

64-72 A-Body Tubular Front Upper A-arms, ½" Taller Ball Joints
Part # 4033-1

Improve handling and make your classic A-Body feel like a modern day muscle car by combining UMI's popular upper a-arms with ½" taller premium ball joints. These a-arms combine the benefit of additional caster with increased negative camber potential throughout the suspension travel. The relocated ball joint plate offers up to six degrees caster without excessive shimming while the ½" taller ball joint creates up to one additional degree negative camber at full bump travel. Expect improved steering feel courtesy of increased caster and an overall increase in lateral grip due to the camber improvement. Features include greaseable, low deflection UMI designed and manufactured Delrin bushings, chromoly cross shafts, improved header clearance and polyurethane bump stops. These track-tested, jig built DOM A-arms are supplied with a durable gloss red or black powder coat finish which guarantees your performance parts stay beautiful on your street car, drag car, autocrosser or Pro-touring machine. Designed and manufactured with pride in Philipsburg, PA - USA.

• Features:
• NEW premium 1/2" taller ball joints for improved camber curve
• Relocated ball joint pad for increased caster without excess shims
• CNC Machined ball joint mount & tubing radiuses
• Robust tubular design with machined gussets
• recision bent tubing on programmable tube bender
• Big welded for superior strength and clean looks
• 140 chromoly cross shafts, CNC machined & zinc plated
• MI built, greaseable & fluted CNC machined no deflection Delrin bushings
• Polyurethane bump stops included
• irect bolt-in compatible with factory or UMI lower a-arm and factory spindle
• ay also work in conjunction with other brand lower A-arms and/or spindles
• ackage includes recommended alignment specs and detailed installation instructions

Hardware kit

Upper A-Arm hardware kit includes 7/16-14 Grade 8 bolts, washers and nylock nuts. Kit includes everything needed to mount your new UMI Performance A-Arms to your vehicle.

1964 - 1972 GM A-Body 1.250" Solid Front Sway Bar
Part # 4035

UMI Performance 1.250" (32mm) solid front sway bar is designed to reduce body roll, understeer and increase cornering capabilities resulting in a more balanced suspension. This front sway bar is over 400%25 more rigid than the factory 7/8" front sway bar and bolts directly in place with no modifications. Front sway bar is manufactured from 1.250" 4140 chrome moly steel, CNC bent and formed as one piece to insure maximum strength and performance. Each kit includes new Energy Suspension end links and greaseable sway bar bushings with new zinc plated clamshells. Sway bar is available powder coated bright red or gloss black for a durable long lasting finish.

Viking Front Coil Over Kit
Rear Coil Spring and Shock

Viking's front coilover kit combines a high quality hybrid spring with a 19- position double adjustable shock. The upper coil fits the upper spring perch on your vehicle while the lower part of the coil matches the coilover shock bottom. A coil spring compressor is not required, as the adjuster acts as the compressor. The optional thrust bearing and spanner wrenches allow for easy adjustment of ride height from factory to 3" lowering. The shock itself has independent compression and rebound adjusters to allow custom tuning for street, strip, auto-x and road race - all in one shock. Viking coilovers work perfectly with UMI's lower a-arm or your factory lower a-arm. Pair with UMI's geometry corrected upper a-arm loaded with a tall ball joint and head for the nearest high speed corner, 1/4 mile track or weekly cruise.

• Features:
• Hybrid coil spring Made in USA
• rilliant protective finish ensures your springs stay nice for years
• hoose spring rates for drag, street or road race/auto-x
• 9 way adjustable compression and rebound damping shock suits all occasions (361 possible combinations)
• very shock is built, dyno tested and serialized in Lakeville, Minnesota
• hocks can be rebuilt at Viking or an authorized Viking rebuild center (call for details)

64-72 GM A-Body Viking Shock, Double Adjustable, Rear
Viking's double adjustable rear shocks feature 19 independently adjustable compression and rebound settings for a total of 361 possible valving combinations. They are a direct bolt-on and can dramatically increase the performance of your car in a variety of situations. No tools required to optimize for street, strip, auto-x or road race.

• Features:
• irect bolt on replacement for your vehicle.
• 9 way adjustable compression and rebound damping suits all occasions (361 possible combinations)
• very shock is built, dyno tested and serialized in Lakeville, Minnesota
• hocks can be rebuilt at Viking or an authorized Viking rebuild center

1964 - 1972 GM A-Body 1" Solid Chromoly Rear Sway Bar
Part # 4034

UMI's beefy 1" solid rear sway bar is designed to reduce body roll, understeer and increase cornering capabilities resulting in a more balanced suspension. This rear sway bar also works to keep your vehicle level and straight during those hard launches. This sway bar is manufactured from 1" solid 4140 chromoly steel, heat treated and formed as one piece to ensure maximum strength and performance. The hot forming and heat treating processallows the bar to maintain its shape and memory longer than a cold bent bar.

Rear sway bar includes new Grade 8 hardware to complete the installation. The bar is available powder coated Bright Red or Gloss Black.

1964-1972 A-Body Lower Rear Control Arms- Poly/Roto-Joint
Part # 4038

UMI's tubular lower control arms utilize their Roto-Joint technology for a bind free performance and quiet comfortable ride quality. The Roto-Joint design is a pivot ball lined with a greaseable delrin race designed to offer 28 degrees of total unrestricted movement, more than adequate for a bind free, low friction operation. The Roto-Joint design improves performance over the factory rubber and aftermarket polyurethane bushings by allowing the suspension to articulate correctly, and provide precision handling. The installed UMI Roto-Jointallows rear end free movement when high handling, auto cross or road race is a concern while still being a 100%25 streetable setup. The installed delrin race, which lines the spherical ball, absorbs shock and road noise for a quiet and smooth operation on any street or track driven vehicle. This control arm set features polyurethane bushings on one end and UMI's spherical Roto-Joint on the other end. This set-up is designed for street performance and street enthusiast. The polyurethane bushing end is designed to be bolted to the vehicle chassis side while the Roto-Joint attaches to the rear end side. Since the polyurethane bushings are softer they are designed to absorb more road noise and shock before it enters the passenger compartment of the vehicle. Both control arms feature the correct provisions for adding a stock or aftermarket sway bar. Sway bar holes are reinforced with a 0.120" wall thickness steel sleeve that is TIG welded and sanded into place. All bushing ends and Roto-Joints are greaseable and low maintenance making an excellent street setup for your cruiser!

• Features:
• onstructed of 1.500" x 0.120" DOM mild steel tubing
• pherical Roto-Joints installed
• elrin race offers low deflection for improved traction
• nergy Suspension greaseable polyurethane bushings
• ully TIG welded
• einforced sway bar holes
• hipped fully assembled and ready to install
• ses OEM hardware
• rilliant and durable powder coat finish



1968-1972 A-Body Adjustable Upper Rear Control Arms- w/ Roto-Joint
Part # 4039

Eliminate wheel hop, increase traction and improve handling performance with an easy bolt on installation. UMI Performance's adjustable upper control arms feature on car adjustability and are supplied with spherical Roto-Joints. The Roto-Joint design is a pivot ball lined with a greaseable delrin race designed to offer 28 degrees of total unrestricted movement, more than adequate for a bind free, low friction operation. The Roto-Joint design improves performance over the factory rubber and aftermarket polyurethane bushings by allowing the suspension to articulate correctly, and provide precision handling. The installed UMI Roto-Jointallows rear end free movement when high handling, auto cross or road race is a concern while still being a 100%25 streetable setup. The installed delrin race, which lines the spherical ball, absorbs shock and road noise for a quiet and smooth operation on any street or track driven vehicle.

For ease of adjustment UMI has designed their upper control arms with on car adjustability. Pinion angle adjustments can easily be made in the garage or at the track and making adjustments is as simple as loosening two jam nuts. Using UMI's chrome moly on car adjuster, simply turn the adjuster with the control arms attached to the vehicle to quickly lengthen or shorten the control arm. As the control arms are shortened or lengthen the rotate the rear end changing the pinion angle. Pinion angle adjustments are crucial when wanting to lower your track 60 foot times, increase traction and reduce unwanted wheel hop.

• Features:
• n car adjustable using chrome moly, heat treated adjuster
• ounting plate CNC machined from 0.250" thick mild steel
• 140 chrome moly threaded tube adaptors
• pherical Roto-Joints installed
• hipped fully assembled and ready to install
• ses OEM hardware
• rilliant and durable powder coat finish

1964 - 1972 GM A-Body Rear Control Arm Bolt Kit
Part # 4001

Don't reuse your old rusty bolts when installing aftermarket control arms when you can replace them with new ones. This kit includes all new hardware for installing either upper or lower rear control arms in your General Motors vehicle. Supplied is (4) 1/2" grade 8 bolts, (4) 1/2" nylon lock nuts and washers. Complete kit is zinc plated.

1968-1972 GM A-Body Control Arm Reinforcements/Frame Braces
Part # 4029

Trailing arm mount braces are designed to reinforce the upper and lower front control arm mounts on your classic A-Body. The more power your ride makes the better chance of bending or breaking the rear control arm mounts. These tubular reinforcements tie the upper and lower control arm mounts together for added strength and driving performance. Control arm braces are manufactured from DOM steel; TIG welded and feature adjustment for a perfect fit on all 64-67 A-Body"s. Kit includes new longer Grade 8 hardware, nuts and washers.

1968-1972 GM Polyurethane Rear End Housing Replacement Bushings
Part # 3000

Replace your rubber OEM rear end housing with an Energy Suspension polyurethane setup. Over years, rubber OEM bushings dry rot, crack and harden, decreasing your ride quality and performance. The Energy Suspension polyurethane bushings replace the two upper control arm rear end differential bushings--the bushings that stay attached to the rear end. This is an excellent upgrade for your street or track driven vehicle. (2 per set)

More about Roto-Joint Technology

UMI's Roto-Joint, short for Rotational Joint,allows 28 degrees of total rotation and unrestricted movement throughout the vehicles suspension. The Roto-Joint is designed to work like a spherical rod end while maintaining streetable qualities of a softer bushing. The Roto-Joint is designed to articulate and prevent suspension bind, and since the installed delrin race does not deflect like softer bushings, there is an improvement in traction and a significant reduction in wheel hop. The construction of the Roto-Joint features a 4140 chrome moly, hard chrome plated spherical ball which rotates in a delrin race. The 4140 chrome moly material and hard chrome plating are designed for extensive wear resistance against hard driving and accumulated miles. The spherical ball rotates in the CNC machined delrin bushing, which is contoured for the spherical ball to allow unrestricted movement as the ball rotates. Delrin is the bushing material of choice due to its high resistance against wear, great tensile strength, and ability to maintain its physical properties. The housing of the Roto-Joint features 4140 chrome moly threads, and a CNC machined bushing holder TIG welded together for the utmost in strength and durability. The UMI Roto-Joint is adjustable and 100%25 rebuildable. This means as the delrin race wears the adjuster ring can be tightened using the optional spanner wrench to apply tension to the ball. If the delrin race would ever wear completely it can be replaced easily.

Spanner Wrench
This spanner wrench is used for adjusting and disassembling Roto-Joints used in all UMI Performance products. Over time if the delrin race inside the Roto-Joint would wear the spanner wrench is used to tighten the adjusting ring applying more pressure to the delrin inside. The spanner wrench is also used to disassemble the Roto-Joint for cleaning, inspection and rebuilding.

• Features:
• 00%25 Rebuildable Design
• educes Suspension Bind
• elrin race absorbs shock
• Greaseable unit increases bushing life
• Big welded construction
• hrome moly spherical ball
• 8 Degrees of total unrestriced movement
• uilt exclusively by UMI Performance
• ade in the USA!
