RideTech 2007 - 2013 Chevy Silverado GMC Sierra 1500 | Complete HQ Adjustable Coil-Over Suspension System
SKU: 11700201

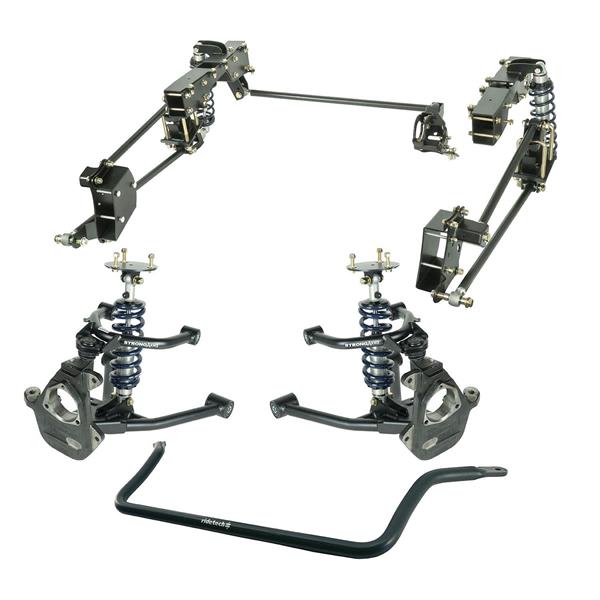

HQ Coilover System for 2007-2013 Silverado/Sierra 1500 2WD. Includes drop spindles, front sway bar, adjustable front and rear Coil-Overs, front upper and lower control arms, rear 4-link and panhard bar.
The Ridetech suspension system for your 2007-2013 GM Truck will completely transform the way your 2007-2013 GM Truck rides and handles - AND make it low and cool at the same time. Using tubular control arms in front and a bolt-on 4-link in the rear, this system starts off with significantly better geometry for cornering and acceleration control. The combination of lighter weight and highest quality bushings / joints allows the system to react freely, without binding or stiction. A smooth and light suspension lets the job of controlling the truck’s movement be controlled by the amazing Fox shocks - that you can adjust to get exactly the ride you are after.
- Offers a ride height that is approximately 4 in. lower than stock in the front and 6 in. in the rear.
- HQ Series Adjustable Coil-Overs utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine-tuning of the ride quality and handling the rebound knob is located at the top of the shock for under hood access. They come standard with a 1,000,0001 Mile Warranty. Interested in Autocross or Road Course Racing? Consider the TQ Series Coil-Overs.
- The Upper StrongArm tubular control arms feature corrected ball joint angles for the lowered ride height and the length has been altered to create more camber adjustment. Injection-molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.
- The Lower StrongArm tubular control arms feature a double sheer lower shock mount for increased strength. We have also dropped the lower shock mount to increase suspension travel and altered the length to create more camber adjustment. Injection-molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.
- A Front MuscleBar sway bar is included to reduce body roll and includes the PosiLink End-links that provide immediate engagement between the chassis and control arms.
- Drop Spindles are used to all the use of a longer stroke shock and improve suspension geometry and bump steer. Fits 17 in. or larger wheels.
- The Bolt On 4-Link greatly improves traction, handling and ride quality. Installation does not require any welding or major modifications to the bed floor. Includes patent-pending R-Joint rod ends to eliminate binding and noise.
- Includes patent-pending R-Joint rod ends to eliminate binding and noise.
- Optimized anti-squat, roll center and pinion angle migration for dramatic improvements in handling and traction.
- Bolt-on C-Notch reinforces OEM frame rails and features integrated suspension mounts.
- Designed for simple installation with minimal OEM rivet removal.
*Designed for use with 2WD trucks.
Upgrades:
- TQ Series Adjustable Shocks- The remote reservoir triple adjustable Coil-Over shocks feature rebound adjustment along with dual stage (High Speed & Low Speed) compression adjustment. High-speed adjustment allows tuning for impact harshness and low speed adjustment allows tuning of cornering characteristics, perfect for use on the autocross, road course and drag strip.
Fitment Details
Year | Make | Model | Trim | Engine | Notes |
---|---|---|---|---|---|
2007 | Chevrolet | Silverado 1500 | |||
2008 | Chevrolet | Silverado 1500 | |||
2009 | Chevrolet | Silverado 1500 | |||
2010 | Chevrolet | Silverado 1500 | |||
2011 | Chevrolet | Silverado 1500 | |||
2012 | Chevrolet | Silverado 1500 | |||
2013 | Chevrolet | Silverado 1500 | |||
2007 | GMC | Sierra 1500 | |||
2008 | GMC | Sierra 1500 | |||
2009 | GMC | Sierra 1500 | |||
2010 | GMC | Sierra 1500 | |||
2011 | GMC | Sierra 1500 | |||
2012 | GMC | Sierra 1500 | |||
2013 | GMC | Sierra 1500 |
