Quick Time Bellhousing - Big Block Mopar
Perfect fit for Chrysler 383s, 400s, 426s, and 440s with TKO, TR3550, or T5 transmissions

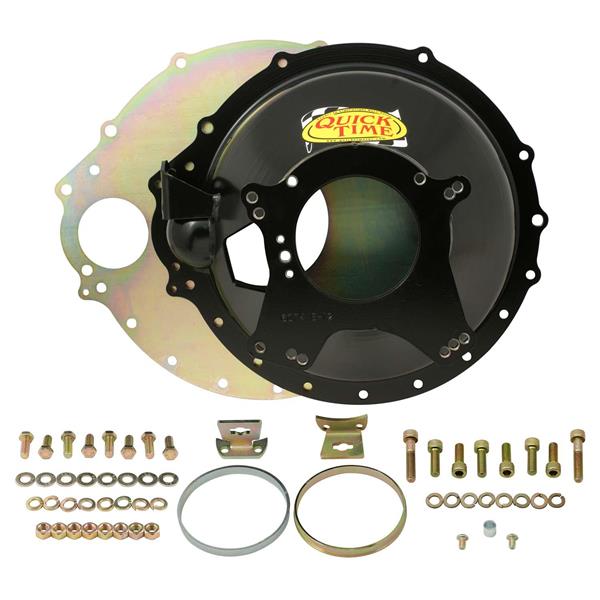

The Quick Time RM-6074 bellhousing connects Mopar big block engines (383, 413, 426 wedge, 426 Hemi, and 440) to Ford TKO 500-600, TR3550, and T5 Mustang transmissions. This bellhousing is not S.F.I. certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)
Features:
- Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
- QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
- Built from high grade steel "Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
- 100% built in the USA
- Patent on 16 points of Bellhousing Design & Process
Installation Note:
Specifications:
- Brand: Quick Time
- Certification: 6.1 SFI
- Clutch Operation: Hydraulic
- Color: Black
- Emission Code: 5
- Engine: Mopar 383
- Engine: Mopar 400
- Engine: Mopar 426
- Engine: Mopar 440
- Engine: Mopar Big Block
- Engine Make: Mopar
- Engine Plate: RM-6073-C
- Finish: Semi-gloss
- Flywheel: 130 Tooth
- Height: 7.270 inch
- Make: Mopar
- Material: Steel
- Product Type: Bellhousing
- Trans Bore: 4.85 / 4.91 / 5.12
- Transmission: T5 Mustang
- Transmission: TKO 500/600 Ford
- Transmission: TR3550
- Transmission Type: Manual
- Warranty: Limited 90 Day Warranty
- Weight: 22#
