Details
Quick Time Chevy LS and Late Model LT to LS T-56 Transmission - Bellhousing
Designed to fit Gen 3 and 4 LS and Late Model LT1/4 (2014 €" Current) Engines utilizing an LS T-56 Transmission.

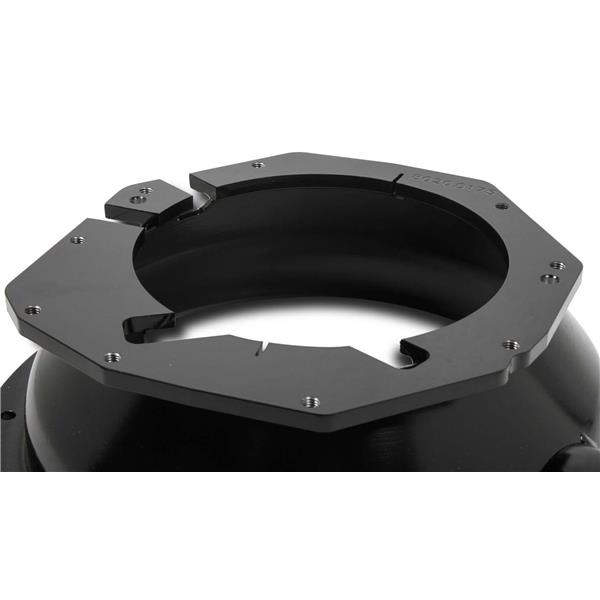

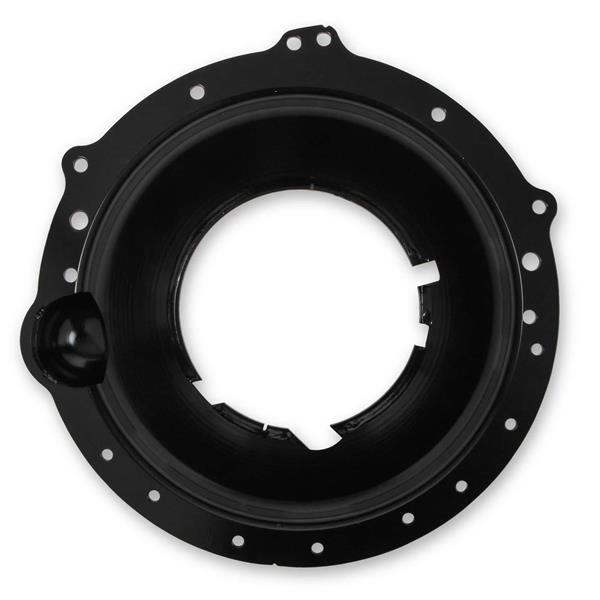

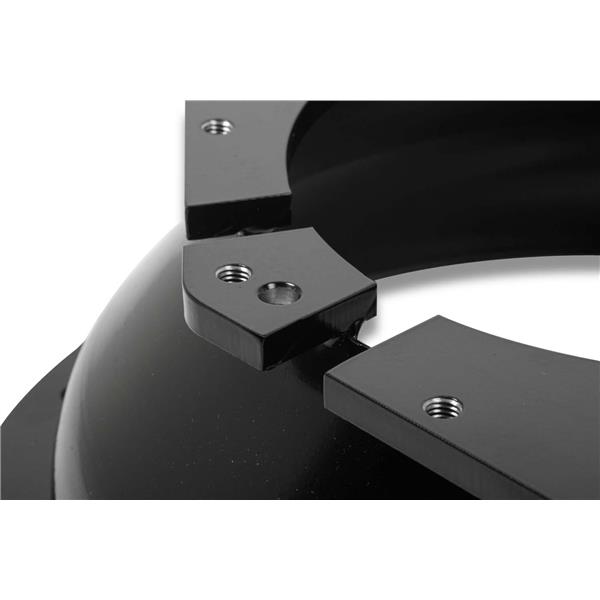

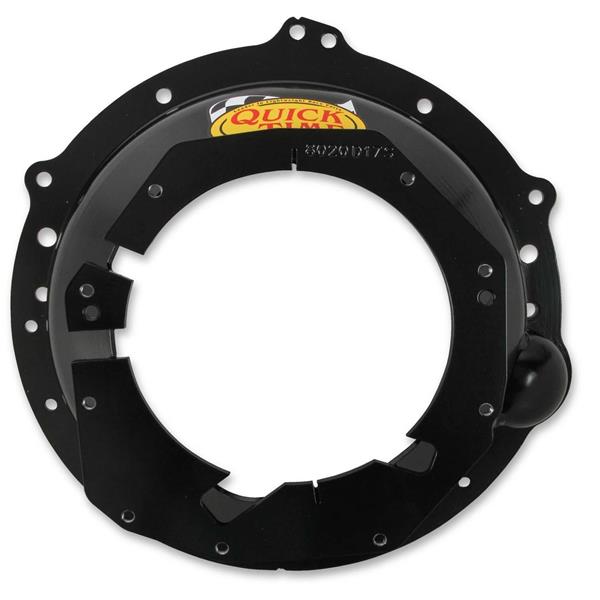

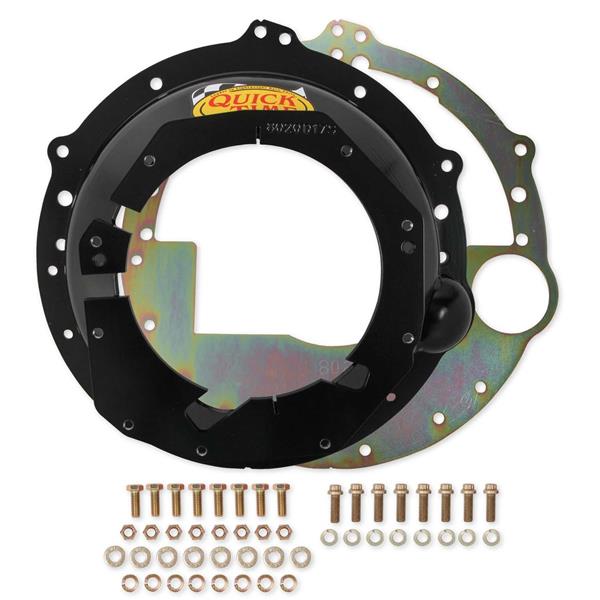

The Quick Time RM-8020 bellhousing connects Gen 3 and 4 LS and Late Model LT1/4 (2014 "Current) engines to T-56 Chevy LS, and T56 Magnum transmissions. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)
Features:
- Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
- QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
- Built from high grade steel "Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
- 100% built in the USA
- Patent on 16 points of Bellhousing Design & Process
Installation Note:
Specifications:
- Brand: Quick Time
- Certification: 6.1 SFI
- Clutch Operation: Hydraulic
- Color: Black
- Emission Code: 5
- Engine: Chevy LT1
- Engine: Chevy LT4
- Engine: GM Small Block Gen III/IV (LS Based)
- Engine Make: Chevrolet

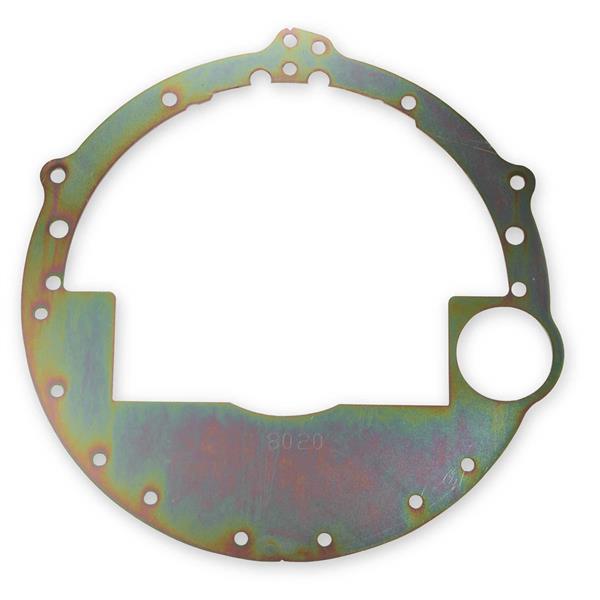

- Engine Plate: RM-6034-C
- Finish: Semi-gloss
- Flywheel: 168 Tooth
- Height: 5.500 inch
- Make: Chevrolet
- Material: Steel
- Product Type: Bellhousing
- Trans Bore: N/A
- Transmission: T56 GM
- Transmission: T56 Magnum
- Transmission Type: Manual
- Warranty: Limited 90 Day Warranty
- Weight: 20#
