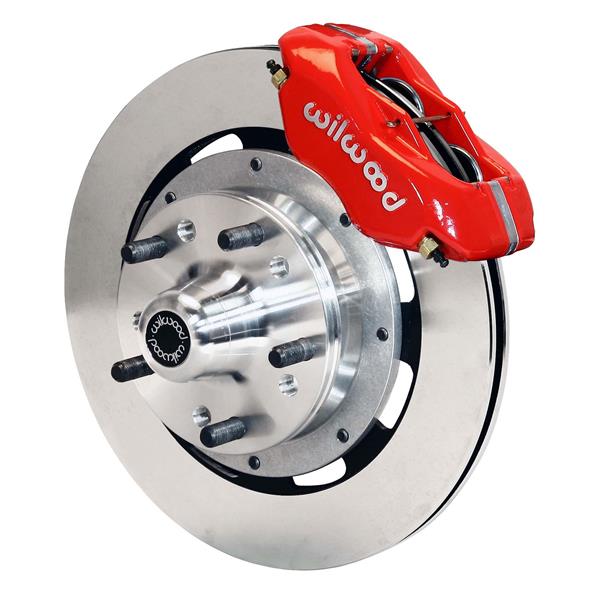

Wilwood Mopar B & E Body Front Disc Big Brake Kit 12" Plain Rotor Red Caliper

To make sure you receive your package, all items $500 and over are sent signature required

Forged Dynalite Pro Series Front Brake Kit
Ultralite HP 32 12.19" Plain Rotor / Red Powdercoat Caliper

This kit will only move your wheels out .13 inches!

The manufacturer advises the use of a 15" or larger wheels.

• Fits the Following cars with Factory Drum Brake Spindles
• 1965-1968 Chevrolet Biscayne
• 1965-1968 Chevrolet Brookwood
• 1965-1968 Chevrolet Impala

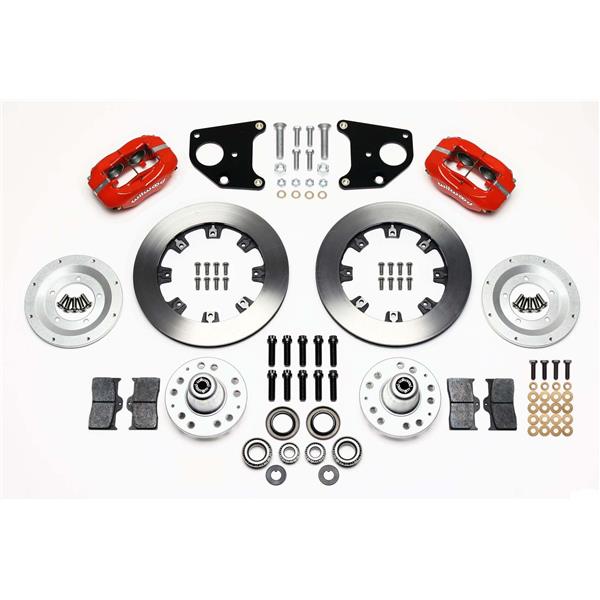

• Kit Includes:
• Pair of Ultralite HP 32 12.19" x 1.1" plain rotors - Vented for proper cooling


• Pair of Rotor Adapters with Bolts


• Aluminum Wheel Hub - Includes 5 x 4.50 and 5 x 4.75 Bolt Pattern


• Inner and outer bearings


• Inner seals


• Pair of caliper brackets


• NEW pair of Heavy Duty FORGED DYNALITE Red Powdercoat 4 piston Calipers. Piston Area 4.8"


• Full set of Semi-Metallic pads Wilwood BP-10 Compound great for street use and light track use.


• All necessary hardware (nuts bolts)


• Full Color instruction booklet

FDL Big Brake Front Hub Kits provide the added advantage of larger diameter brake rotors for traditional non-ABS spindles on American muscle cars and vintage rods. Forged billet Dynalite calipers, 12.19 diameter rotors, and high performance Wilwood brake pads generate big brake stopping power to compliment wheel, tire, and suspension upgrades on all types of custom show and performance street / strip machines. A full range of options for caliper finish and rotor design provide custom builders with the ability to personalize the style and performance requirements of the mildest to the wildest machines.

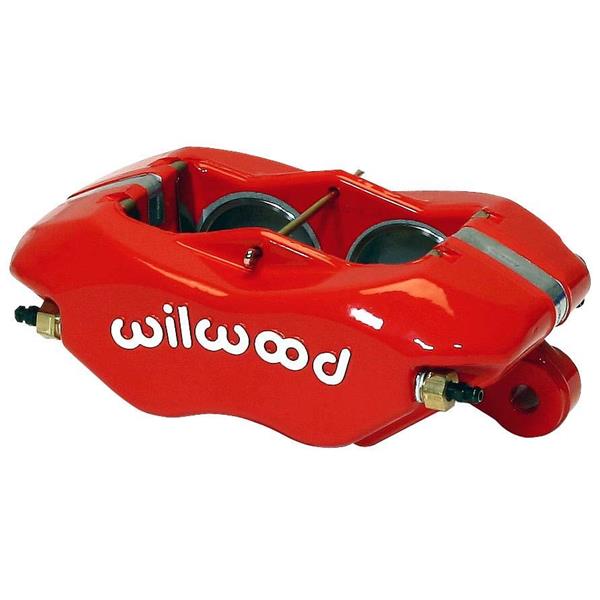

Forged Dynalite Four Piston Calipers:

Caliper Highlights:
The Forged Billet Dynalite has wide spread application over many forms over motorsports. It serves as the base model in the majority of Wilwood's Bolt-On Disc Brake Kits. The latest applied developments and innovations in caliper design and manufacturing processes have resulted in substantial improvements in strength and performance over all comparable models.

Forged Dynalites are the strongest calipers in the class, with weights starting at 2.80 pounds. The process of stress-flow forging re-aligns the metal's grain structure within the contour of the caliper body. This process eliminates the breaks and interruptions to the internal grain structure that occur when machining a straight block billet. The FEA generated radial transition design eliminates steps and shoulders in the area between the piston housing body and the caliper bridges. Incorporating a radius in this transition area substantially increases resistance to deflection and caliper separation under load. Structural deflection and volume displacement tests have proven the Forged Dynalite to outperform all existing styles of this popular caliper size. Without even considering the overall greater strength and reliability of the forging, the reduced deflection tendencies and the resulting decrease in fluid volume displacement translate to increased clamping efficiency with less pedal travel. The bottom line is a taller pedal and better stopping power.

The superior strength of this innovative design is combined with proven performance features from Wilwood's earlier designs. Each caliper is equipped with Wilwood's SRS stainless steel bridge plates. The SRS plates eliminate the bridge wear caused by pad gouging and extend the service life of the caliper body. The spring-loading action of the SRS plates also eliminates pad rattle and dampens the vibration harmonics that contribute to squeal under braking. Other standard Wilwood features include high temperature seals and stainless steel pistons to eliminate corrosion and retard heat transfer from the pads. Internal fluid passages eliminate the need for external tubes. Four corner bleed screws assure simple and effective air evacuation from the system and allow one caliper to be mounted in any front, rear, right or left position. Standard race calipers feature Wilwood's signature bright red powdercoat finish to resist corrosion and maintain their high tech style.

Forged Dynalite calipers are a direct replacement for all Wilwood Dynalite and similar competitive brand calipers with 5.25" centered mounting lugs. The Forged Dynalite uses the same 7112 type brake pad used in all earlier versions of this caliper. The full range of Wilwood pad compounds is available to match brake response and heat range to any application.

Total Piston Area (in): 4.8

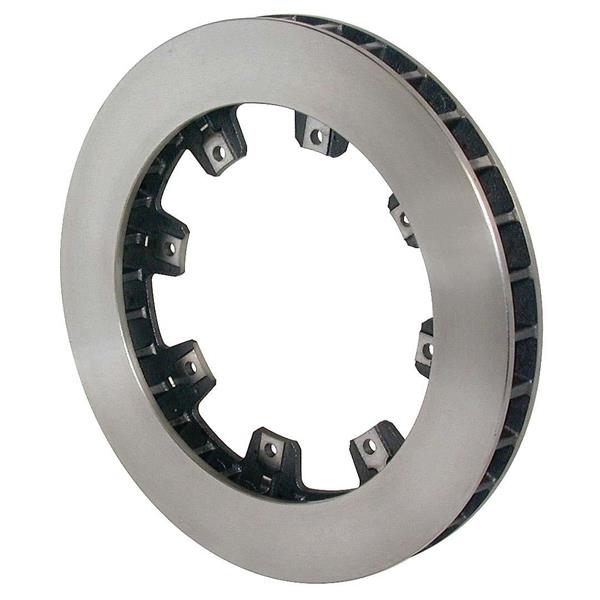

Ultralite HP 32 Vane 12.19" Rotors

Ultra-Light ULHP straight vane rotors provide high value performance and rugged durability for a wide range of competition, high performance, and sport driving applications. Don't confuse these rotors with bargain priced off-brand named parts. Wilwood's modern manufacturing capability, combined with large scale ecoNmies, make it possible to offer this level of quality and performance at such an affordable price.

Every Wilwood rotor is cast from premium grade, long grain carbon iron. This material exhibits long wear, high thermal stability, and excellent resistance to distortion in high heat. Modern foundry and machining techniques hold close tolerances on face and vane thickness. Combining the correct face thickness with a 32 vane casting provides superior heat management and long service life with low rotating and unsprung weight. The straight vane design also makes it possible to use the same rotor on left or right hand mounting locations.

• Features:
• Premium grade, medium weight castings
• Suitable for moderate tempurature racing or street use
• Surface Finish: Plain

• Rotor Dimensions:
• Width (in): 1.1
• Diameter (in): 12.19
