D8-4 Rear Replacement Caliper Kit
The manufacturer advises the use of some 15" or larger wheels.
Please review the wheel fitment Diagram:
Click Here
- Fits:
- 1965-1982 Chevrolet Corvette

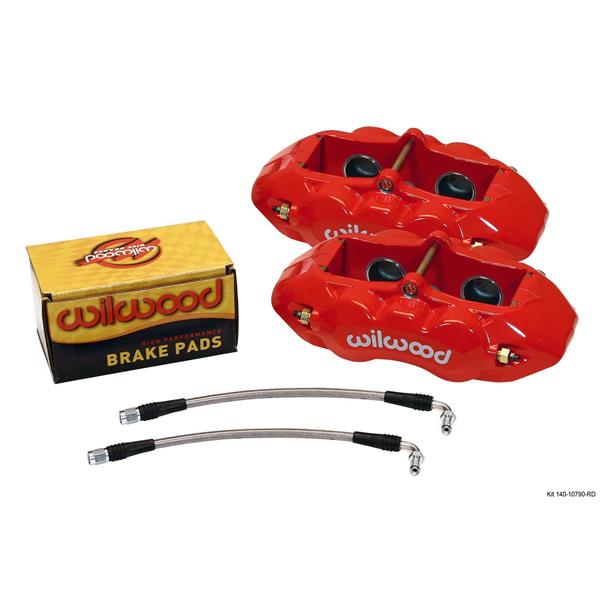

- Kit Includes:
- NEW pair of D8-4 Red Powdercoated 4 Piston Calipers. Piston Area 5.56"
- Full set of Semi-Metallic pads Wilwood BP-10 Compound great for street use and light track use.
- Braided Stainless Steel Flex Lines
- Full Color instruction booklet
Click Here for Assembly Schematic
D8-4 calipers are a direct bolt-on replacement for the OE calipers on all 1965-82 Corvettes. Forged billet aluminum bodies, stainless steel pistons and high-temperature seals put an end to the rust, bore pitting and seal failures that plague the OE caliper design. D8-4 calipers provide low-maintenance performance, a huge weight savings, and high temperature reliability for street or track. D8-4 calipers mount in the stock location over stock rotors, use the original style D8 brake pads, and fit snugly inside most 67 or newer production wheels. Some wheels, including the 1965-66 OE JK code steel wheels and a few aftermarket replica alloy wheels, will require a 3/16 or wider wheel spacer for clearance. Kits contain DOT compliant stainless braided brake lines and BP-10 compound Smart Pads
D8-4 Front Calipers:
Caliper Details:
D8-4 rear calipers are a direct bolt-on replacement for the OE factory rear calipers on all 1965-82 Corvettes. Forged billet aluminum bodies, stainless steel pistons, and high temperature seals put an end to the rust, bore pitting, and seal failures that plague the original cast iron caliper design.
D8-4 calipers mount in the stock location over stock rotors and use the original type D8 brake pads. These calipers fit inside 1967 and later production steel rally wheels and most of the later model alloy wheels. Original steel JK code wheels from 1965-66, and some aftermarket alloy replica wheels, will requires a 3/16 or thicker wheel spacer for clearance.
D8-4 calipers use the same overall piston volumes as the original calipers. Other than a new flexline with an 1/8-27 NPT end for the new aluminum caliper, no other changes such as master cylinder output or front to rear bias adjustment are necessary.
D8-4 calipers are the product of Wilwoods in-house FEA design and 3-D modeling technology. With its unyielding strength and superior piston design, the D8-4 generates positive pedal response and high clamping efficiency with a substantial weight savings.
Total Piston Area (in): 5.56
This Caliper is available in Clear Anodized as well as Black or Red Powdercoat
Click Here to see other options
Fitment Details
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| 1981 | Chevrolet | Chevette | Base Hatchback 4-Door | 1.8L 1819CC 110Cu. In. l4 DIESEL OHV Naturally Aspirated | |
| 1981 | Chevrolet | Chevette | Base Hatchback 4-Door | 1.6L 98Cu. In. l4 GAS SOHC Naturally Aspirated | |
| 1981 | Chevrolet | Chevette | Base Hatchback 2-Door | 1.8L 1819CC 110Cu. In. l4 DIESEL OHV Naturally Aspirated | |
| 1981 | Chevrolet | Chevette | Scooter Hatchback 2-Door | 1.6L 98Cu. In. l4 GAS SOHC Naturally Aspirated | |
| 1981 | Chevrolet | Chevette | Base Hatchback 2-Door | 1.6L 98Cu. In. l4 GAS SOHC Naturally Aspirated | |
| 1965 | Chevrolet | Corvette | Base Coupe 2-Door | 5.3L 5358CC 327Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1965 | Chevrolet | Corvette | Base Convertible 2-Door | 6.5L 6489CC 396Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1965 | Chevrolet | Corvette | Base Convertible 2-Door | 5.3L 5358CC 327Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1965 | Chevrolet | Corvette | Base Coupe 2-Door | 6.5L 6489CC 396Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1966 | Chevrolet | Corvette | Base Convertible 2-Door | 7.0L 6998CC 427Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1966 | Chevrolet | Corvette | Base Coupe 2-Door | 5.3L 5358CC 327Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1966 | Chevrolet | Corvette | Base Convertible 2-Door | 5.3L 5358CC 327Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1966 | Chevrolet | Corvette | Base Coupe 2-Door | 7.0L 6998CC 427Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1967 | Chevrolet | Corvette | Base Convertible 2-Door | 5.3L 5358CC 327Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1967 | Chevrolet | Corvette | Base Coupe 2-Door | 5.3L 5358CC 327Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1967 | Chevrolet | Corvette | Base Convertible 2-Door | 7.0L 6998CC 427Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1967 | Chevrolet | Corvette | Base Coupe 2-Door | 7.0L 6998CC 427Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1968 | Chevrolet | Corvette | Base Coupe 2-Door | 5.3L 5358CC 327Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1968 | Chevrolet | Corvette | Base Coupe 2-Door | 5.4L 327Cu. In. V8 GAS Naturally Aspirated | |
| 1968 | Chevrolet | Corvette | Base Convertible 2-Door | 5.4L 327Cu. In. V8 GAS Naturally Aspirated | |
| 1968 | Chevrolet | Corvette | Base Coupe 2-Door | 7.0L 6998CC 427Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1968 | Chevrolet | Corvette | Base Convertible 2-Door | 7.0L 427Cu. In. V8 GAS Naturally Aspirated | |
| 1968 | Chevrolet | Corvette | Base Convertible 2-Door | 7.0L 6998CC 427Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1968 | Chevrolet | Corvette | Base Convertible 2-Door | 5.3L 5358CC 327Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1968 | Chevrolet | Corvette | Base Coupe 2-Door | 7.0L 427Cu. In. V8 GAS Naturally Aspirated | |
| 1969 | Chevrolet | Corvette | Base Convertible 2-Door | 7.0L 6998CC 427Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1969 | Chevrolet | Corvette | Base Coupe 2-Door | 7.0L 427Cu. In. V8 GAS Naturally Aspirated | |
| 1969 | Chevrolet | Corvette | Base Coupe 2-Door | 7.0L 6998CC 427Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1969 | Chevrolet | Corvette | Base Convertible 2-Door | 7.0L 427Cu. In. V8 GAS Naturally Aspirated | |
| 1970 | Chevrolet | Corvette | Base Coupe 2-Door | 7.4L 7441CC 454Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1970 | Chevrolet | Corvette | Base Convertible 2-Door | 7.4L 454Cu. In. V8 GAS Naturally Aspirated | |
| 1970 | Chevrolet | Corvette | Base Convertible 2-Door | 7.4L 7439CC 454Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1970 | Chevrolet | Corvette | Base Coupe 2-Door | 7.4L 7439CC 454Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1970 | Chevrolet | Corvette | Base Convertible 2-Door | 7.4L 7441CC 454Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1970 | Chevrolet | Corvette | Base Coupe 2-Door | 7.4L 454Cu. In. V8 GAS Naturally Aspirated | |
| 1971 | Chevrolet | Corvette | Base Convertible 2-Door | 7.4L 7441CC 454Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1971 | Chevrolet | Corvette | Base Convertible 2-Door | 7.4L 454Cu. In. V8 GAS Naturally Aspirated | |
| 1971 | Chevrolet | Corvette | Base Coupe 2-Door | 7.4L 7441CC 454Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1971 | Chevrolet | Corvette | Base Coupe 2-Door | 7.4L 454Cu. In. V8 GAS Naturally Aspirated | |
| 1971 | Chevrolet | Corvette | Base Coupe 2-Door | 7.4L 7439CC 454Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1971 | Chevrolet | Corvette | Base Convertible 2-Door | 7.4L 7439CC 454Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1972 | Chevrolet | Corvette | Base Convertible 2-Door | 7.4L 7439CC 454Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1972 | Chevrolet | Corvette | Base Coupe 2-Door | 7.4L 7439CC 454Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1972 | Chevrolet | Corvette | Base Coupe 2-Door | 7.4L 454Cu. In. V8 GAS Naturally Aspirated | |
| 1972 | Chevrolet | Corvette | Base Convertible 2-Door | 7.4L 7441CC 454Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1972 | Chevrolet | Corvette | Base Coupe 2-Door | 7.4L 7441CC 454Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1972 | Chevrolet | Corvette | Base Convertible 2-Door | 7.4L 454Cu. In. V8 GAS Naturally Aspirated | |
| 1973 | Chevrolet | Corvette | Base Convertible 2-Door | 7.4L 7439CC 454Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1973 | Chevrolet | Corvette | Base Convertible 2-Door | 7.4L 7441CC 454Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1973 | Chevrolet | Corvette | Base Coupe 2-Door | 7.4L 7439CC 454Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1973 | Chevrolet | Corvette | Base Coupe 2-Door | 7.4L 7441CC 454Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1973 | Chevrolet | Corvette | Base Coupe 2-Door | 7.4L 454Cu. In. V8 GAS Naturally Aspirated | |
| 1973 | Chevrolet | Corvette | Base Convertible 2-Door | 7.4L 454Cu. In. V8 GAS Naturally Aspirated | |
| 1974 | Chevrolet | Corvette | Base Coupe 2-Door | 7.4L 7439CC 454Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1974 | Chevrolet | Corvette | Base Convertible 2-Door | 7.4L 454Cu. In. V8 GAS Naturally Aspirated | |
| 1974 | Chevrolet | Corvette | Base Coupe 2-Door | 7.4L 454Cu. In. V8 GAS Naturally Aspirated | |
| 1974 | Chevrolet | Corvette | Base Convertible 2-Door | 7.4L 7439CC 454Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1974 | Chevrolet | Corvette | Base Convertible 2-Door | 7.4L 7441CC 454Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1974 | Chevrolet | Corvette | Base Coupe 2-Door | 7.4L 7441CC 454Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1975 | Chevrolet | Corvette | Stingray Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1975 | Chevrolet | Corvette | Stingray Convertible 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1976 | Chevrolet | Corvette | Stingray Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1977 | Chevrolet | Corvette | Base Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1982 | Chevrolet | Corvette | Collector's Edition Hatchback 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated |
