Wilwood 68-74 Nova X-Body Front Disc Brake Kit 12" Plain Rotor Black Caliper

To make sure you receive your package, all items $500 and over are sent signature required

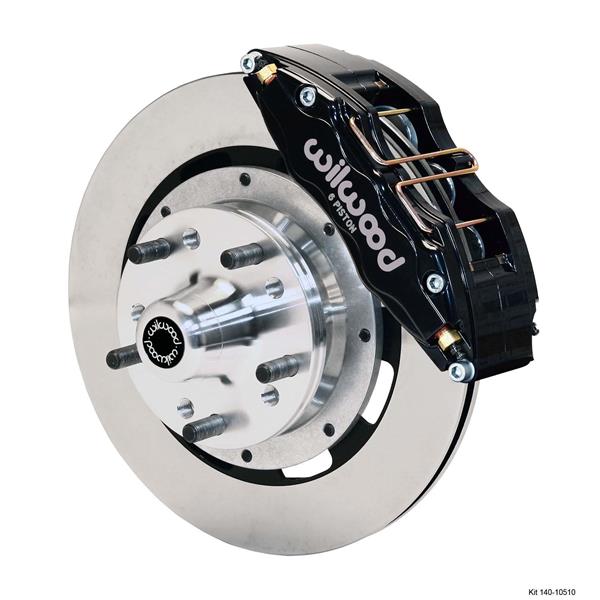

Dynapro 6 Big Brake Front Brake Kit (Hub)
HP 32 12.19" Vane Rotor / Black Powder Coated Caliper

This kit will move your wheels out .18 inches per side

The manufacturer advises the use of a 15" or larger wheels.

• Fits:
• 1968-1974 Chevrolet Nova
• 1973 - 1974 Buick Apollo
• 1973 - 1974 Oldsmobile Omega
• 1971 - 1974 Pontiac Ventura II

Mounts to Factory Drum or Disc Brake Spindle

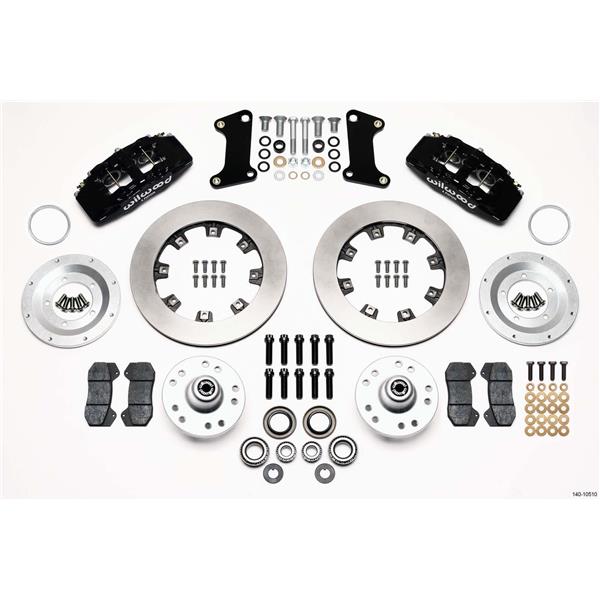

• Kit Includes:
• Pair of Ultralite HP 32 12.19" x .81" plain rotors - Vented for proper cooling


• Pair of Rotor Adapters with Bolts


• Aluminum Wheel Hub - Includes 5 x 4.5 and 5 x 4.75 Bolt Pattern


• Inner and outer bearings


• Inner seals


• Pair of caliper brackets


• NEW pair of Heavy Duty Dynapro Black Powder Coated 6 piston Calipers. Piston Area 5.06"


• Full set of Semi-Metallic pads Wilwood BP-10 Pad Compound great for street use and light track use.


• All necessary hardware (nuts bolts)


• Full Color instruction booklet

DynaPro 6 forged billet calipers are combined with 12.19 diameter rotors for this group of traditional non-ABS spindles on American muscle cars and vintage rods. The enhanced brake capacity and pad performance of the six piston calipers provide an intermediate level alternative to the bigger six piston kits. These kits compliment wheel, tire, and suspension upgrades on all types of custom show and high performance street / strip machines. A full range of caliper finishes and rotor designs enable the builder to personalize the style and optimize the brake performance for each individual application.

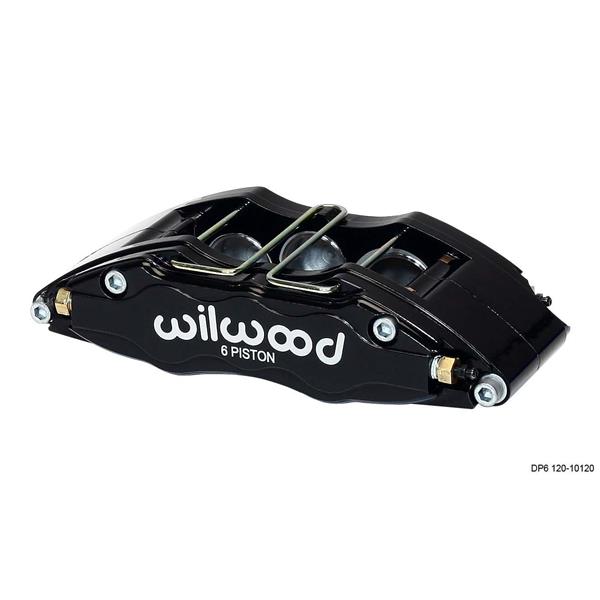

Dynapro 6 Piston Lug Mount Caliper

The DP6 marks a noteworthy step in the evolution of the DynaPro caliper series. DP6 calipers offer the performance advantages of a larger pad and a six piston differential bore configuration, with complete bolt-on interchange ability to the four piston 5.25" lug mount DynaPro models, and the long standing Dynalite caliper series.

As with the previous DynaPro models, the strength of the DP6 is a combination of process and design. Premium grade alloy billets are stress-flow forged resulting in a highly efficient, high strength body. Stress flow forging re-aligns the internal grain structure of the metal within the contour of the caliper body. This process is proven to provide superior strength over any other process derived from castings or straight billet block machining. FEA assisted solid modeling design technology was employed to find the optimum balance between lightweight with superior strength against deflection and body separation under high load.

In addition to the sturdy, yet stylish body, the DP6 incorporates race proven technology and the latest Wilwood performance enhancements. Pad clamping force is generated by six heavy wall stainless pistons configured in a leading to trailing edge differential bore pattern. The heavy wall pistons have been re-engineered to fully resist backside deflection at high pressures while maintaining balanced pad loading for even wear over the length of the pad. Stainless steel resists corrosion while inhibiting direct heat transfer from the pads to caliper body, seals, and fluid. Two choices for overall piston volume provide options to match caliper size with master cylinder output and bias requirements.

The DP6 uses the upgraded type 6712 pad that provide the larger overall volume size from the previous Dynalite and DynaPro four-piston models. The pads are retaining with exclusive Wilwood Quick-E clips for simplified pad service and maintenance without caliper removal. Stainless steel SRS bridge plates are used to dampen engagement harmonics, eliminate pad rattle, and protect the caliper bridges from gouging by the pad edges. Four corner bleeds and internal fluid passages accommodate front or rear mounting and simplified gas evacuation regardless of mounting position.

Standard DP6 calipers feature a high gloss black finish.

• Caliper Summary
• Pistons: 6


• Piston Area (in): 5.06


• Mount Type: Lug


• Brake Pad Area (in): 7.3
• Brake Pad Volume (in): 2.4
• Pad Compound: BP-10

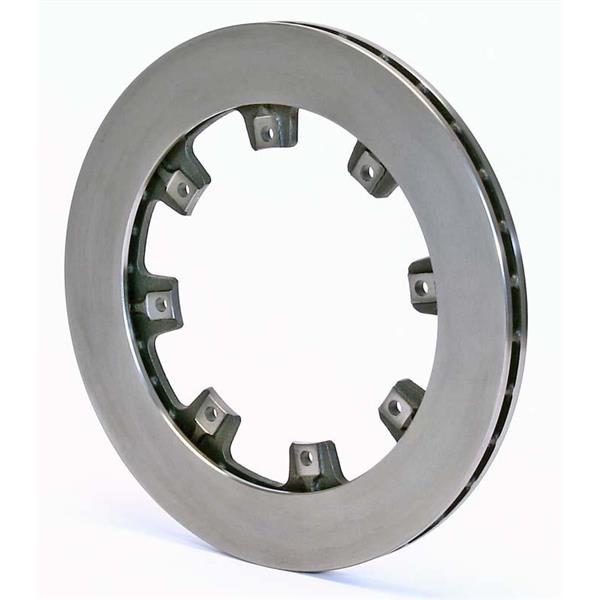

Ultralite HP 32 Vane Rotor

Ultra-Light ULHP-32 straight vane rotors provide an excellent balance of efficient cooling and lower rotating mass on hard braking dirt tracks or rear axle service on pavement cars. UL rotors are cast from premium grade, long grain carbon iron for long wear, high thermal stability, and resistance to distortion. ULHP-32 rotors offered the added performance and smoother operation of precision turned faces with less than .001" variation in flatness, parallelism, or run-out.

• Features:
• Premium grade, medium weight castings.
• Suitable for moderate temperature racing to street use.
• Surface Finish: Plain

• Rotor Dimensions:
• Width (in): .81
• Diameter (in): 12.19
• Rotor Bolt Circle (in): 8 x 7.00
• Rotor Mount Hole Size (in): 0.326
• Lug ID / Registration (in): 6.38
• Far Side Inside Diameter (in): 8.56
