Wilwood 64-74 Chevy 10/12 Bolt Rear Disc Brake Kit Drilled Red Stagg Caliper

To make sure you receive your package, all items $500 and over are sent signature required

Forged Dynalite Rear Parking Brake Kit
SRP 12.19" Drilled and Slotted Rotor / Red Powder Coated Caliper

The manufacturer advises the use of some 15" or larger wheels.

• ONLY FITS:

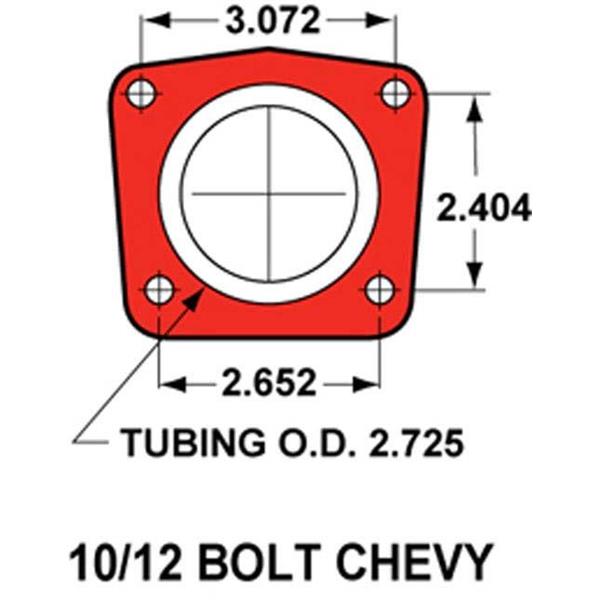

• Chevy 10 or 12 Bolt Rear End with 2.75" Axle Offset
• For OE C-Clip axles only. Does not support Special End or C-Clip Eliminator modifications
  Kit designed for staggered shock mount rear ends: R/H caliper is rear mount, L/H caliper is front mount.

Please measure your rear end Axle Flange as well as the Axle Offset Prior to Ordering to make sure this kit will fit on your car

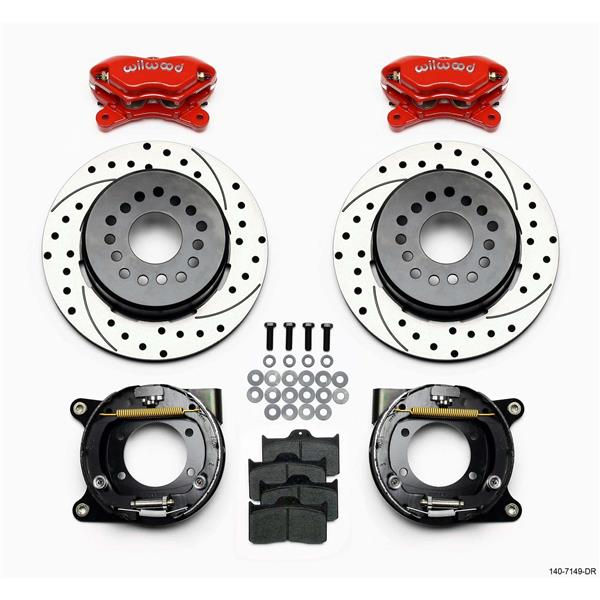

• Kit Includes:
• Pair of SRP 12.19" x .81" Drilled and Slotted rotors - Vented for proper cooling


• NEW pair of Forged Dynalite 4 piston Calipers. Piston Area 3.00"


• Internal Parking Brake with Caliper Bracket


• Full set of Semi-Metallic pads Wilwood BP-10 Pad Compound great for street use and light track use.


• All necessary hardware (nuts bolts)


• Full Color instruction booklet

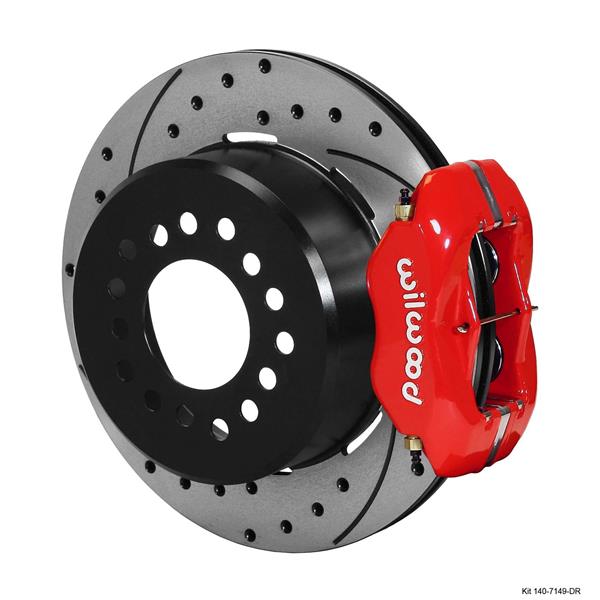

This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19 one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

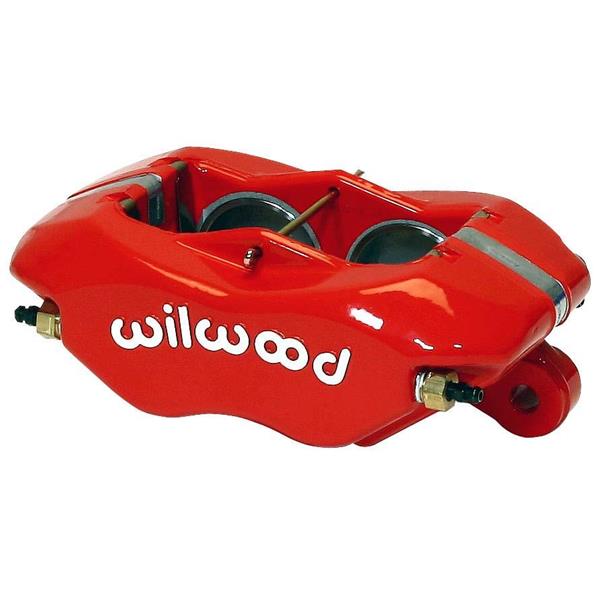

Forged Dynalite Four Piston Calipers:

Caliper Highlights:
The Forged Billet Dynalite has wide spread application over many forms over motorsports. It serves as the base model in the majority of Wilwood's Bolt-On Disc Brake Kits. The latest applied developments and innovations in caliper design and manufacturing processes have resulted in substantial improvements in strength and performance over all comparable models.

Forged Dynalites are the strongest calipers in the class, with weights starting at 2.80 pounds. The process of stress-flow forging re-aligns the metal's grain structure within the contour of the caliper body. This process eliminates the breaks and interruptions to the internal grain structure that occur when machining a straight block billet. The FEA generated radial transition design eliminates steps and shoulders in the area between the piston housing body and the caliper bridges. Incorporating a radius in this transition area substantially increases resistance to deflection and caliper separation under load. Structural deflection and volume displacement tests have proven the Forged Dynalite to outperform all existing styles of this popular caliper size. Without even considering the overall greater strength and reliability of the forging, the reduced deflection tendencies and the resulting decrease in fluid volume displacement translate to increased clamping efficiency with less pedal travel. The bottom line is a taller pedal and better stopping power.

The superior strength of this innovative design is combined with proven performance features from Wilwood's earlier designs. Each caliper is equipped with Wilwood's SRS stainless steel bridge plates. The SRS plates eliminate the bridge wear caused by pad gouging and extend the service life of the caliper body. The spring-loading action of the SRS plates also eliminates pad rattle and dampens the vibration harmonics that contribute to squeal under braking. Other standard Wilwood features include high temperature seals and stainless steel pistons to eliminate corrosion and retard heat transfer from the pads. Internal fluid passages eliminate the need for external tubes. Four corner bleed screws assure simple and effective air evacuation from the system and allow one caliper to be mounted in any front, rear, right or left position. Standard race calipers feature Wilwood's signature bright black anodized finish to resist corrosion and maintain their high tech style.

Forged Dynalite calipers are a direct replacement for all Wilwood Dynalite and similar competitive brand calipers with 5.25" centered mounting lugs. The Forged Dynalite uses the same 7112 type brake pad used in all earlier versions of this caliper. The full range of Wilwood pad compounds is available to match brake response and heat range to any application.

Total Piston Area (in): 3

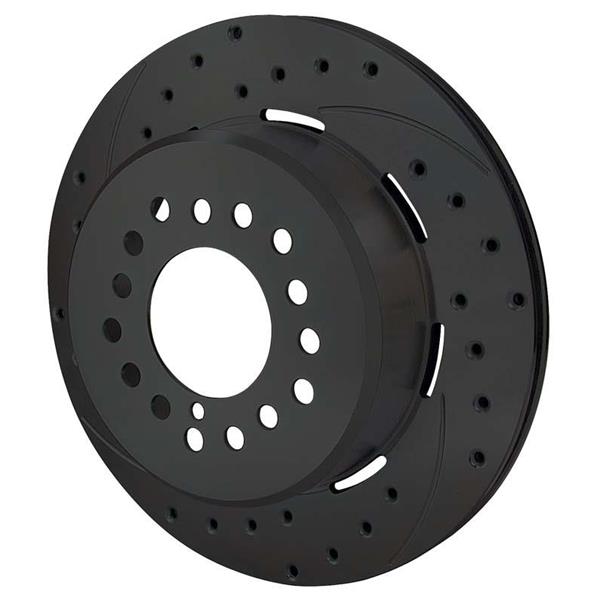

SRP Drilled Performance Rotor & Hat

For custom, show and high performance sport driving, SRP rotors offer the high tech look and improved performance of a directional cross-drill and face slot pattern. In addition to the aesthetic appeal, the venting and cleaning action of the hole and slot pattern helps to reduce pad glaze and minimize irregular pad build-up on the rotor faces. The results are a smoother engagement feel at the pedal and consistent response from the pads. Each rotor is precision machined to less than .001 tolerance for overall flatness, parallelism, and radial run-out on long grain carbon iron castings. The rotors are finished with a black electro coat to provide corrosion resistance.

• Features:
• Rear brake rotor for disc/drum internal parking brake kits.
• Rotor has been updated to new 3.06R register and will allow use of register ring adapters.
• Surface Finish: Drilled and Slotted

• Rotor Dimensions:
• Width (in): .81
• Diameter (in): 12.19
