Viking Front Double Adjustable Coilover Spring & Rear Shock Kit 68-74 Nova 550

To make sure you receive your package, all items $500 and over are sent signature required

Made in the USA!

Viking Performance
Double Adjustable Front Coil Overs
Rear Smooth Body Shock Kit
550 Spring Rate

• Application:
• 1968-1974 Chevrolet Nova
• 1973-1974 Oldsmobile Omega
• Small Block: Extreme Heavy Package
• Big Block: Handling Package

Please see application guide below to review
Handling / Weight - Spring Rate Chart

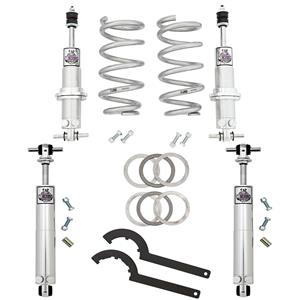

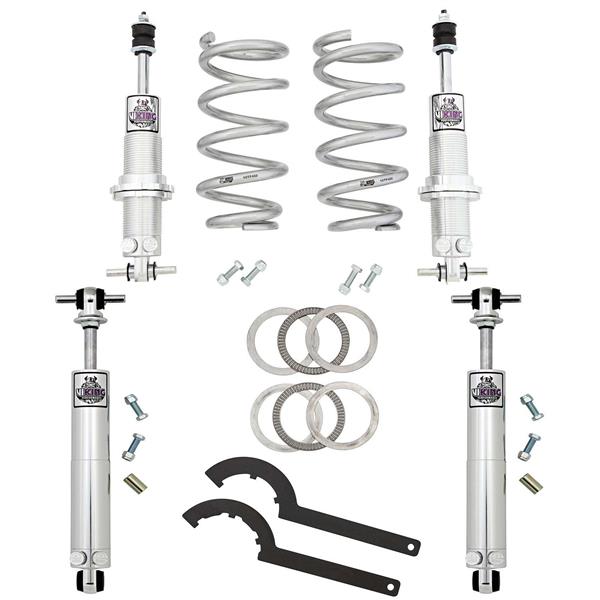

This front coil-over kit from Viking Performance comes with A224 double adjustable shocks, 10TP550 Specialty GM 550lb coil-over front springs, pair of smooth body rear shocks, and Spanner Wrench!

This kit is designed for Extreme Heavy duty use with a Small Block GM or Handling use with a Big Block GM! If you can't find the right kit for you, or have questions on which setup is best for your application, contact us and we'll be happy to see if we can put a kit together to fit your needs.

• About The A224 Viking Shocks
• Double Adjustable
• Upper Mount: Stud
• Lower Mount: Tear/Bearing
• Compressed Height: 8.83"
• Extended Height: 13.58"
• Shock Stroke: 4.75"
• Recommended Ride Height: 10 5/8"-11 3/4"

All Viking shocks are double adjustable allowing the user to independently adjust compression and rebound

Huge adjustment range allows the user to adjust settings for a comfortable cruising to high performance racing, and everything in between

Evenly spaced valving adjustments from click to click

19 positions of compression adjustment and 19 positions of rebound adjustment for a total of 361 different valving combinations

Lightweight aluminium twin-tube design with a sleek clear anodized finish

Adjustment knobs: Labeled with a "C" for compression and an "R" for rebound

Ride height adjustable. Increased range of ride height adjustment over most other brands. Tight tolerances on threads provides for easier ride height adjustments. Left hand threads between the base and the body ensures that the shock doesn't come apart when adjusting ride height, as can occur with certain other brands

Aluminium, precision machined piston with deflective disc technology and a PTFE / bronze piston seal

Three-step sealing system

5/8" hard chrome plated, centerless ground piston rod

Each shock is dyno tested and serialized (individual serial # on each shock)

All shocks can be rebuilt or revalved by the Viking factory or any authorized re-builder

Two year materials and workmanship warranty!

• About The B Series Rear Smooth Body Viking Shocks
• Double Adjustable 19 Positions of compression adjustment and 19 Positions of rebound adjustment for a total of 361 different valving combinations


• Lightweight aluminum construction with clear anodized finish




• Coil Springs
• Ultra-lightweight
• High travel
• High tensile spring steel
• Manufactured to precision tolerances
• Lifetime guaranteed to remain within 2% of the original free height and rate
• Made in the U.S.A.

• About The 10TP550 Viking Springs
• 550lb Rate
• Upper Inside Diameter: 3.50"
• Lower Inside Diameter: 2.50"
• Free Length: 10"
• End Style: Pigtail
• Powder Coated with a Chrome Appearance

Viking's ultra-lightweight, high travel springs are designed with an expanded body diameter for unsurpassed performance. Over a 25% weight savings over some other brands in the market!

Manufactured from high tensile spring steel with a sleek silver powder coat finish as standard!

Lengths and rates are clearly marked on springs

Lifetime guaranteed to remain within 2% of the original free height and rate under normal operating conditions. With Viking you will not get overlapping spring rates, like you may with manufacturers that only hold a 5% tolerance (a 2 1/2 times larger tolerance window than Viking!)

Images may not be for your exact application, but have the same appearance as the parts listed.

Due to weight differences in the Motor Size and Handling Behavior Viking has different part #'s for different Applictions.

• 250
• Small Block: Xtreme Light
• Big Block: N/A


• 350
• Small Block: Drag Race
• Big Block: Xtreme Light


• 450
• Small Block: Handling
• Big Block: Drag Race


• 550
• Small Block: Xtreme Heavy
• Big Block: Handling
• </UL

These spring rates are based off of stock suspension height and weight ratio's. If you have modified your motor / front end to lighten it (Aluminum Heads, Aluminum Serpentine, A/C Delete etc...) you will want a lower spring rate.

Please feel free to contact us to review what Spring Rate would be best for your application.
