Viking 93-02 Camaro Front Coilover Kit Double Adjustable Shock & Spring 550

$762.70
SKU: A226-550K

Availability: In stock

Handling Time: 30 Days

Details

To make sure you receive your package, all items $500 and over are sent signature required

Made in the USA!

Viking Performance Double Adjustable Front Coil Over
550 Spring Rate

  • Application:
  • 1993-2002 Chevrolet Camaro / Pontiac Firebird
    • Extreme Heavy Package

    Please see application guide below to review
    Handling - Spring Rate Chart

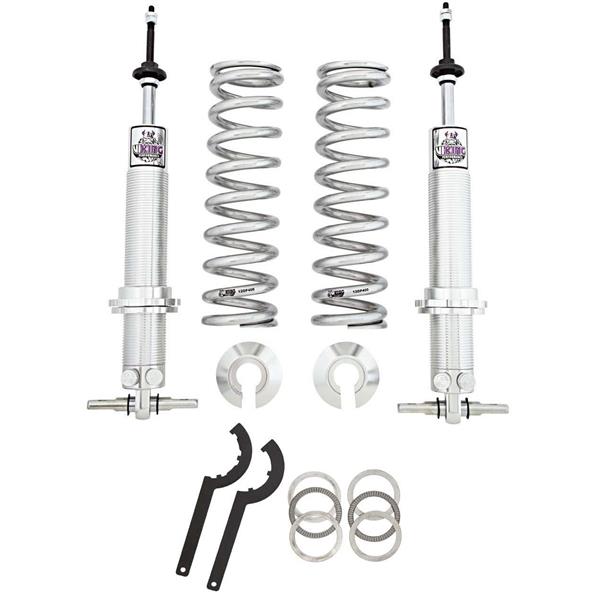

    This front coil-over kit from Viking Performance comes with A226 double adjustable shocks, 550lb coil-over springs, and Spanner Wrench!

    This kit is designed for Extreme Heavy use! If you can't find the right kit for you, or have questions on which setup is best for your application, contact us and we'll be happy to see if we can put a kit together to fit your needs.

    • About The A226 Viking Shocks
    • Double Adjustable
    • Upper Mount: Stud
    • Lower Mount: T-Bar
    • Compressed Height: 14.22"
    • Extended Height: 19.52"
    • Shock Stroke: 5.30"
    • Recommended Ride Height: 16 3/8"-17 3/8"

    All Viking shocks are double adjustable allowing the user to independently adjust compression and rebound

    Huge adjustment range allows the user to adjust settings for a comfortable cruising to high performance racing, and everything in between

    Evenly spaced valving adjustments from click to click

    19 positions of compression adjustment and 19 positions of rebound adjustment for a total of 361 different valving combinations

    Lightweight aluminium twin-tube design with a sleek clear anodized finish

    Adjustment knobs: Labeled with a "C" for compression and an "R" for rebound

    Ride height adjustable. Increased range of ride height adjustment over most other brands. Tight tolerances on threads provides for easier ride height adjustments. Left hand threads between the base and the body ensures that the shock doesn't come apart when adjusting ride height, as can occur with certain other brands

    Aluminium, precision machined piston with deflective disc technology and a PTFE / bronze piston seal

    Three-step sealing system

    5/8" hard chrome plated, centerless ground piston rod

    Each shock is dyno tested and serialized (individual serial # on each shock)

    All shocks can be rebuilt or revalved by the Viking factory or any authorized re-builder

    Two year materials and workmanship warranty!

    • Coil Springs
    • Ultra-lightweight
    • High travel
    • High tensile spring steel
    • Manufactured to precision tolerances
    • Lifetime guaranteed to remain within 2% of the original free height and rate
    • Made in the U.S.A.

  • About The 550 Viking Springs
  • 550lb Rate
  • Free Length: 12"
  • Powder Coated with a Chrome Appearance

Viking's ultra-lightweight, high travel springs are designed with an expanded body diameter for unsurpassed performance. Over a 25% weight savings over some other brands in the market!

Manufactured from high tensile spring steel with a sleek silver powder coat finish as standard!

Lengths and rates are clearly marked on springs

Lifetime guaranteed to remain within 2% of the original free height and rate under normal operating conditions. With Viking you will not get overlapping spring rates, like you may with manufacturers that only hold a 5% tolerance (a 2 1/2 times larger tolerance window than Viking!)


Due to differences in Handling Behavior Viking has different part #'s for different Applictions.

  • 250
  • Small Block: Xtreme Light
  • 300
  • Small Block: Drag Race
  • 350
  • Small Block: Handling
  • 550
  • Small Block: Xtreme Heavy
  • These spring rates are based off of stock suspension height and weight ratio's. If you have modified your motor / front end to lighten it (Aluminum Heads, Aluminum Serpentine, A/C Delete etc...) you will want a lower spring rate.

    Please feel free to contact us to review what Spring Rate would be best for your application.


    Images may not be for your exact application, but have the same appearance as the parts listed.


    Viking Performance inc.specializes in rod end and spherical bearings, high performance shock absorbers, high travel coil springs, and related suspension components. Viking was founded in February, 2011, but its owners are anything but new to the industry. Between them, they have over 50 years of hands-on experience in the racing and performance aftermarket.

    Viking conducts all research and development, data acquisition, engineering, prototyping, shock assembly, dynomometer testing, pull testing, and select manufacturing in-house in our 25,000 sq. ft. facility. Viking's in-house engineering and product development team allows us to react quickly to changing market conditions, and our team members are all active enthusiasts and/or racers. They understand what you need from a performance company, and provide it with exceptional products, technical support and customer service.

Fitment Details

Year Make Model Trim Engine Notes
1993 Chevrolet Camaro Base Convertible 2-Door 3.4L 207Cu. In. V6 GAS OHV Naturally Aspirated
1994 Chevrolet Camaro Base Convertible 2-Door 3.4L 207Cu. In. V6 GAS OHV Naturally Aspirated
1995 Chevrolet Camaro Base Convertible 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1995 Chevrolet Camaro Base Convertible 2-Door 3.4L 207Cu. In. V6 GAS OHV Naturally Aspirated
1996 Chevrolet Camaro Base Convertible 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1997 Chevrolet Camaro Base Convertible 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1998 Chevrolet Camaro Base Convertible 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1999 Chevrolet Camaro Base Convertible 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
2000 Chevrolet Camaro Base Convertible 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
2001 Chevrolet Camaro Base Convertible 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
2002 Chevrolet Camaro Base Convertible 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1993 Pontiac Firebird Formula Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1993 Pontiac Firebird Base Coupe 2-Door 3.4L 207Cu. In. V6 GAS OHV Naturally Aspirated
1993 Pontiac Firebird Trans Am Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1994 Pontiac Firebird Formula Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1994 Pontiac Firebird Trans Am Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1994 Pontiac Firebird Trans Am Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1994 Pontiac Firebird Trans Am GT Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1994 Pontiac Firebird Formula Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1994 Pontiac Firebird Base Coupe 2-Door 3.4L 207Cu. In. V6 GAS OHV Naturally Aspirated
1994 Pontiac Firebird Base Convertible 2-Door 3.4L 207Cu. In. V6 GAS OHV Naturally Aspirated
1994 Pontiac Firebird Trans Am GT Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1995 Pontiac Firebird Formula Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1995 Pontiac Firebird Base Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1995 Pontiac Firebird Trans Am Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1995 Pontiac Firebird Base Convertible 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1995 Pontiac Firebird Formula Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1995 Pontiac Firebird Base Convertible 2-Door 3.4L 207Cu. In. V6 GAS OHV Naturally Aspirated
1995 Pontiac Firebird Trans Am Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1995 Pontiac Firebird Base Coupe 2-Door 3.4L 207Cu. In. V6 GAS OHV Naturally Aspirated
1996 Pontiac Firebird Formula Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1996 Pontiac Firebird Trans Am Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1996 Pontiac Firebird Base Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1996 Pontiac Firebird Base Convertible 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1996 Pontiac Firebird Formula Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1996 Pontiac Firebird Trans Am Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1997 Pontiac Firebird Formula Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1997 Pontiac Firebird Base Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1997 Pontiac Firebird Formula Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1997 Pontiac Firebird Trans Am Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1997 Pontiac Firebird Trans Am Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1997 Pontiac Firebird Base Convertible 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1998 Pontiac Firebird Formula Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1998 Pontiac Firebird Trans Am Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1998 Pontiac Firebird Base Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1998 Pontiac Firebird Formula Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1998 Pontiac Firebird Trans Am Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1998 Pontiac Firebird Base Convertible 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1999 Pontiac Firebird Base Convertible 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1999 Pontiac Firebird Trans Am Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1999 Pontiac Firebird Formula Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1999 Pontiac Firebird Base Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
1999 Pontiac Firebird Formula Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
1999 Pontiac Firebird Trans Am Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
2000 Pontiac Firebird Trans Am Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
2000 Pontiac Firebird Formula Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
2000 Pontiac Firebird Formula Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
2000 Pontiac Firebird Base Convertible 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
2000 Pontiac Firebird Base Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
2000 Pontiac Firebird Trans Am Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
2001 Pontiac Firebird Base Convertible 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
2001 Pontiac Firebird Base Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
2001 Pontiac Firebird Trans Am Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
2001 Pontiac Firebird Formula Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
2001 Pontiac Firebird Trans Am Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
2002 Pontiac Firebird Formula Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
2002 Pontiac Firebird Trans Am Coupe 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
2002 Pontiac Firebird Base Coupe 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
2002 Pontiac Firebird Trans Am Convertible 2-Door 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated
2002 Pontiac Firebird Base Convertible 2-Door 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated
