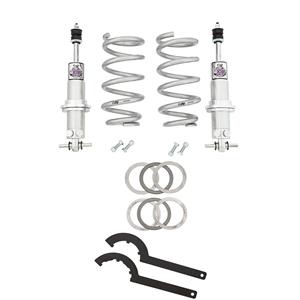

Viking Performance Double Adjustable Front Coil Over kit
with 450 Spring Rate
- Application:
- 1967-1969 Chevrolet Camaro/ 1967-1969 Pontiac Firebird

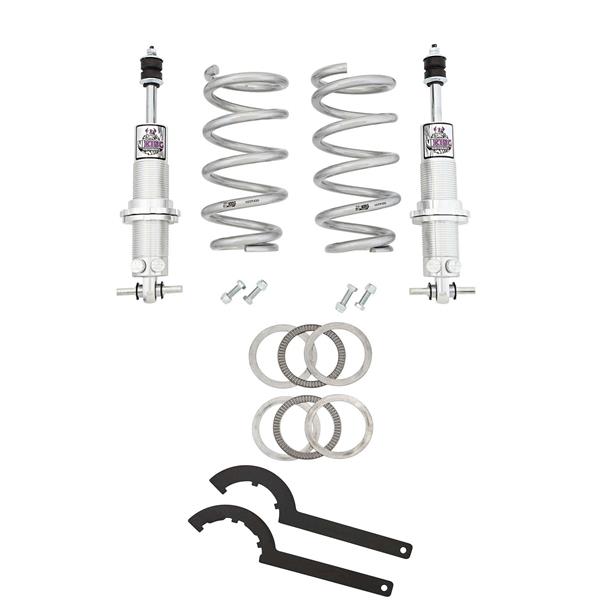

Kit Includes:
- Pair (2) front WARRIOR double adjustable bearing mount coil over shocks.
- Pair (2) Viking front coil springs with choice of 250, 350, 450 or 550 spring rate
- Spanner wrench and thrust bearing kit.
- (spanner wrench tool is used to adjust vehicle height while shock stays mounted and is required to make adjustments)
- Features:
-Viking coilovers work with either aftermarket tubular lower a-arm or your factory lower control a-arm.
-All Viking shocks are double adjustable allowing the user to independently adjust compression and rebound.
-Huge adjustment range allows the user to adjust settings for a comfortable cruising to high performance racing, and everything in between.
-Evenly spaced valving adjustments from click to click.
-19 positions of compression adjustment and 19 positions of rebound adjustment for a total of 361 different valving combinations.
-Lightweight aluminium twin-tube design with a sleek clear anodized finish.
-Adjustment knobs: Labeled with a "C" for compression and an "R" for rebound.
-Aluminium, precision machined piston with deflective disc technology and a PTFE / bronze piston seal.
-Three-step sealing system.
-5/8" hard chrome plated, centerless ground piston rod.
-Each shock is dyno tested and serialized (individual serial # on each shock).
- About The 10TP450 Viking Springs
- 450lb Rate
- Upper Inside Diameter: 3.50"
- Lower Inside Diameter: 2.50"
- Free Length: 10"
- End Style: Pigtail
- Powder Coated with a Chrome Appearance
- About The A224 Viking Shocks
- Double Adjustable
- Upper Mount: Stud
- Lower Mount: T-Bar
- Compressed Height: 8.83"
- Extended Height: 13.20"
- Shock Stroke: 4.37"
- Recommended Ride Height: 10 5/8"-11 3/8"
- Made in the U.S.A. from high tensile spring steel with a sleek silver powder coat finish as standard!
- Two year materials warranty.
Lengths and rates are clearly marked on springs.
Fitment Details
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| 1967 | Chevrolet | Camaro | Base Hardtop 2-Door | 5.3L 5358CC 327Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1967 | Chevrolet | Camaro | Base Hardtop 2-Door | 6.5L 6489CC 396Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1967 | Chevrolet | Camaro | Base Hardtop 2-Door | 4.1L 4098CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
| 1967 | Chevrolet | Camaro | Base Hardtop 2-Door | 3.8L 3769CC 230Cu. In. l6 GAS OHV Naturally Aspirated | |
| 1967 | Chevrolet | Camaro | Base Hardtop 2-Door | 4.1L 4097CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
| 1967 | Chevrolet | Camaro | Base Convertible 2-Door | 6.5L 6489CC 396Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1967 | Chevrolet | Camaro | RS Hardtop 2-Door | 3.8L 3769CC 230Cu. In. l6 GAS OHV Naturally Aspirated | |
| 1967 | Chevrolet | Camaro | RS Convertible 2-Door | 6.5L 6489CC 396Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1967 | Chevrolet | Camaro | RS Convertible 2-Door | 3.8L 3769CC 230Cu. In. l6 GAS OHV Naturally Aspirated | |
| 1967 | Chevrolet | Camaro | SS Hardtop 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1967 | Chevrolet | Camaro | RS Hardtop 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1967 | Chevrolet | Camaro | SS Hardtop 2-Door | 6.5L 6489CC 396Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1967 | Chevrolet | Camaro | RS Hardtop 2-Door | 4.1L 4097CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
| 1967 | Chevrolet | Camaro | SS Convertible 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1967 | Chevrolet | Camaro | Base Convertible 2-Door | 4.1L 4097CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
| 1967 | Chevrolet | Camaro | RS Hardtop 2-Door | 4.1L 4098CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
| 1967 | Chevrolet | Camaro | RS Hardtop 2-Door | 6.5L 6489CC 396Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1967 | Chevrolet | Camaro | RS Convertible 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1967 | Chevrolet | Camaro | Base Convertible 2-Door | 3.8L 3769CC 230Cu. In. l6 GAS OHV Naturally Aspirated | |
| 1967 | Chevrolet | Camaro | RS Convertible 2-Door | 4.1L 4098CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
| 1967 | Chevrolet | Camaro | Z28 Hardtop 2-Door | 4.9L 4949CC 302Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1967 | Chevrolet | Camaro | RS Convertible 2-Door | 5.3L 5358CC 327Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1967 | Chevrolet | Camaro | SS Convertible 2-Door | 6.5L 6489CC 396Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1967 | Chevrolet | Camaro | Base Convertible 2-Door | 4.1L 4098CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
| 1967 | Chevrolet | Camaro | Base Convertible 2-Door | 5.3L 5358CC 327Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1967 | Chevrolet | Camaro | RS Convertible 2-Door | 4.1L 4097CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
| 1967 | Chevrolet | Camaro | RS Hardtop 2-Door | 5.3L 5358CC 327Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1968 | Chevrolet | Camaro | Base Convertible 2-Door | 4.1L 4097CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
| 1968 | Chevrolet | Camaro | Base Convertible 2-Door | 4.1L 4098CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
| 1968 | Chevrolet | Camaro | Base Hardtop 2-Door | 5.4L 327Cu. In. V8 GAS Naturally Aspirated | |
| 1968 | Chevrolet | Camaro | Base Hardtop 2-Door | 4.1L 4097CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
| 1968 | Chevrolet | Camaro | Base Hardtop 2-Door | 3.8L 3769CC 230Cu. In. l6 GAS OHV Naturally Aspirated | |
| 1968 | Chevrolet | Camaro | Base Convertible 2-Door | 5.3L 5358CC 327Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1968 | Chevrolet | Camaro | Base Convertible 2-Door | 3.8L 3769CC 230Cu. In. l6 GAS OHV Naturally Aspirated | |
| 1968 | Chevrolet | Camaro | Base Hardtop 2-Door | 3.8L 230Cu. In. l6 GAS Naturally Aspirated | |
| 1968 | Chevrolet | Camaro | Base Hardtop 2-Door | 5.3L 5358CC 327Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1968 | Chevrolet | Camaro | Base Convertible 2-Door | 3.8L 230Cu. In. l6 GAS Naturally Aspirated | |
| 1968 | Chevrolet | Camaro | Base Convertible 2-Door | 5.4L 327Cu. In. V8 GAS Naturally Aspirated | |
| 1968 | Chevrolet | Camaro | Base Hardtop 2-Door | 4.1L 4098CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
| 1968 | Chevrolet | Camaro | RS Hardtop 2-Door | 5.3L 5358CC 327Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1968 | Chevrolet | Camaro | SS Hardtop 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1968 | Chevrolet | Camaro | SS Convertible 2-Door | 6.5L 396Cu. In. V8 GAS Naturally Aspirated | |
| 1968 | Chevrolet | Camaro | RS Convertible 2-Door | 3.8L 230Cu. In. l6 GAS Naturally Aspirated | |
| 1968 | Chevrolet | Camaro | RS Convertible 2-Door | 5.4L 327Cu. In. V8 GAS Naturally Aspirated | |
| 1968 | Chevrolet | Camaro | SS Hardtop 2-Door | 6.5L 396Cu. In. V8 GAS Naturally Aspirated | |
| 1968 | Chevrolet | Camaro | RS Convertible 2-Door | 3.8L 3769CC 230Cu. In. l6 GAS OHV Naturally Aspirated | |
| 1968 | Chevrolet | Camaro | RS Hardtop 2-Door | 4.1L 250Cu. In. l6 GAS Naturally Aspirated | |
| 1968 | Chevrolet | Camaro | RS Convertible 2-Door | 4.1L 4097CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
| 1968 | Chevrolet | Camaro | RS Hardtop 2-Door | 3.8L 230Cu. In. l6 GAS Naturally Aspirated | |
| 1968 | Chevrolet | Camaro | RS Hardtop 2-Door | 4.1L 4097CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
| 1968 | Chevrolet | Camaro | SS Convertible 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1968 | Chevrolet | Camaro | RS Convertible 2-Door | 5.3L 5358CC 327Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1968 | Chevrolet | Camaro | RS Hardtop 2-Door | 5.4L 327Cu. In. V8 GAS Naturally Aspirated | |
| 1968 | Chevrolet | Camaro | RS Hardtop 2-Door | 4.1L 4098CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
| 1968 | Chevrolet | Camaro | RS Hardtop 2-Door | 3.8L 3769CC 230Cu. In. l6 GAS OHV Naturally Aspirated | |
| 1968 | Chevrolet | Camaro | SS Hardtop 2-Door | 6.5L 6489CC 396Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1968 | Chevrolet | Camaro | RS Convertible 2-Door | 4.1L 4098CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
| 1968 | Chevrolet | Camaro | Z28 Hardtop 2-Door | 4.9L 4949CC 302Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1968 | Chevrolet | Camaro | SS Convertible 2-Door | 6.5L 6489CC 396Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1968 | Chevrolet | Camaro | RS Convertible 2-Door | 4.1L 250Cu. In. l6 GAS Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | Base Hardtop 2-Door | 3.8L 3769CC 230Cu. In. l6 GAS OHV Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | Base Convertible 2-Door | 5.0L 5031CC 307Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | Base Hardtop 2-Door | 5.0L 307Cu. In. V8 GAS Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | Base Convertible 2-Door | 5.0L 307Cu. In. V8 GAS Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | Base Hardtop 2-Door | 7.0L 427Cu. In. V8 GAS Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | Base Convertible 2-Door | 3.8L 230Cu. In. l6 GAS Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | Base Convertible 2-Door | 7.0L 427Cu. In. V8 GAS Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | Base Convertible 2-Door | 5.3L 5358CC 327Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | Base Convertible 2-Door | 5.4L 327Cu. In. V8 GAS Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | Base Hardtop 2-Door | 5.3L 5358CC 327Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | Base Convertible 2-Door | 4.1L 4098CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | Base Hardtop 2-Door | 7.0L 6998CC 427Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | Base Hardtop 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | Base Hardtop 2-Door | 3.8L 230Cu. In. l6 GAS Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | Base Convertible 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | Base Hardtop 2-Door | 5.0L 5031CC 307Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | Base Hardtop 2-Door | 4.1L 4097CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | Base Hardtop 2-Door | 5.4L 327Cu. In. V8 GAS Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | Base Convertible 2-Door | 3.8L 3769CC 230Cu. In. l6 GAS OHV Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | Z28 Hardtop 2-Door | 4.9L 4949CC 302Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | Base Convertible 2-Door | 7.0L 6998CC 427Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | Base Hardtop 2-Door | 4.1L 4098CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | Base Convertible 2-Door | 4.1L 4097CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | RS Convertible 2-Door | 4.1L 4098CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | RS Convertible 2-Door | 5.4L 327Cu. In. V8 GAS Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | RS Hardtop 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | RS Convertible 2-Door | 4.1L 4097CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | RS Convertible 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | RS Convertible 2-Door | 7.0L 6998CC 427Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | RS Convertible 2-Door | 5.0L 5031CC 307Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | SS Convertible 2-Door | 6.5L 6489CC 396Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | RS Hardtop 2-Door | 5.0L 5031CC 307Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | RS Hardtop 2-Door | 7.0L 427Cu. In. V8 GAS Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | RS Hardtop 2-Door | 3.8L 3769CC 230Cu. In. l6 GAS OHV Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | RS Convertible 2-Door | 7.0L 427Cu. In. V8 GAS Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | SS Hardtop 2-Door | 6.5L 6489CC 396Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | RS Hardtop 2-Door | 3.8L 230Cu. In. l6 GAS Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | RS Hardtop 2-Door | 4.1L 4098CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | RS Hardtop 2-Door | 5.4L 327Cu. In. V8 GAS Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | RS Hardtop 2-Door | 4.1L 4097CC 250Cu. In. l6 GAS OHV Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | RS Convertible 2-Door | 5.3L 5358CC 327Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | RS Hardtop 2-Door | 5.3L 5358CC 327Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | RS Hardtop 2-Door | 5.0L 307Cu. In. V8 GAS Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | RS Hardtop 2-Door | 7.0L 6998CC 427Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | RS Convertible 2-Door | 3.8L 230Cu. In. l6 GAS Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | RS Convertible 2-Door | 5.0L 307Cu. In. V8 GAS Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | SS Hardtop 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | RS Convertible 2-Door | 3.8L 3769CC 230Cu. In. l6 GAS OHV Naturally Aspirated | |
| 1969 | Chevrolet | Camaro | SS Convertible 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1967 | Pontiac | Firebird | Base Convertible 2-Door | 6.6L 6555CC 400Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1967 | Pontiac | Firebird | Base Convertible 2-Door | 5.3L 5343CC 326Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1967 | Pontiac | Firebird | Base Convertible 2-Door | 6.6L 400Cu. In. V8 GAS Naturally Aspirated | |
| 1967 | Pontiac | Firebird | Base Coupe 2-Door | 3.8L 3769CC 230Cu. In. l6 GAS SOHC Naturally Aspirated | |
| 1967 | Pontiac | Firebird | Base Coupe 2-Door | 6.6L 6555CC 400Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1967 | Pontiac | Firebird | Base Convertible 2-Door | 3.8L 3769CC 230Cu. In. l6 GAS SOHC Naturally Aspirated | |
| 1967 | Pontiac | Firebird | Base Coupe 2-Door | 6.6L 400Cu. In. V8 GAS Naturally Aspirated | |
| 1967 | Pontiac | Firebird | Base Coupe 2-Door | 5.3L 5343CC 326Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1968 | Pontiac | Firebird | Base Coupe 2-Door | 5.7L 5733CC 350Cu. In. V8 GAS Naturally Aspirated | |
| 1968 | Pontiac | Firebird | Base Coupe 2-Door | 4.1L 4098CC 250Cu. In. l6 GAS SOHC Naturally Aspirated | |
| 1968 | Pontiac | Firebird | Base Convertible 2-Door | 6.6L 400Cu. In. V8 GAS Naturally Aspirated | |
| 1968 | Pontiac | Firebird | Base Coupe 2-Door | 6.6L 400Cu. In. V8 GAS Naturally Aspirated | |
| 1968 | Pontiac | Firebird | Base Convertible 2-Door | 6.6L 6555CC 400Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1968 | Pontiac | Firebird | Base Convertible 2-Door | 4.1L 4098CC 250Cu. In. l6 GAS SOHC Naturally Aspirated | |
| 1968 | Pontiac | Firebird | Base Convertible 2-Door | 4.1L 4097CC 250Cu. In. l6 GAS SOHC Naturally Aspirated | |
| 1968 | Pontiac | Firebird | Base Coupe 2-Door | 6.6L 6555CC 400Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1968 | Pontiac | Firebird | Base Convertible 2-Door | 5.7L 5733CC 350Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1968 | Pontiac | Firebird | Base Coupe 2-Door | 4.1L 4097CC 250Cu. In. l6 GAS SOHC Naturally Aspirated | |
| 1968 | Pontiac | Firebird | Base Coupe 2-Door | 5.7L 5733CC 350Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1968 | Pontiac | Firebird | Base Convertible 2-Door | 5.7L 5733CC 350Cu. In. V8 GAS Naturally Aspirated | |
| 1969 | Pontiac | Firebird | Base Convertible 2-Door | 5.7L 5733CC 350Cu. In. V8 GAS Naturally Aspirated | |
| 1969 | Pontiac | Firebird | Base Convertible 2-Door | 4.1L 4097CC 250Cu. In. l6 GAS SOHC Naturally Aspirated | |
| 1969 | Pontiac | Firebird | Base Convertible 2-Door | 4.1L 4098CC 250Cu. In. l6 GAS SOHC Naturally Aspirated | |
| 1969 | Pontiac | Firebird | Base Convertible 2-Door | 6.6L 400Cu. In. V8 GAS Naturally Aspirated | |
| 1969 | Pontiac | Firebird | Base Convertible 2-Door | 5.7L 5733CC 350Cu. In. V8 GAS OHV Naturally Aspirated | |
| 1969 | Pontiac | Firebird | Base Convertible 2-Door | 6.6L 6555CC 400Cu. In. V8 GAS OHV Naturally Aspirated |
Recently Viewed Products
