1993-1997 GM F-Body LT1 Front End Kit, Street- Stage 2

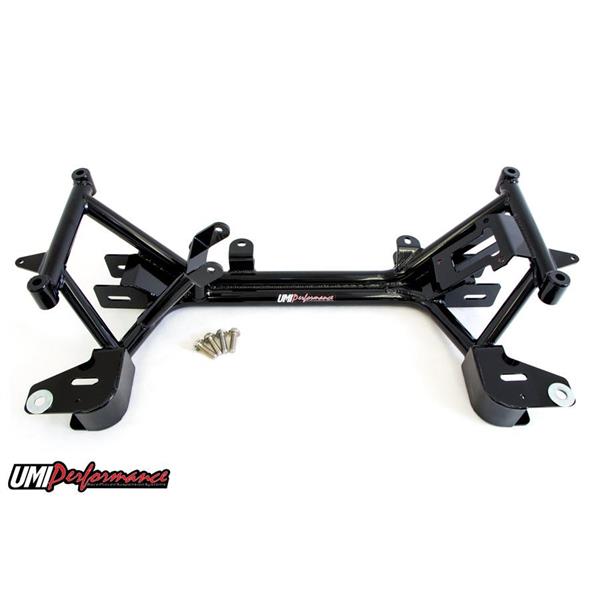

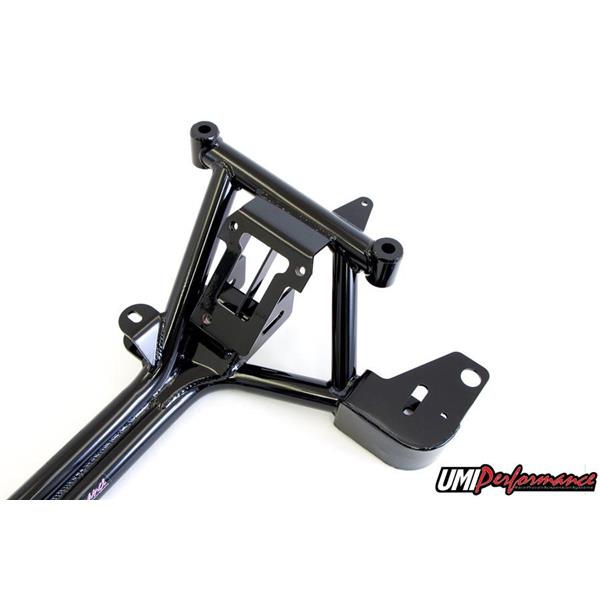

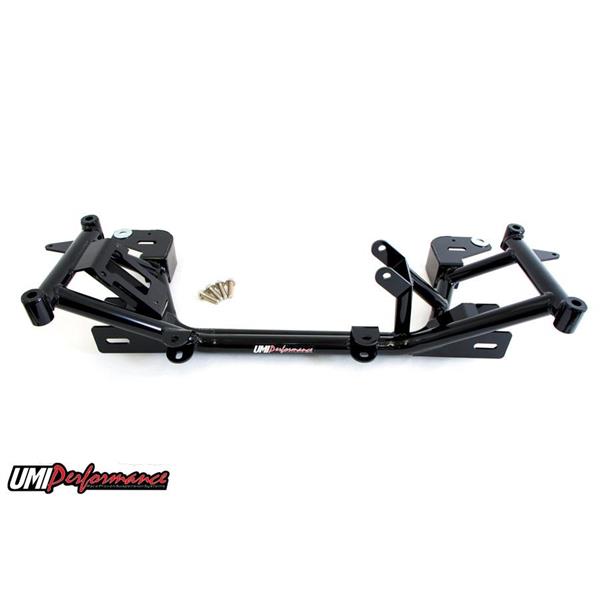

UMI’s Stage 2 kit provides a solid foundation for your street car used for drag strip duty. It features the best of both worlds combining weight reduction and strength with performance and comfort. Our dual tube k-member is known as the strongest in its class and can withstand wheel stand landings and street abuse while still shaving weight as well as protecting the oil pan. The P/N 2305 lower arms feature poly bushings on the straight strut portion to absorb road noise while the non-adjustable uppers guide the suspension on greaseable poly bushings. The upper and lower a-arms are assembled with premium ball joints and save an additional 8lbs of weight. UMI’s k-member and a-arms are built from strong USA DOM tubing, precision bent, CNC notched and welded in a jig to form a solid base. Included k-member is designed to work with factory motor mounts, polyurethane motor mounts or UMI’s popular solid billet aluminum motor mounts P/N 2323. The Stage 2 kit is a direct bolt in removing front end weight while maintaining street comfort and enhancing performance. Save $75.00 when purchasing these items as a kit.
Features:
Heavy Duty k-member with dual tube construction.
Tubular upper and lower a-arms with greaseable polyurethane bushings.
Premium upper and lower ball joints installed.
33lbs of front end weight savings.
CrMo a-arms save an additional 1-1/2lbs.
Works with factory steering rack.
Includes new grade 10.9 a-arm mounting hardware.
Direct bolt in replacement, no welding.
Manufactured in Philipsburg, PA- USA.
UMI’s Stage 2 Includes:
#2325- Tubular dual tube k-member.

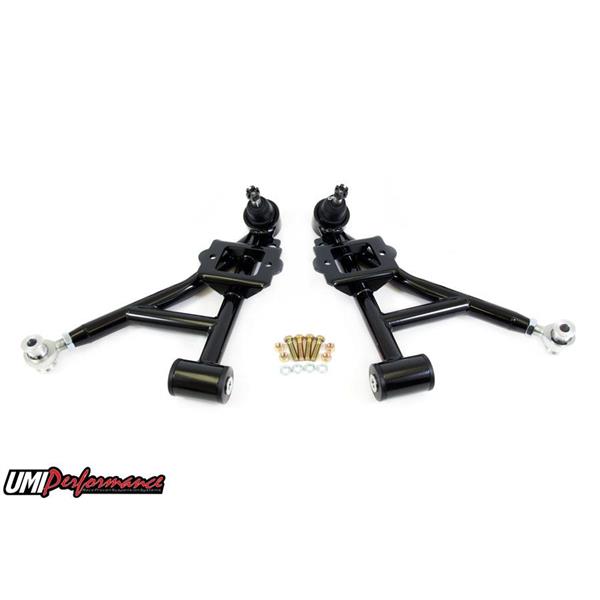

#2305- Tubular street lower a-arms.
#2311- Tubular street upper a-arms, polyurethane bushings.
#2303- Grade 10.9 hardware with Ny-lock nuts.
Fitment Details
Year | Make | Model | Trim | Engine | Notes |
---|---|---|---|---|---|
1993 | Chevrolet | Camaro | |||
1994 | Chevrolet | Camaro | |||
1995 | Chevrolet | Camaro | |||
1996 | Chevrolet | Camaro | |||
1997 | Chevrolet | Camaro | |||
1993 | Pontiac | Firebird | |||
1994 | Pontiac | Firebird | |||
1995 | Pontiac | Firebird | |||
1996 | Pontiac | Firebird | |||
1997 | Pontiac | Firebird |
