Details

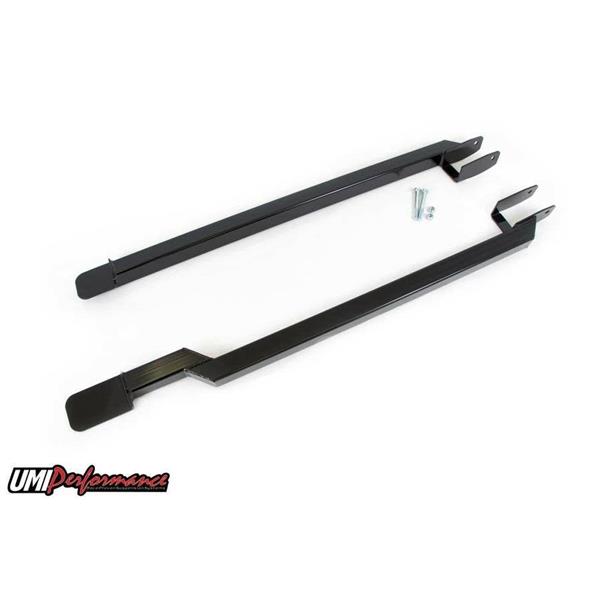

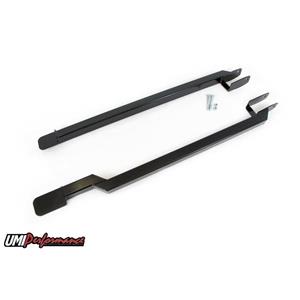

1993-2002 GM F-Body Boxed Style Weld-In Subframe Connectors

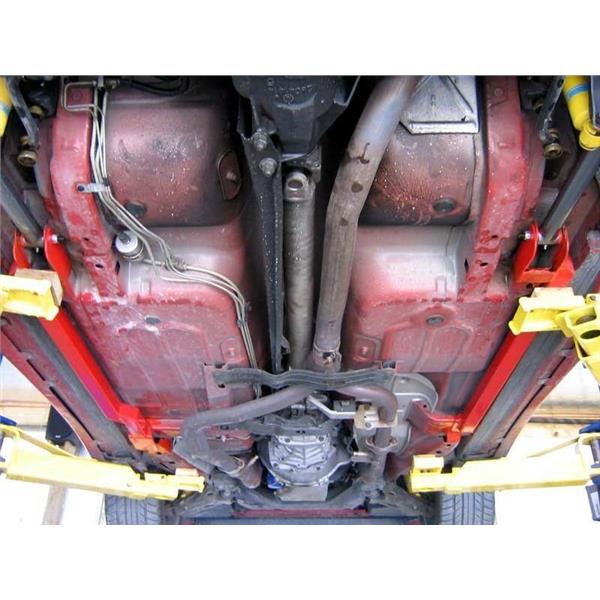

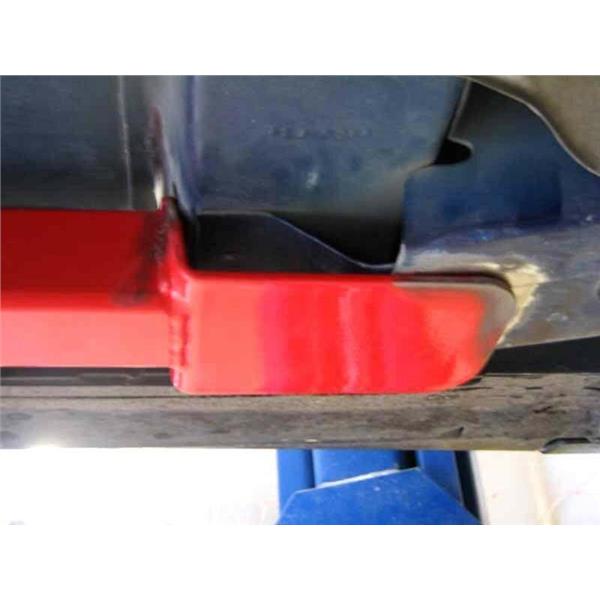

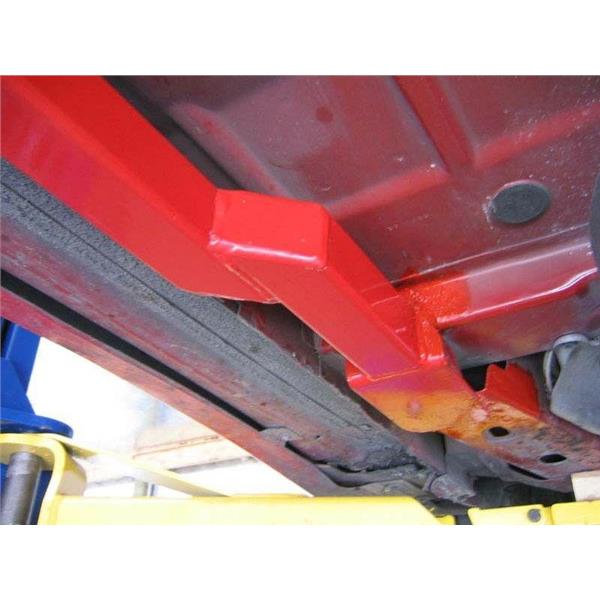

Minimize chassis flex and increase performance capabilities on your 1993-2002 GM F-Body with boxed style weld-in subframe connectors from UMI Performance. Subframe connectors are a must chassis upgrade when racing and hard driving habits are present. They greatly improve your car's handling ability while reducing t-top squeaks, dash rattles and quarter panel flexing. Subframe connectors essentially tie the front and rear steel subframes together, resulting in a stiffened and strengthened chassis, allowing better weight transfer and improved traction when launching. When strength is a concern, square tubing has greater torsion resistance over tubular designs. Will work with all aftermarket exhaust systems and does not effect ground clearance. This weld-in style requires no bolts to tighten ever and less chance of flex compared to bolt-in types.
Features:

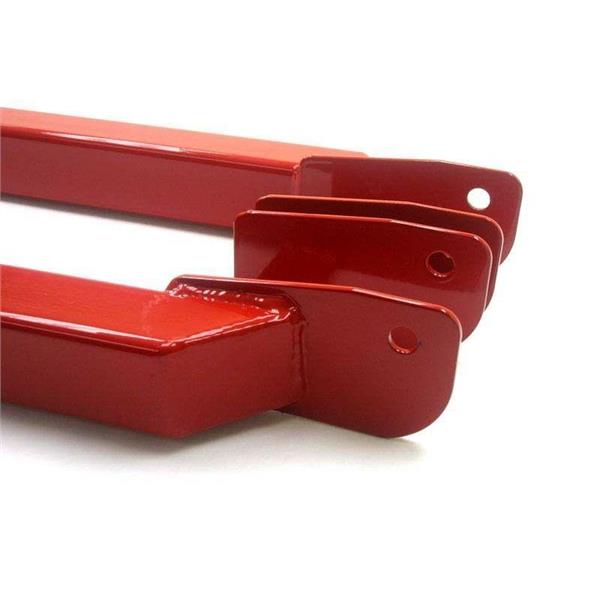

- Built using 2.000” x 2.000” x 0.120” Mild Steel Square Tubing
- CNC Machined 0.188” Thick Mild Steel Mounting Points

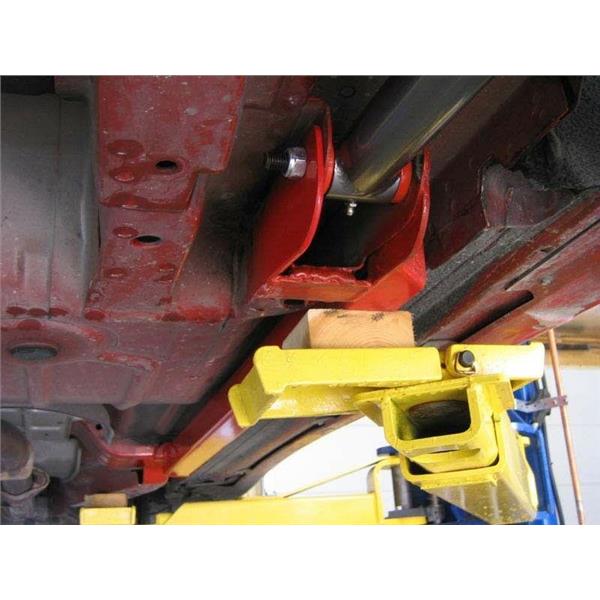

- Uses Control Arm Mounting Point for Increased Strength
- Precision MIG Welded Construction
- Brilliant Durable Powder Coat Finish
Installation:
Weld-in only, installs in approximately 2 hours, all necessary hardware and detailed installation instructions included.
Fitment Details
Year | Make | Model | Trim | Engine | Notes |
---|---|---|---|---|---|
1993 | Chevrolet | Camaro | Z28 Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | Excludes Convertible |
1993 | Chevrolet | Camaro | Z28 Convertible 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | Excludes Convertible |
1993 | Chevrolet | Camaro | Base Coupe 2-Door | 3.4L 207Cu. In. V6 GAS OHV Naturally Aspirated | Excludes Convertible |
1993 | Chevrolet | Camaro | Indianapolis 500 Pace Car Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | Excludes Convertible |
1994 | Chevrolet | Camaro | Z28 Convertible 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | Excludes Convertible |
1994 | Chevrolet | Camaro | Base Convertible 2-Door | 3.4L 207Cu. In. V6 GAS OHV Naturally Aspirated | Excludes Convertible |
1994 | Chevrolet | Camaro | Base Coupe 2-Door | 3.4L 207Cu. In. V6 GAS OHV Naturally Aspirated | Excludes Convertible |
1994 | Chevrolet | Camaro | Z28 Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | Excludes Convertible |
1995 | Chevrolet | Camaro | Z28 Convertible 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | Excludes Convertible |
1995 | Chevrolet | Camaro | Z28 Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | Excludes Convertible |
1995 | Chevrolet | Camaro | Base Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | Excludes Convertible |
1995 | Chevrolet | Camaro | Base Convertible 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | Excludes Convertible |
1995 | Chevrolet | Camaro | Base Coupe 2-Door | 3.4L 207Cu. In. V6 GAS OHV Naturally Aspirated | Excludes Convertible |
1995 | Chevrolet | Camaro | Base Convertible 2-Door | 3.4L 207Cu. In. V6 GAS OHV Naturally Aspirated | Excludes Convertible |
1996 | Chevrolet | Camaro | Base Convertible 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | Excludes Convertible |
1996 | Chevrolet | Camaro | RS Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | Excludes Convertible |
1996 | Chevrolet | Camaro | Z28 Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | Excludes Convertible |
1996 | Chevrolet | Camaro | Base Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | Excludes Convertible |
1996 | Chevrolet | Camaro | Lujo Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | Excludes Convertible |
1997 | Chevrolet | Camaro | RS Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | Excludes Convertible |
1997 | Chevrolet | Camaro | Base Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | Excludes Convertible |
1997 | Chevrolet | Camaro | Z28 Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | Excludes Convertible |
1997 | Chevrolet | Camaro | Lujo Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | Excludes Convertible |
1998 | Chevrolet | Camaro | Base Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | Excludes Convertible |
1998 | Chevrolet | Camaro | Z28 Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | Excludes Convertible |
1998 | Chevrolet | Camaro | Lujo Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | Excludes Convertible |
1998 | Chevrolet | Camaro | Z28 SS Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | Excludes Convertible |
1999 | Chevrolet | Camaro | Z28 Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | Excludes Convertible |
1999 | Chevrolet | Camaro | Z28 SS Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | Excludes Convertible |
1999 | Chevrolet | Camaro | Base Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | Excludes Convertible |
2000 | Chevrolet | Camaro | Z28 Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | Excludes Convertible |
2000 | Chevrolet | Camaro | Base Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | Excludes Convertible |
2000 | Chevrolet | Camaro | Z28 SS Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | Excludes Convertible |
2001 | Chevrolet | Camaro | Z28 Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | Excludes Convertible |
2001 | Chevrolet | Camaro | Base Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | Excludes Convertible |
2001 | Chevrolet | Camaro | Z28 SS Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | Excludes Convertible |
2002 | Chevrolet | Camaro | Z28 Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | Excludes Convertible |
2002 | Chevrolet | Camaro | Base Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | Excludes Convertible |
2002 | Chevrolet | Camaro | Z28 SS Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | Excludes Convertible |
1993 | Pontiac | Firebird | Formula Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | Excludes Convertible |
1993 | Pontiac | Firebird | Base Coupe 2-Door | 3.4L 207Cu. In. V6 GAS OHV Naturally Aspirated | Excludes Convertible |
1993 | Pontiac | Firebird | Trans Am Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | Excludes Convertible |
1994 | Pontiac | Firebird | Formula Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | Excludes Convertible |
1994 | Pontiac | Firebird | Trans Am Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | Excludes Convertible |
1994 | Pontiac | Firebird | Base Coupe 2-Door | 3.4L 207Cu. In. V6 GAS OHV Naturally Aspirated | Excludes Convertible |
1994 | Pontiac | Firebird | Trans Am GT Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | Excludes Convertible |
1995 | Pontiac | Firebird | Base Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | Excludes Convertible |
1995 | Pontiac | Firebird | Trans Am Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | Excludes Convertible |
1995 | Pontiac | Firebird | Formula Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | Excludes Convertible |
1995 | Pontiac | Firebird | Base Coupe 2-Door | 3.4L 207Cu. In. V6 GAS OHV Naturally Aspirated | Excludes Convertible |
1996 | Pontiac | Firebird | Formula Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | Excludes Convertible |
1996 | Pontiac | Firebird | Base Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | Excludes Convertible |
1996 | Pontiac | Firebird | Base Convertible 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | Excludes Convertible |
1996 | Pontiac | Firebird | Trans Am Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | Excludes Convertible |
1997 | Pontiac | Firebird | Formula Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | Excludes Convertible |
1997 | Pontiac | Firebird | Base Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | Excludes Convertible |
1997 | Pontiac | Firebird | Trans Am Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | Excludes Convertible |
1998 | Pontiac | Firebird | Formula Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | Excludes Convertible |
1998 | Pontiac | Firebird | Trans Am Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | Excludes Convertible |
1998 | Pontiac | Firebird | Base Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | Excludes Convertible |
1999 | Pontiac | Firebird | Trans Am Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | Excludes Convertible |
1999 | Pontiac | Firebird | Formula Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | Excludes Convertible |
1999 | Pontiac | Firebird | Base Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | Excludes Convertible |
2000 | Pontiac | Firebird | Formula Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | Excludes Convertible |
2000 | Pontiac | Firebird | Base Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | Excludes Convertible |
2000 | Pontiac | Firebird | Trans Am Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | Excludes Convertible |
2001 | Pontiac | Firebird | Base Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | Excludes Convertible |
2001 | Pontiac | Firebird | Formula Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | Excludes Convertible |
2001 | Pontiac | Firebird | Trans Am Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | Excludes Convertible |
2002 | Pontiac | Firebird | Formula Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | Excludes Convertible |
2002 | Pontiac | Firebird | Trans Am Coupe 2-Door | 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated | Excludes Convertible |
2002 | Pontiac | Firebird | Base Coupe 2-Door | 3.8L 3800CC 231Cu. In. V6 GAS OHV Naturally Aspirated | Excludes Convertible |
