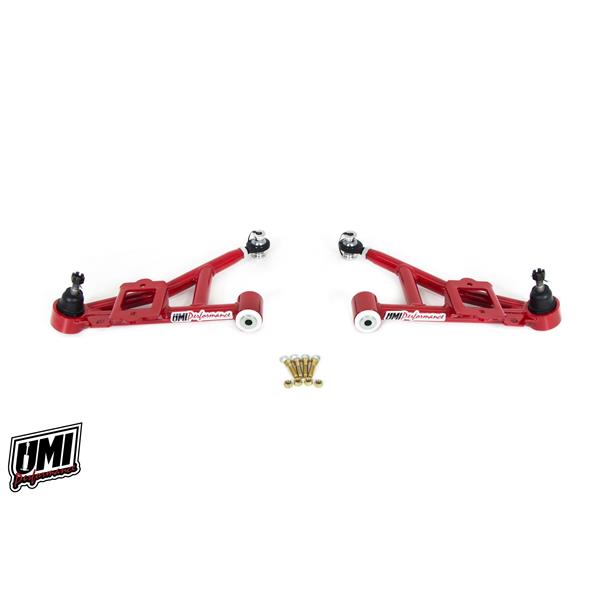

1993-2002 GM F-Body Tubular Front Lower A-Arms- Delrin, Street
UMI’s fabricated tubular a-arms provide a rock solid foundation for your 4th Gen’s front suspension. Our P/N 2307 a-arms are built to offer smooth travel, a precise steering feel, and an 8lb weight savings over stock. The DOM 1-1/4” diameter tubular sections are precision bent, CNC notched and TIG welded to the ball joint cup featuring our double strength configuration. UMI built 4130 CrMo tube adapters provide a durable attachment point for the high misalignment rod-end while the other side features an ultra smooth, bind free Delrin bushing. The combination of Delrin and rod end make for a performance oriented a-arm with street tendencies. The spring and shock attach to the arm via a tough 1/4” thick steel shock mount. The CNC machined ball joint cup is attached and a premium ball joint is installed. UMI’s tubular lower a-arms can be installed on the factory k-member or any aftermarket k-member as well as the factory spindle - making this a true bolt-on product. Manufactured with pride in Philipsburg, PA – USA.
Hardware kit P/N 2301 - A-arm hardware kit includes Grade 10.9 bolts, washers and locking nuts.
Features:
1-1/4” USA mild steel DOM tubing
TIG Welded 4130 CrMo threaded tube adapters for thread durability
CNC machined lower ball joint cup
Heavy duty CNC laser cut ¼” thick shock mount
Premium lower ball joints installed
Race quality high misalignment rod end on vertical joint
Greaseable Delrin bushings for precise handling (for ultimate street comfort use P/N 2305)
Quality shock mounting hardware included
Uses balance of OEM hardware or use UMI hardware kit P/N 2301
Durable red or black powder coat
Made in Philipsburg, PA – USA
Fitment Details
Year | Make | Model | Trim | Engine | Notes |
---|---|---|---|---|---|
1993 | Chevrolet | Camaro | |||
1994 | Chevrolet | Camaro | |||
1995 | Chevrolet | Camaro | |||
1996 | Chevrolet | Camaro | |||
1997 | Chevrolet | Camaro | |||
1998 | Chevrolet | Camaro | |||
1999 | Chevrolet | Camaro | |||
2000 | Chevrolet | Camaro | |||
2001 | Chevrolet | Camaro | |||
2002 | Chevrolet | Camaro | |||
1993 | Pontiac | Firebird | |||
1994 | Pontiac | Firebird | |||
1995 | Pontiac | Firebird | |||
1996 | Pontiac | Firebird | |||
1997 | Pontiac | Firebird | |||
1998 | Pontiac | Firebird | |||
1999 | Pontiac | Firebird | |||
2000 | Pontiac | Firebird | |||
2001 | Pontiac | Firebird | |||
2002 | Pontiac | Firebird |
