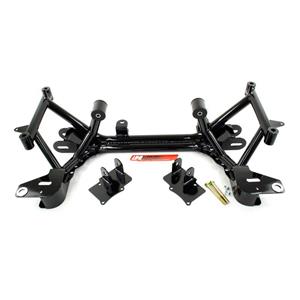

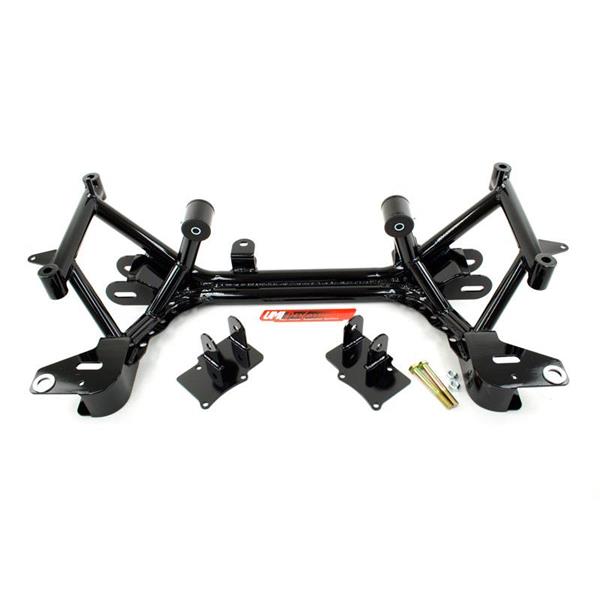

1993-2002 GM F-Body K-Member SBC/BBC Motor Mounts
The UMI Performance big block/small block K-member allows the installation of a traditional Chevrolet small block or big block into a 1993-2002 Camaro or Firebird. The UMI tubular K-member features integrated polyurethane mount mounts and fabricated mounting clam shells for maximum weight savings and installation ease. K-member includes power steering rack mounts and is a direct bolt in application.
Note: Although this K-member allows easy installation of a small block or big block Chevrolet engine modifications to firewall and other areas may be necessary for proper engine clearance.
Build Features:
- Main center tube constructed of 1.500” x 0.120” DOM seamless steel tubing
- Additional cross braces use 1.250” x 0.120” DOM seamless steel tubing
- Entire K-Member features both TIG & MIG welded construction for superior strength
- Front & rear A-Arm mounts CNC machined & fabricated from 0.188" thick steel
- Rear A-Arm mounts gusseted to with-stand extreme side loads & pressure
- Dual tube center section adds increased strength over any competitors design
- All mounting plates are CNC machined to ensure hole to hole accuracy
- Factory locator pins included for easy installation & exact fit
- Completely fixture welded to ensure factory fitment with no grinding or cutting
- Standard power steering rack mounts included
- Durable powder coat finish, available bright red or gloss black
K-Member Benefits:
- Automatically reduces 25lbs of front end weight
- Offers additional clearance for headers & turbo piping
- A-Arm slots lengthened a 1/2" over factory for additional adjustment
- Rear main cross tube lowered for oil pan protection & coverage
- Uses integrated motor mounts for maximum weight reduction
Fitment Details
Year | Make | Model | Trim | Engine | Notes |
---|---|---|---|---|---|
1993 | Chevrolet | Camaro | |||
1994 | Chevrolet | Camaro | |||
1995 | Chevrolet | Camaro | |||
1996 | Chevrolet | Camaro | |||
1997 | Chevrolet | Camaro | |||
1998 | Chevrolet | Camaro | |||
1999 | Chevrolet | Camaro | |||
2000 | Chevrolet | Camaro | |||
2001 | Chevrolet | Camaro | |||
2002 | Chevrolet | Camaro | |||
1993 | Pontiac | Firebird | |||
1994 | Pontiac | Firebird | |||
1995 | Pontiac | Firebird | |||
1996 | Pontiac | Firebird | |||
1997 | Pontiac | Firebird | |||
1998 | Pontiac | Firebird | |||
1999 | Pontiac | Firebird | |||
2000 | Pontiac | Firebird | |||
2001 | Pontiac | Firebird | |||
2002 | Pontiac | Firebird |
