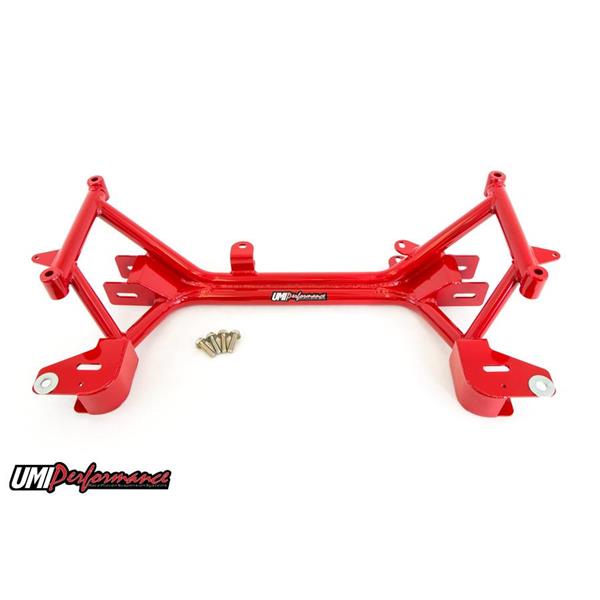

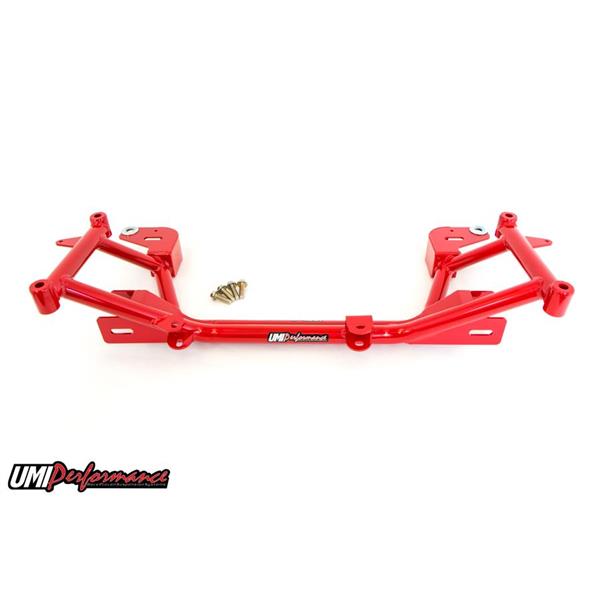

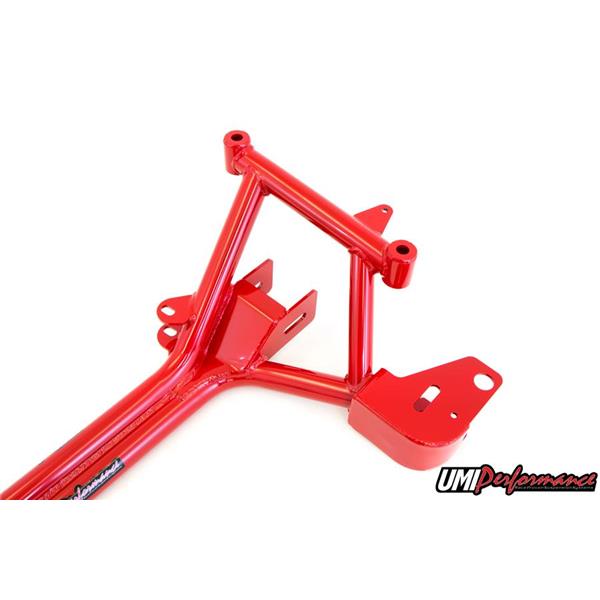

1993-2002 GM F-Body K-member- No Motor Mounts
UMI Performance k-member P/N 2318 is designed to be used in conjunction with motor plates and is supplied without motor mount stands. UMI P/N 2318 features power steering rack mounts and is designed to be used with factory power steering or manual racks that use the factory power steering mounts. UMI P/N 2318 is 30lbs lighter than the factory k-member and fits all 1993-2002 GM F-Bodies. P/N 2318 k-member is supplied bare metal or can be purchased powder coated red or black for an additional cost.
Build Features:
- Main center tube constructed of 1.500” x 0.120” DOM seamless steel tubing
- Additional cross braces use 1.250” x 0.120” DOM seamless steel tubing
- K-member Features Both TIG & MIG welded construction for superior strength
- Front & rear a-arm mounts CNC machined and fabricated from 0.188" thick steel
- Rear a-arm mounts gusseted to with-stand extreme side loads & pressure
- Dual tube center section adds increased strength over any competitors design
- All mounting plates are CNC machined to guarantee hole to hole accuracy
- Factory locator pins included for easy installation & exact fit
- Completely fixture welded for factory fitment with no grinding or cutting
- Durable Powder Coat available
K-Member Benefits:
- Automatically reduces front end weight by 30lbs
- Offers additional clearance for headers & turbo piping
- A-arm slots lengthened a 1/2" for additional adjustment when needed
- Rear main cross tube lowered for oil pan protection & coverage
Fitment Details
Year | Make | Model | Trim | Engine | Notes |
---|---|---|---|---|---|
1993 | Chevrolet | Camaro | |||
1994 | Chevrolet | Camaro | |||
1995 | Chevrolet | Camaro | |||
1996 | Chevrolet | Camaro | |||
1997 | Chevrolet | Camaro | |||
1998 | Chevrolet | Camaro | |||
1999 | Chevrolet | Camaro | |||
2000 | Chevrolet | Camaro | |||
2001 | Chevrolet | Camaro | |||
2002 | Chevrolet | Camaro | |||
1993 | Pontiac | Firebird | |||
1994 | Pontiac | Firebird | |||
1995 | Pontiac | Firebird | |||
1996 | Pontiac | Firebird | |||
1997 | Pontiac | Firebird | |||
1998 | Pontiac | Firebird | |||
1999 | Pontiac | Firebird | |||
2000 | Pontiac | Firebird | |||
2001 | Pontiac | Firebird | |||
2002 | Pontiac | Firebird |
