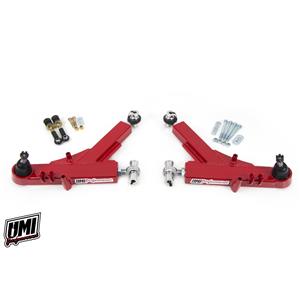

UMI Performance 93-02 Camaro Boxed Adjustable Lower A-Arms, Rod Ends

1993-2002 GM F-Body Boxed Adjustable Lower A-Arms, Rod Ends

UMI’s heavy duty boxed lower a-arms P/N 2309 with dual rod ends provides a rock-solid foundation for your autocross, road race or corner carving 4th Gen. The a-arms fully gusseted box tubing construction, while appearing robust, affords a five pound weight savings per set over factory lower a-arms. The tube adapters for mounting the rod ends are crafted from 4140 CrMo steel to enhance thread durability and guarantee years of trouble free use. Revised ball joint location adds a nominal 2 degree caster increase. These arms have double shear sway bar mount tabs with endlink set included. These A-arms are designed to work with the factory K-member, UMI k-members, and virtually all aftermarket K-members. Crafted with pride in Philipsburg, PA- USA.

Hardware kit, Part # 2301 - Lower a-arm hardware kit includes Grade 10.9 bolts, washers and lock nuts.

Product features:

0.120” wall mild steel box tubing

5lbs lighter than factory a-arms

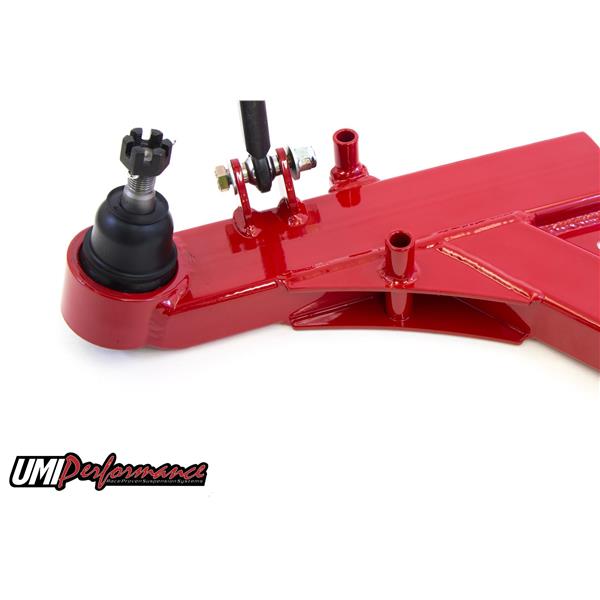

Double shear sway bar mount with endlink set included

Pedestal mount fits DeCarbon, Koni, Bilstein and aftermarket GM t-bar

Nominal 2 degree caster increase potential

Double gusset design for flex-free operation

TIG welded 4140 CrMo threaded tube adapters

Premium ball joints installed

Race quality high misalignment rod end on vertical mount

CNC machined ball joint cups, tubing radiuses & mounting plates

Available in red or black powder coat

Uses OEM hardware or UMI P/N 2301

100% Made In USA
