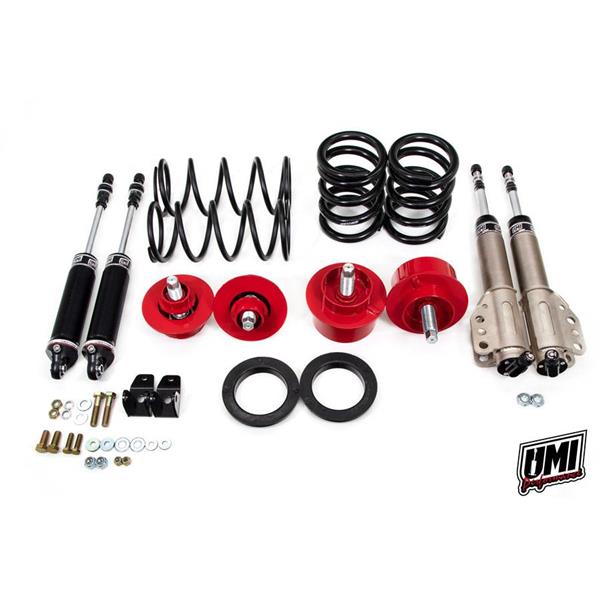

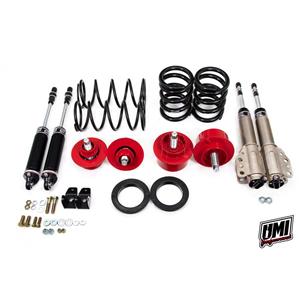

UMI Performance 82-92 GM F-Body Weight Jack and Shock Kit Front / Rear Race

UMI Performance 82-92 GM F-Body Weight Jack and Shock Kit Front / Rear Race

UMI's game changing complete front and rear strut, shock and weight jack kit provides industry leading ride height and damping adjustability in one complete package. The weight jacks are adjustable from factory to 2-½" lowering and feature race rates of 1050 front and 200 rear. Weight jack design features include easy 3/4" socket adjustment, thick laser cut plating and UMI's exclusive thrust bearing load distribution. The front struts are compression and rebound adjustable and feature a wide range of damping adjustment suitable for street/corner carving/auto-x and road race. The rear shocks are rebound adjustable and are also suitable for street/corner carving/auto-x and road race. Combined, these struts, shocks and weight jacks provide a world class solution to ride height and damping adjustment on the 3rd Gen. 100% Made In USA. Race proven with thousands of auto-x runs and road course laps.

Fitment Note:Rear kit works with factory rear end housing and Strange Engineering brand rear housings only. Minor grinding required on left axle pad.

UMI struts require UMI 2040 caster/camber plates. 2040 caster/camber plates purchased prior require updated bearing housing kit.

Features:

• Strong ¼ thick construction, CNC laser cut USA steel.
• Acme thread and thrust bearing for easy ride height adjustment.

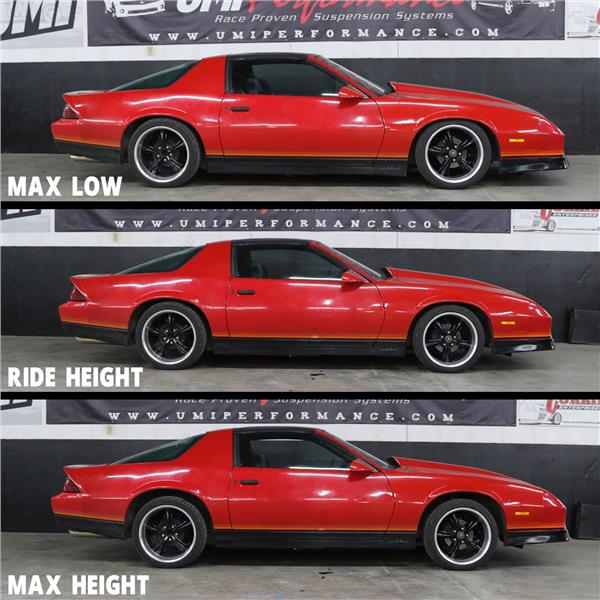

• 0 to 2-½ lowering.
• Adjustment completed easily with ratchet and ¾ socket.
• Anti-rotation tab.
• 175 lb/in premium racing spring.
• Allows independent corner weight tuning, essential for proper road race and auto-x handling.
• Rebound adjustable (digressive) monotube valving by UMI and Strano Performance.
• Medium-firm fixed compression, race oriented, street friendly.
• 150 psi monotube provides quick reaction and fade-free performance.
• Includes UMI P/N 2047 lower mounting brackets.
• Manufactured, tested and race proven in the USA.
