Details
1982-2002 GM F-Body Tubular Adjustable Lower Control Arms

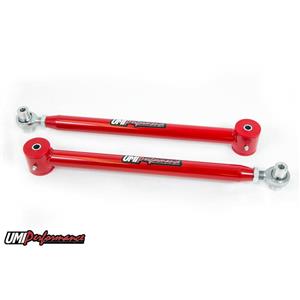

Replace your weak, factory stamped lower control arms with UMI's heavy duty tubular adjustable setup. These direct bolt-on replacements minimize wheel hop, improve cornering while lowering ET's and help track consistency. The spherical rod end allows for a "bind free" operation, making a great upgrade for both your track and auto cross driven car. The polyurethane bushings are designed to be bolted to the car chassis for a quiet comfortable operation. Control arms are constructed DOM mild steel tubing 1.375" OD x 0.095" wall, 4130 chromoly threaded tube adaptor, completely CNC machined and fully TIG welded for outstanding strength. Control arms feature Energy Suspension polyurethane bushings, zinc plated steel sleeves and "on-car" grease able zerk grease fittings. Adjustments can be made using the high quality QA1 Teflon lined spherical rod end that operates for a quiet bind free performance.
Features:
- 1.375" x 0.095" DOM Mild Steel Tubing
- 4130 Chrome-Moly Threaded Tube Adaptor
- QA1 3/4" Hard Chrome Plated, Teflon/Kevlar Self Lubricating Race Rod
End
- Complete Arm Features TIG Welded Construction
- CNC Machined 6061 Aluminum Step Bushings with Zinc Plated Steel Sleeves
- Energy Suspension Fluted Polyurethane grease able Bushings
- Uses OEM Hardware
Installation:

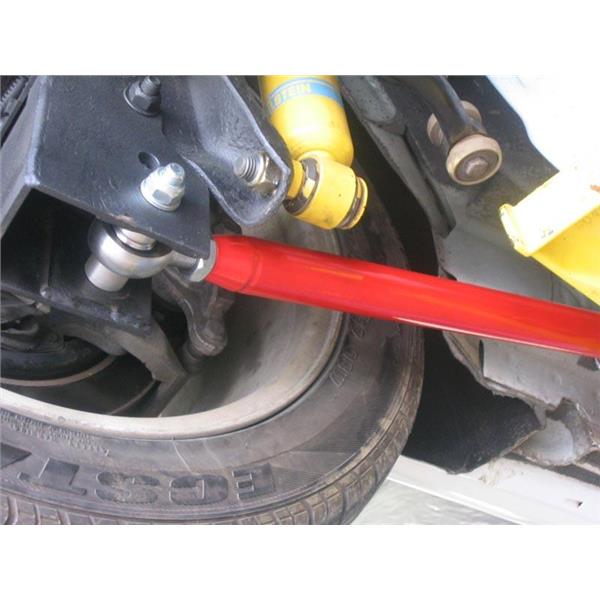

Installs in approximately 30 minutes in factory mounting points using OEM hardware, the poly end is designed to be bolted to the chassis for a quiet, comfortable operation.
*Chrome Moly version uses 1.250" x 0.095" 4130 Chrome Moly steel adding increased strength while reducing product weight.
Fitment Details
Year | Make | Model | Trim | Engine | Notes |
---|---|---|---|---|---|
1982 | Chevrolet | Camaro | |||
1983 | Chevrolet | Camaro | |||
1984 | Chevrolet | Camaro | |||
1985 | Chevrolet | Camaro | |||
1986 | Chevrolet | Camaro | |||
1987 | Chevrolet | Camaro | |||
1988 | Chevrolet | Camaro | |||
1989 | Chevrolet | Camaro | |||
1990 | Chevrolet | Camaro | |||
1991 | Chevrolet | Camaro | |||
1992 | Chevrolet | Camaro | |||
1993 | Chevrolet | Camaro | |||
1994 | Chevrolet | Camaro | |||
1995 | Chevrolet | Camaro | |||
1996 | Chevrolet | Camaro | |||
1997 | Chevrolet | Camaro | |||
1998 | Chevrolet | Camaro | |||
1999 | Chevrolet | Camaro | |||
2000 | Chevrolet | Camaro | |||
2001 | Chevrolet | Camaro | |||
2002 | Chevrolet | Camaro | |||
1982 | Pontiac | Firebird | |||
1983 | Pontiac | Firebird | |||
1984 | Pontiac | Firebird | |||
1985 | Pontiac | Firebird | |||
1986 | Pontiac | Firebird | |||
1987 | Pontiac | Firebird | |||
1988 | Pontiac | Firebird | |||
1989 | Pontiac | Firebird | |||
1990 | Pontiac | Firebird | |||
1991 | Pontiac | Firebird | |||
1992 | Pontiac | Firebird | |||
1993 | Pontiac | Firebird | |||
1994 | Pontiac | Firebird | |||
1995 | Pontiac | Firebird | |||
1996 | Pontiac | Firebird | |||
1997 | Pontiac | Firebird | |||
1998 | Pontiac | Firebird | |||
1999 | Pontiac | Firebird | |||
2000 | Pontiac | Firebird | |||
2001 | Pontiac | Firebird | |||
2002 | Pontiac | Firebird |
