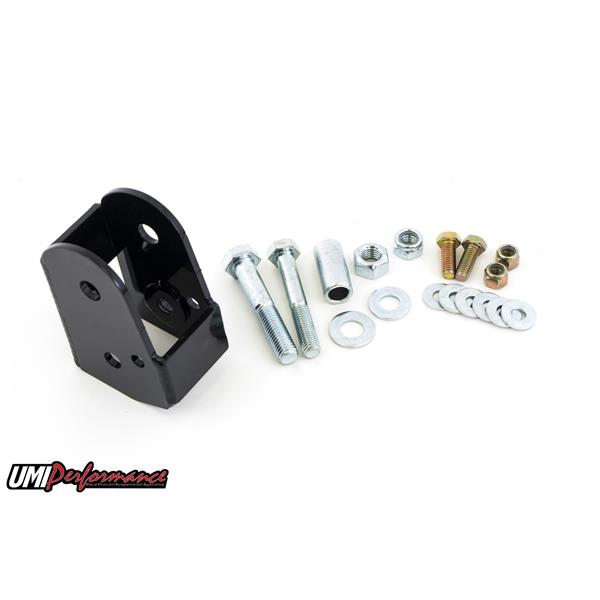

1982-2002 GM F-Body Panhard Bar Lowering Bracket
UMI’s 3rd and 4th Generation GM F-Body Panhard bar lowering bracket is designed to lower the driver’s side Panhard bar mounting point by 2-¼” and fits the factory axle. The 2063 works in conjunction with UMI P/N 2024 to prevent panhard bar interference on lowered vehicles. It can also be used to relocate when using other manufacturers panhard bar relocation kits. Requires drilling of two ⅜” holes for anti-rotation hardware. Available in gloss black powder coat only. 100% designed, manufactured and raced with pride in the USA.
Features:
For use with factory axle only. May fit Strange rear ends without modifications.
Lowers axle side (driver’s) PHB mount by 2-¼”.
100% bolt-in for street use.
Laser cut and jig built for accuracy.
Includes high grade hardware.
Supplied powder coated UMI Gloss Black.
Tech tip:
Works in conjunction with UMI P/N 2024 to prevent panhard bar brace and panhard bar contact on lowered vehicles.
Will work with other brand panhard bar relocation kits.
Fitment Details
Year | Make | Model | Trim | Engine | Notes |
---|---|---|---|---|---|
1982 | Chevrolet | Camaro | |||
1983 | Chevrolet | Camaro | |||
1984 | Chevrolet | Camaro | |||
1985 | Chevrolet | Camaro | |||
1986 | Chevrolet | Camaro | |||
1987 | Chevrolet | Camaro | |||
1988 | Chevrolet | Camaro | |||
1989 | Chevrolet | Camaro | |||
1990 | Chevrolet | Camaro | |||
1991 | Chevrolet | Camaro | |||
1992 | Chevrolet | Camaro | |||
1993 | Chevrolet | Camaro | |||
1994 | Chevrolet | Camaro | |||
1995 | Chevrolet | Camaro | |||
1996 | Chevrolet | Camaro | |||
1997 | Chevrolet | Camaro | |||
1998 | Chevrolet | Camaro | |||
1999 | Chevrolet | Camaro | |||
2000 | Chevrolet | Camaro | |||
2001 | Chevrolet | Camaro | |||
2002 | Chevrolet | Camaro | |||
1982 | Pontiac | Firebird | |||
1983 | Pontiac | Firebird | |||
1984 | Pontiac | Firebird | |||
1985 | Pontiac | Firebird | |||
1986 | Pontiac | Firebird | |||
1987 | Pontiac | Firebird | |||
1988 | Pontiac | Firebird | |||
1989 | Pontiac | Firebird | |||
1990 | Pontiac | Firebird | |||
1991 | Pontiac | Firebird | |||
1992 | Pontiac | Firebird | |||
1993 | Pontiac | Firebird | |||
1994 | Pontiac | Firebird | |||
1995 | Pontiac | Firebird | |||
1996 | Pontiac | Firebird | |||
1997 | Pontiac | Firebird | |||
1998 | Pontiac | Firebird | |||
1999 | Pontiac | Firebird | |||
2000 | Pontiac | Firebird | |||
2001 | Pontiac | Firebird | |||
2002 | Pontiac | Firebird |
