UMI Performance 78-96 Impala Boxed Lower Control Arms- Poly/Roto-Joint

$329.99
SKU: 3626-R

Availability: In stock

Handling Time: 30 Days

Details

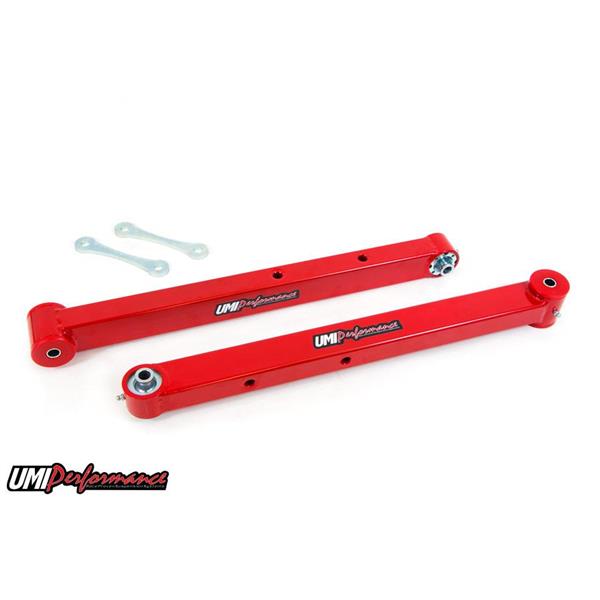

1978-1996 GM B-Body Boxed Lower Control Arms- Poly/Roto-Joint

UMI's boxed lower control arms utilize our Roto-Joint technology for a bind free performance and quiet comfortable ride quality. The boxed control arms are fabricated from 0.120” wall thickness rectangular tubing, CNC machined drawn over mandrel bushing holders and MIG welded end caps to keep out unwanted road debris. Each control arm features the correct provisions for adding a stock or aftermarket rear sway bar, sway bar holes are reinforced with a 0.120” wall thickness steel sleeve that is TIG welded and sanded into place. The solid construction combined with the delrin lined Roto-Joints eliminate control arm flex and bushing deflection for improved traction and reduced wheel hop. The installed Roto-Joint is a pivot ball lined with a greaseable delrin race designed to offer 28 degrees of total unrestricted movement, more than adequate for a bind free, low friction operation. The Roto-Joint design improves performance over the factory rubber and aftermarket polyurethane bushings by allowing the suspension to articulate correctly, and provide precision handling. The installed UMI Roto-Joint allows rear end free movement when high handling, auto cross or road race is a concern while still being a 100% streetable setup. The installed delrin race, which lines the spherical ball, absorbs shock and road noise for a quiet and smooth operation on any street or track driven vehicle. This control arm set features polyurethane bushings on one end and UMI’s swivel Roto-Joint on the other end. This set-up is designed for street performance and street enthusiast. The polyurethane bushing end is designed to be bolted to the vehicle chassis side while the Roto-Joint attaches to the rear end side. Since the polyurethane bushings are softer they are designed to absorb more road noise and shock before it enters the passenger compartment of the vehicle.

Features:

Constructed of 3” x 1-1/2” x 1/8” rectangular steel tubing

MIG and TIG welded construction for superior strength

CNC machined for accurate tolerances and perfect fit

Spherical Roto-Joints installed

Energy Suspension greaseable polyurethane bushings

Reinforced sway bar holes

Shipped fully assembled and ready to install

Uses OEM hardwar

Fitment Details

Year Make Model Trim Engine Notes
1978 Buick LeSabre
1979 Buick LeSabre
1980 Buick LeSabre
1981 Buick LeSabre
1982 Buick LeSabre
1983 Buick LeSabre
1984 Buick LeSabre
1985 Buick LeSabre
1991 Buick Roadmaster
1992 Buick Roadmaster
1993 Buick Roadmaster
1994 Buick Roadmaster
1995 Buick Roadmaster
1996 Buick Roadmaster
1978 Chevrolet Caprice
1979 Chevrolet Caprice
1980 Chevrolet Caprice
1981 Chevrolet Caprice
1982 Chevrolet Caprice
1983 Chevrolet Caprice
1984 Chevrolet Caprice
1985 Chevrolet Caprice
1986 Chevrolet Caprice
1987 Chevrolet Caprice
1988 Chevrolet Caprice
1989 Chevrolet Caprice
1990 Chevrolet Caprice
1991 Chevrolet Caprice
1992 Chevrolet Caprice
1993 Chevrolet Caprice
1994 Chevrolet Caprice
1995 Chevrolet Caprice
1996 Chevrolet Caprice
1994 Chevrolet Impala
1995 Chevrolet Impala
1996 Chevrolet Impala
1977 Pontiac Bonneville
1978 Pontiac Bonneville
1979 Pontiac Bonneville
1980 Pontiac Bonneville
1981 Pontiac Bonneville
1977 Pontiac Catalina
1978 Pontiac Catalina
1979 Pontiac Catalina
1980 Pontiac Catalina
1981 Pontiac Catalina
