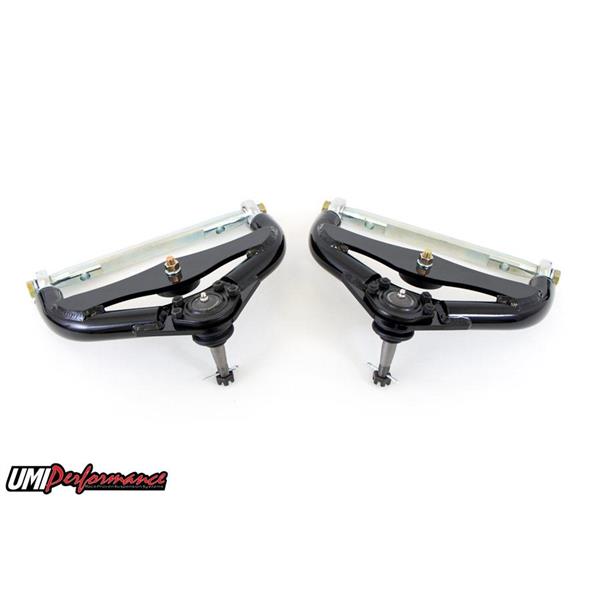

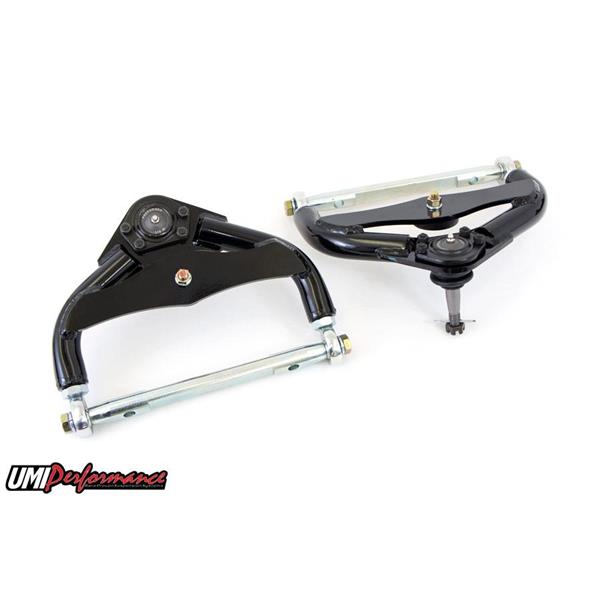

1978-1988 G-Body, S10 Tubular Front Upper A-Arms, Adjustable
UMI’s 3056-3 arms are the ultimate in performance and are race proven on the UMI Green Machine. These adjustable upper a-arms are designed to excel in Pro-Touring, road race, auto-x and hot street corner carving. The race quality rod ends provide shim-free camber and caster adjustment along with ultimate smooth travel. This arm features a relocated ball joint pad to increase caster and improve stability and steering feel as well as a shortened cross shaft to ball joint distance. We recommend the 3056 arm for all racing applications. Arm includes 1” taller low friction ball joints for improved camber curve. 100% manufactured, tested and raced out of Philipsburg, PA – USA.
Features and benefits:
Relocated ball joint pad for increased caster and improved steering feel without excess shims.
1” taller ball joint for improved camber curve.
CNC laser cut ball joint mounting pad.
0.120” wall thickness 1.250” diameter DOM tubing.
TIG welded for superior strength and clean looks.
4130 CrMo cross shafts, CNC machined & zinc plated.
Polyurethane bump stops included.
Travel limiting bolt compatible.
Direct bolt-in compatible with factory or UMI lower a-arm.
May also work in conjunction with other lower a-arms and/or spindles (contact UMI to discuss).
Package includes recommended alignment specs and detailed installation instructions.
Designed, tested, manufactured and raced in Philipsburg, PA-USA.
Exact upper a-arm on UMI’s ’79 Monte Carlo- Green Machine.
Note: Upper a-arm P/N 3056-3 includes 1” taller ball joints and is designed to work with factory spindles. In most cases shims are not needed. Shims may still be required on some applications.
Fitment Details
Year | Make | Model | Trim | Engine | Notes |
---|---|---|---|---|---|
1978 | Buick | Regal | |||
1979 | Buick | Regal | |||
1980 | Buick | Regal | |||
1981 | Buick | Regal | |||
1982 | Buick | Regal | |||
1983 | Buick | Regal | |||
1984 | Buick | Regal | |||
1985 | Buick | Regal | |||
1986 | Buick | Regal | |||
1987 | Buick | Regal | |||
1978 | Chevrolet | El Camino | |||
1979 | Chevrolet | El Camino | |||
1980 | Chevrolet | El Camino | |||
1981 | Chevrolet | El Camino | |||
1982 | Chevrolet | El Camino | |||
1983 | Chevrolet | El Camino | |||
1984 | Chevrolet | El Camino | |||
1985 | Chevrolet | El Camino | |||
1986 | Chevrolet | El Camino | |||
1987 | Chevrolet | El Camino | |||
1978 | Chevrolet | Malibu | |||
1979 | Chevrolet | Malibu | |||
1980 | Chevrolet | Malibu | |||
1981 | Chevrolet | Malibu | |||
1982 | Chevrolet | Malibu | |||
1983 | Chevrolet | Malibu | |||
1978 | Chevrolet | Monte Carlo | |||
1979 | Chevrolet | Monte Carlo | |||
1980 | Chevrolet | Monte Carlo | |||
1981 | Chevrolet | Monte Carlo | |||
1982 | Chevrolet | Monte Carlo | |||
1983 | Chevrolet | Monte Carlo | |||
1984 | Chevrolet | Monte Carlo | |||
1985 | Chevrolet | Monte Carlo | |||
1986 | Chevrolet | Monte Carlo | |||
1987 | Chevrolet | Monte Carlo | |||
1988 | Chevrolet | Monte Carlo | |||
1982 | Chevrolet | S10 | |||
1983 | Chevrolet | S10 | |||
1984 | Chevrolet | S10 | |||
1985 | Chevrolet | S10 | |||
1986 | Chevrolet | S10 | |||
1987 | Chevrolet | S10 | |||
1988 | Chevrolet | S10 | |||
1989 | Chevrolet | S10 | |||
1990 | Chevrolet | S10 | |||
1991 | Chevrolet | S10 | |||
1992 | Chevrolet | S10 | |||
1993 | Chevrolet | S10 | |||
1994 | Chevrolet | S10 | |||
1995 | Chevrolet | S10 | |||
1996 | Chevrolet | S10 | |||
1997 | Chevrolet | S10 | |||
1998 | Chevrolet | S10 | |||
1999 | Chevrolet | S10 | |||
2000 | Chevrolet | S10 | |||
2001 | Chevrolet | S10 | |||
2002 | Chevrolet | S10 | |||
2003 | Chevrolet | S10 | |||
1983 | Chevrolet | S10 Blazer | |||
1984 | Chevrolet | S10 Blazer | |||
1985 | Chevrolet | S10 Blazer | |||
1986 | Chevrolet | S10 Blazer | |||
1987 | Chevrolet | S10 Blazer | |||
1988 | Chevrolet | S10 Blazer | |||
1989 | Chevrolet | S10 Blazer | |||
1990 | Chevrolet | S10 Blazer | |||
1991 | Chevrolet | S10 Blazer | |||
1992 | Chevrolet | S10 Blazer | |||
1993 | Chevrolet | S10 Blazer | |||
1994 | Chevrolet | S10 Blazer | |||
1978 | GMC | Caballero | |||
1979 | GMC | Caballero | |||
1980 | GMC | Caballero | |||
1981 | GMC | Caballero | |||
1982 | GMC | Caballero | |||
1983 | GMC | Caballero | |||
1984 | GMC | Caballero | |||
1985 | GMC | Caballero | |||
1986 | GMC | Caballero | |||
1987 | GMC | Caballero | |||
1982 | GMC | S15 | |||
1983 | GMC | S15 | |||
1984 | GMC | S15 | |||
1985 | GMC | S15 | |||
1986 | GMC | S15 | |||
1987 | GMC | S15 | |||
1988 | GMC | S15 | |||
1989 | GMC | S15 | |||
1990 | GMC | S15 | |||
1983 | GMC | S15 Jimmy | |||
1984 | GMC | S15 Jimmy | |||
1985 | GMC | S15 Jimmy | |||
1986 | GMC | S15 Jimmy | |||
1987 | GMC | S15 Jimmy | |||
1988 | GMC | S15 Jimmy | |||
1989 | GMC | S15 Jimmy | |||
1990 | GMC | S15 Jimmy | |||
1991 | GMC | S15 Jimmy | |||
1991 | GMC | Sonoma | |||
1992 | GMC | Sonoma | |||
1993 | GMC | Sonoma | |||
1994 | GMC | Sonoma | |||
1995 | GMC | Sonoma | |||
1996 | GMC | Sonoma | |||
1997 | GMC | Sonoma | |||
1998 | GMC | Sonoma | |||
1999 | GMC | Sonoma | |||
2000 | GMC | Sonoma | |||
2001 | GMC | Sonoma | |||
2002 | GMC | Sonoma | |||
2003 | GMC | Sonoma | |||
2004 | GMC | Sonoma | |||
1978 | Oldsmobile | Cutlass | |||
1979 | Oldsmobile | Cutlass | |||
1980 | Oldsmobile | Cutlass | |||
1981 | Oldsmobile | Cutlass | |||
1985 | Oldsmobile | Cutlass | |||
1986 | Oldsmobile | Cutlass | |||
1987 | Oldsmobile | Cutlass | |||
1988 | Oldsmobile | Cutlass | |||
1978 | Oldsmobile | Cutlass Calais | |||
1979 | Oldsmobile | Cutlass Calais | |||
1980 | Oldsmobile | Cutlass Calais | |||
1981 | Oldsmobile | Cutlass Calais | |||
1982 | Oldsmobile | Cutlass Calais | |||
1983 | Oldsmobile | Cutlass Calais | |||
1984 | Oldsmobile | Cutlass Calais | |||
1982 | Oldsmobile | Cutlass Ciera | |||
1983 | Oldsmobile | Cutlass Ciera | |||
1984 | Oldsmobile | Cutlass Ciera | |||
1985 | Oldsmobile | Cutlass Ciera | |||
1986 | Oldsmobile | Cutlass Ciera | |||
1987 | Oldsmobile | Cutlass Ciera | |||
1988 | Oldsmobile | Cutlass Ciera | |||
1980 | Oldsmobile | Cutlass Cruiser | |||
1981 | Oldsmobile | Cutlass Cruiser | |||
1982 | Oldsmobile | Cutlass Cruiser | |||
1983 | Oldsmobile | Cutlass Cruiser | |||
1978 | Oldsmobile | Cutlass Salon | |||
1979 | Oldsmobile | Cutlass Salon | |||
1980 | Oldsmobile | Cutlass Salon | |||
1985 | Oldsmobile | Cutlass Salon | |||
1986 | Oldsmobile | Cutlass Salon | |||
1987 | Oldsmobile | Cutlass Salon | |||
1978 | Oldsmobile | Cutlass Supreme | |||
1979 | Oldsmobile | Cutlass Supreme | |||
1980 | Oldsmobile | Cutlass Supreme | |||
1981 | Oldsmobile | Cutlass Supreme | |||
1982 | Oldsmobile | Cutlass Supreme | |||
1983 | Oldsmobile | Cutlass Supreme | |||
1984 | Oldsmobile | Cutlass Supreme | |||
1985 | Oldsmobile | Cutlass Supreme | |||
1986 | Oldsmobile | Cutlass Supreme | |||
1987 | Oldsmobile | Cutlass Supreme | |||
1988 | Oldsmobile | Cutlass Supreme | |||
1982 | Pontiac | Bonneville | |||
1983 | Pontiac | Bonneville | |||
1984 | Pontiac | Bonneville | |||
1985 | Pontiac | Bonneville | |||
1986 | Pontiac | Bonneville | |||
1978 | Pontiac | Grand Prix | |||
1979 | Pontiac | Grand Prix | |||
1980 | Pontiac | Grand Prix | |||
1981 | Pontiac | Grand Prix | |||
1982 | Pontiac | Grand Prix | |||
1983 | Pontiac | Grand Prix | |||
1984 | Pontiac | Grand Prix | |||
1985 | Pontiac | Grand Prix | |||
1986 | Pontiac | Grand Prix | |||
1987 | Pontiac | Grand Prix |
