UMI Performance 78-88 Monte Carlo, S10 Tubular Front Upper A-Arms, Adjustable

$579.99
SKU: 3056-1-B

Availability: In stock

Handling Time: 30 Days

Details

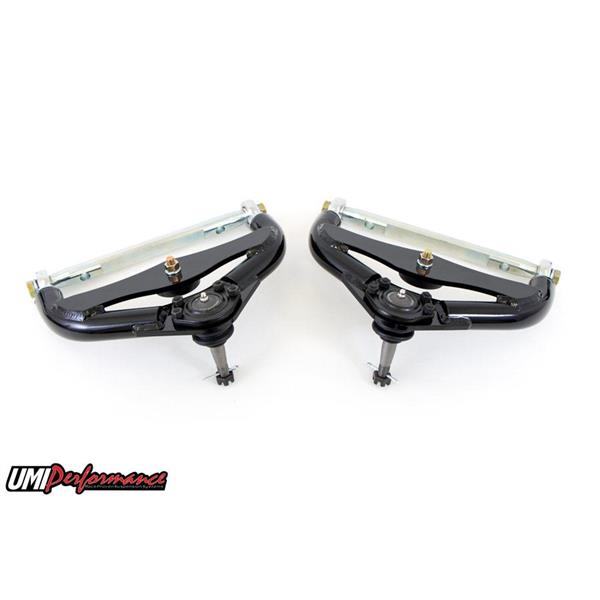

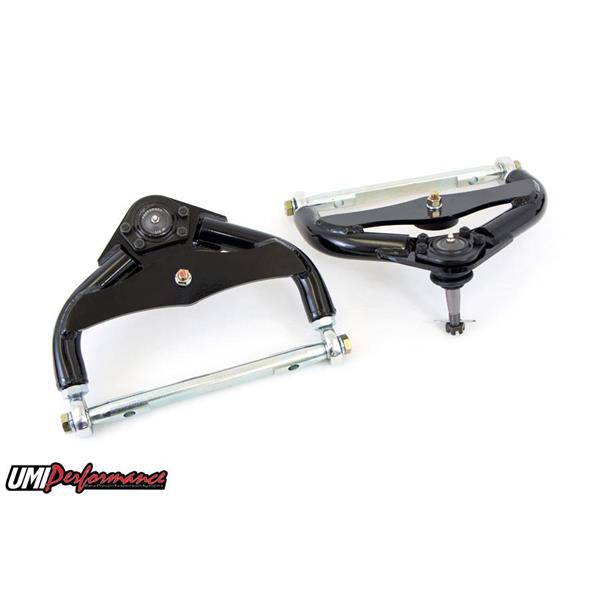

1978-1988 G-Body, S10 Tubular Front Upper A-Arms, Adjustable

UMI’s 3056 adjustable upper a-arms are designed to excel in Pro-Touring, road race, auto-x and hot street corner carving. The race quality rod ends provide shim-free camber and caster adjustment along with ultimate smooth travel. This arm features a relocated ball joint pad to increase caster and improve stability and steering feel as well as a shortened cross shaft to ball joint distance. We recommend the 3056 arm for all racing applications. Arm must be used with tall spindles when using standard height ball joints. 100% manufactured, tested and raced out of Philipsburg, PA – USA.

Features and benefits:

Relocated ball joint pad for increased caster and improved steering feel without excess shims.

Laser cut ball joint mounting pad.

0.120” wall thickness 1.250” diameter DOM tubing.

TIG welded for superior strength and clean looks.

4130 CrMo cross shafts, CNC machined & zinc plated.

Polyurethane bump stops included.

Travel limiting bolt compatible.

Direct bolt-in compatible with factory or UMI lower a-arm and tall spindles.

May also work in conjunction with other lower a-arms and/or spindles (contact UMI to discuss).

Package includes recommended alignment specs and detailed installation instructions.

Designed, tested, manufactured and raced in Philipsburg, PA-USA.

Note: Upper a-arm P/N 3056-1 includes standard height ball joints and must be used with tall spindles. In most cases shims are not needed. Shims may still be required on some applications.

Fitment Details

Year Make Model Trim Engine Notes
1978 Buick Regal
1979 Buick Regal
1980 Buick Regal
1981 Buick Regal
1982 Buick Regal
1983 Buick Regal
1984 Buick Regal
1985 Buick Regal
1986 Buick Regal
1987 Buick Regal
1978 Chevrolet El Camino
1979 Chevrolet El Camino
1980 Chevrolet El Camino
1981 Chevrolet El Camino
1982 Chevrolet El Camino
1983 Chevrolet El Camino
1984 Chevrolet El Camino
1985 Chevrolet El Camino
1986 Chevrolet El Camino
1987 Chevrolet El Camino
1978 Chevrolet Malibu
1979 Chevrolet Malibu
1980 Chevrolet Malibu
1981 Chevrolet Malibu
1982 Chevrolet Malibu
1983 Chevrolet Malibu
1978 Chevrolet Monte Carlo
1979 Chevrolet Monte Carlo
1980 Chevrolet Monte Carlo
1981 Chevrolet Monte Carlo
1982 Chevrolet Monte Carlo
1983 Chevrolet Monte Carlo
1984 Chevrolet Monte Carlo
1985 Chevrolet Monte Carlo
1986 Chevrolet Monte Carlo
1987 Chevrolet Monte Carlo
1988 Chevrolet Monte Carlo
1982 Chevrolet S10
1983 Chevrolet S10
1984 Chevrolet S10
1985 Chevrolet S10
1986 Chevrolet S10
1987 Chevrolet S10
1988 Chevrolet S10
1989 Chevrolet S10
1990 Chevrolet S10
1991 Chevrolet S10
1992 Chevrolet S10
1993 Chevrolet S10
1994 Chevrolet S10
1995 Chevrolet S10
1996 Chevrolet S10
1997 Chevrolet S10
1998 Chevrolet S10
1999 Chevrolet S10
2000 Chevrolet S10
2001 Chevrolet S10
2002 Chevrolet S10
2003 Chevrolet S10
1983 Chevrolet S10 Blazer
1984 Chevrolet S10 Blazer
1985 Chevrolet S10 Blazer
1986 Chevrolet S10 Blazer
1987 Chevrolet S10 Blazer
1988 Chevrolet S10 Blazer
1989 Chevrolet S10 Blazer
1990 Chevrolet S10 Blazer
1991 Chevrolet S10 Blazer
1992 Chevrolet S10 Blazer
1993 Chevrolet S10 Blazer
1994 Chevrolet S10 Blazer
1978 GMC Caballero
1979 GMC Caballero
1980 GMC Caballero
1981 GMC Caballero
1982 GMC Caballero
1983 GMC Caballero
1984 GMC Caballero
1985 GMC Caballero
1986 GMC Caballero
1987 GMC Caballero
1982 GMC S15
1983 GMC S15
1984 GMC S15
1985 GMC S15
1986 GMC S15
1987 GMC S15
1988 GMC S15
1989 GMC S15
1990 GMC S15
1983 GMC S15 Jimmy
1984 GMC S15 Jimmy
1985 GMC S15 Jimmy
1986 GMC S15 Jimmy
1987 GMC S15 Jimmy
1988 GMC S15 Jimmy
1989 GMC S15 Jimmy
1990 GMC S15 Jimmy
1991 GMC S15 Jimmy
1991 GMC Sonoma
1992 GMC Sonoma
1993 GMC Sonoma
1994 GMC Sonoma
1995 GMC Sonoma
1996 GMC Sonoma
1997 GMC Sonoma
1998 GMC Sonoma
1999 GMC Sonoma
2000 GMC Sonoma
2001 GMC Sonoma
2002 GMC Sonoma
2003 GMC Sonoma
1978 Oldsmobile Cutlass
1979 Oldsmobile Cutlass
1980 Oldsmobile Cutlass
1981 Oldsmobile Cutlass
1985 Oldsmobile Cutlass
1986 Oldsmobile Cutlass
1987 Oldsmobile Cutlass
1988 Oldsmobile Cutlass
1978 Oldsmobile Cutlass Calais
1979 Oldsmobile Cutlass Calais
1980 Oldsmobile Cutlass Calais
1981 Oldsmobile Cutlass Calais
1982 Oldsmobile Cutlass Calais
1983 Oldsmobile Cutlass Calais
1984 Oldsmobile Cutlass Calais
1982 Oldsmobile Cutlass Ciera
1983 Oldsmobile Cutlass Ciera
1984 Oldsmobile Cutlass Ciera
1985 Oldsmobile Cutlass Ciera
1986 Oldsmobile Cutlass Ciera
1987 Oldsmobile Cutlass Ciera
1988 Oldsmobile Cutlass Ciera
1980 Oldsmobile Cutlass Cruiser
1981 Oldsmobile Cutlass Cruiser
1982 Oldsmobile Cutlass Cruiser
1983 Oldsmobile Cutlass Cruiser
1978 Oldsmobile Cutlass Salon
1979 Oldsmobile Cutlass Salon
1980 Oldsmobile Cutlass Salon
1985 Oldsmobile Cutlass Salon
1986 Oldsmobile Cutlass Salon
1987 Oldsmobile Cutlass Salon
1978 Oldsmobile Cutlass Supreme
1979 Oldsmobile Cutlass Supreme
1980 Oldsmobile Cutlass Supreme
1981 Oldsmobile Cutlass Supreme
1982 Oldsmobile Cutlass Supreme
1983 Oldsmobile Cutlass Supreme
1984 Oldsmobile Cutlass Supreme
1985 Oldsmobile Cutlass Supreme
1986 Oldsmobile Cutlass Supreme
1987 Oldsmobile Cutlass Supreme
1988 Oldsmobile Cutlass Supreme
1982 Pontiac Bonneville
1983 Pontiac Bonneville
1984 Pontiac Bonneville
1985 Pontiac Bonneville
1986 Pontiac Bonneville
1978 Pontiac Grand Prix
1979 Pontiac Grand Prix
1980 Pontiac Grand Prix
1981 Pontiac Grand Prix
1982 Pontiac Grand Prix
1983 Pontiac Grand Prix
1984 Pontiac Grand Prix
1985 Pontiac Grand Prix
1986 Pontiac Grand Prix
1987 Pontiac Grand Prix
