Details

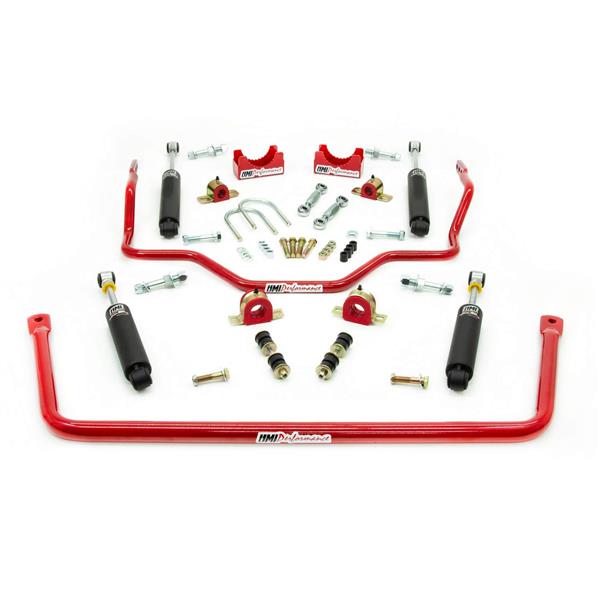

1973-1987 GM C10 Handling Kit, Stage 1
Stage 1 kit provides exceptional ride and handling. Heavy duty front sway bar and three way adjustable rear sway bar provides excellent sway control and handling balance. UMI monotube shocks with truck specific valving control the chassis whether cruising, hauling or corner carving. Suitable for factory ride height trucks as well as lowered truck if UMI P/N 6411 is added. 100% Made In USA.
Power Tour and daily driver proven
1-3/8″ tubular front sway bar
Three way adjustable 1″ solid rear sway bar
High pressure nitrogen charged monotube shocks with truck specific valving
Front Shock Extended Length (in): 14.375
Front Shock Collapsed Length (in): 10.625
Rear Shock Extended Length (in): 20.125
Rear Shock Collapsed Length (in): 13.000
Works with stock height trucks
Works with lowered trucks when UMI 6411 rear shock relocation is added
Minor drilling is required for installation
100% Made In USA with US materials
Fitment Details
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| 1975 | Chevrolet | C10 | |||
| 1976 | Chevrolet | C10 | |||
| 1977 | Chevrolet | C10 | |||
| 1978 | Chevrolet | C10 | |||
| 1979 | Chevrolet | C10 | |||
| 1980 | Chevrolet | C10 | |||
| 1981 | Chevrolet | C10 | |||
| 1982 | Chevrolet | C10 | |||
| 1983 | Chevrolet | C10 | |||
| 1984 | Chevrolet | C10 | |||
| 1985 | Chevrolet | C10 | |||
| 1986 | Chevrolet | C10 | |||
| 1973 | Chevrolet | C10 Pickup | |||
| 1974 | Chevrolet | C10 Pickup | |||
| 1987 | Chevrolet | R10 | |||
| 1975 | GMC | C15 | |||
| 1976 | GMC | C15 | |||
| 1977 | GMC | C15 | |||
| 1978 | GMC | C15 | |||
| 1973 | GMC | C15/C1500 Pickup | |||
| 1974 | GMC | C15/C1500 Pickup | |||
| 1979 | GMC | C1500 | |||
| 1980 | GMC | C1500 | |||
| 1981 | GMC | C1500 | |||
| 1982 | GMC | C1500 | |||
| 1983 | GMC | C1500 | |||
| 1984 | GMC | C1500 | |||
| 1985 | GMC | C1500 | |||
| 1986 | GMC | C1500 | |||
| 1987 | GMC | R1500 |
