UMI Performance 73-87 GM C10 Truck Suspension Handling Kit, Stage 1

$1,168.99
SKU: 6401-B

Availability: In stock

Handling Time: 30 Days

Details

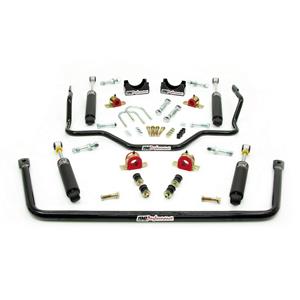

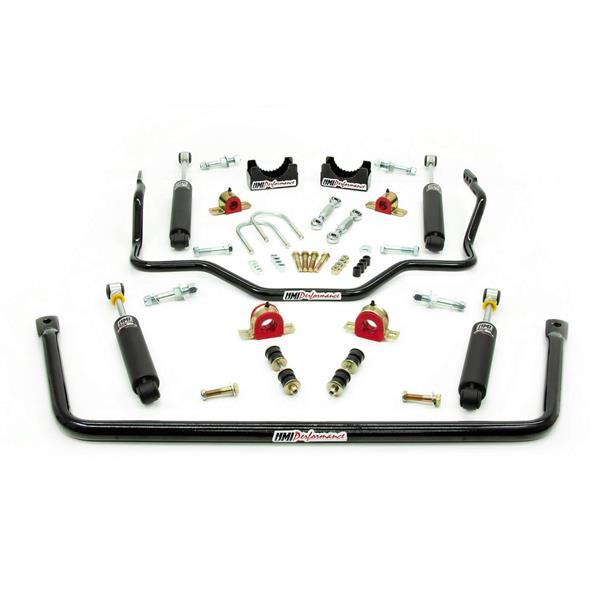

1973-1987 GM C10 Handling Kit, Stage 1

Stage 1 kit provides exceptional ride and handling. Heavy duty front sway bar and three way adjustable rear sway bar provides excellent sway control and handling balance. UMI monotube shocks with truck specific valving control the chassis whether cruising, hauling or corner carving. Suitable for factory ride height trucks as well as lowered truck if UMI P/N 6411 is added. 100% Made In USA.

Power Tour and daily driver proven

1-3/8″ tubular front sway bar

Three way adjustable 1″ solid rear sway bar

High pressure nitrogen charged monotube shocks with truck specific valving

Front Shock Extended Length (in): 14.375

Front Shock Collapsed Length (in): 10.625

Rear Shock Extended Length (in): 20.125

Rear Shock Collapsed Length (in): 13.000

Works with stock height trucks

Works with lowered trucks when UMI 6411 rear shock relocation is added

Minor drilling is required for installation

100% Made In USA with US materials

Fitment Details

Year Make Model Trim Engine Notes
1975 Chevrolet C10
1976 Chevrolet C10
1977 Chevrolet C10
1978 Chevrolet C10
1979 Chevrolet C10
1980 Chevrolet C10
1981 Chevrolet C10
1982 Chevrolet C10
1983 Chevrolet C10
1984 Chevrolet C10
1985 Chevrolet C10
1986 Chevrolet C10
1973 Chevrolet C10 Pickup
1974 Chevrolet C10 Pickup
1987 Chevrolet R10
1975 GMC C15
1976 GMC C15
1977 GMC C15
1978 GMC C15
1973 GMC C15/C1500 Pickup
1974 GMC C15/C1500 Pickup
1979 GMC C1500
1980 GMC C1500
1981 GMC C1500
1982 GMC C1500
1983 GMC C1500
1984 GMC C1500
1985 GMC C1500
1986 GMC C1500
1987 GMC R1500
