Details

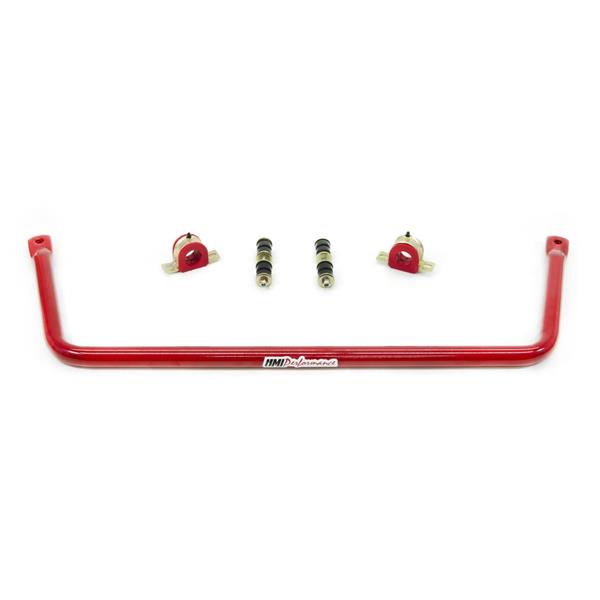

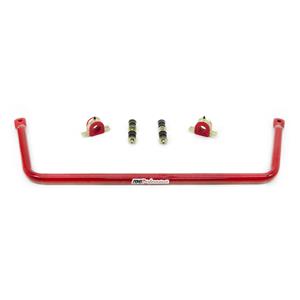

1973-1987 GM C10 Front Sway Bar, 1-3/8″ tubular
Heavy duty tubular sway bar reduces body roll and improves cornering capability. Tubular construction balances heavy load and sway control with lightweight performance. The bar is built from US steel and includes chassis bushings and endlinks. Balances well with UMI 6443 three way adjustable rear bar.
Power Tour and daily driver proven
1-3/8″ heavy duty tubular construction – strong and light
Direct bolt-in
Stiffer than stock to reduce body roll and increase performance
End links and chassis mount bushings included
Minor drilling of a-arms required to accommodate heavy duty end links
Pair with UMI 6443 rear sway bar for ultimate sway control
UMI 90048 (1-3/8″) billet aluminum sway bar mount upgrade available
Use UMI 6444 (factory height) or UMI 6445 (lowered) chassis brackets on trucks without factory front sway bar mount
100% Made In USA
Fitment Details
Year | Make | Model | Trim | Engine | Notes |
---|---|---|---|---|---|
1975 | Chevrolet | C10 | |||
1976 | Chevrolet | C10 | |||
1977 | Chevrolet | C10 | |||
1978 | Chevrolet | C10 | |||
1979 | Chevrolet | C10 | |||
1980 | Chevrolet | C10 | |||
1981 | Chevrolet | C10 | |||
1982 | Chevrolet | C10 | |||
1983 | Chevrolet | C10 | |||
1984 | Chevrolet | C10 | |||
1985 | Chevrolet | C10 | |||
1986 | Chevrolet | C10 | |||
1973 | Chevrolet | C10 Pickup | |||
1974 | Chevrolet | C10 Pickup | |||
1987 | Chevrolet | R10 | |||
1975 | GMC | C15 | |||
1976 | GMC | C15 | |||
1977 | GMC | C15 | |||
1978 | GMC | C15 | |||
1973 | GMC | C15/C1500 Pickup | |||
1974 | GMC | C15/C1500 Pickup | |||
1979 | GMC | C1500 | |||
1980 | GMC | C1500 | |||
1981 | GMC | C1500 | |||
1982 | GMC | C1500 | |||
1983 | GMC | C1500 | |||
1984 | GMC | C1500 | |||
1985 | GMC | C1500 | |||
1986 | GMC | C1500 | |||
1987 | GMC | R1500 |
