Details
1972-1981 GM F-Body Bump Steer Adjuster Kit, Heavy Duty Race

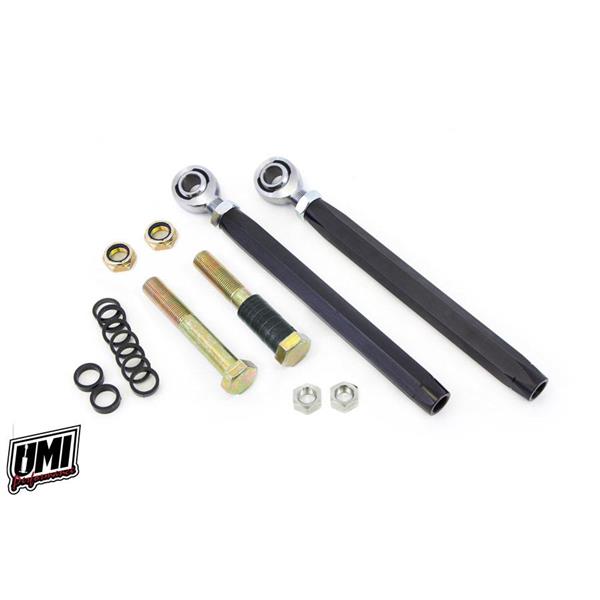

UMI’s 2660-1 bump steer kit allows adjustment of the outer tie rod height which in turn can help reduce or eliminate toe change during wheel travel. This kit includes a heavy duty 5/8" bolt and washer kit with a wide adjustment range along with an anodized sleeve and jam nuts. The 2660-1 is recommended for ultra high performance use such as large tire road racing, auto-x and high speed drag racing. This race proven kit helps improve steering precision and feedback. Manufactured and raced with pride out of Philipsburg, PA – USA.
Notes:
Spindle drilling is required to accept 5/8" adjustment bolt. After drilling, the spindle cannot be returned to factory taper.
Bump steer adjustment tools and theory can be found at longacreracing.com
Features:
Heavy duty 5/8" bolt recommended for road race and auto-x use.
Black anodized aluminum hex tube.
Race quality rod ends.
Fits stock tie 11/16" tie rods. No tie rod modifications required.
Spacers (6 each 0.125”, 0.1875” and 0.250”) and locking nuts included.
Manufactured and raced with pride out of Philipsburg, PA - USA
Fitment Details
Year | Make | Model | Trim | Engine | Notes |
---|---|---|---|---|---|
1972 | Chevrolet | Camaro | |||
1973 | Chevrolet | Camaro | |||
1974 | Chevrolet | Camaro | |||
1975 | Chevrolet | Camaro | |||
1976 | Chevrolet | Camaro | |||
1977 | Chevrolet | Camaro | |||
1978 | Chevrolet | Camaro | |||
1979 | Chevrolet | Camaro | |||
1980 | Chevrolet | Camaro | |||
1981 | Chevrolet | Camaro | |||
1972 | Pontiac | Firebird | |||
1973 | Pontiac | Firebird | |||
1974 | Pontiac | Firebird | |||
1975 | Pontiac | Firebird | |||
1976 | Pontiac | Firebird | |||
1977 | Pontiac | Firebird | |||
1978 | Pontiac | Firebird | |||
1979 | Pontiac | Firebird | |||
1980 | Pontiac | Firebird | |||
1981 | Pontiac | Firebird |
