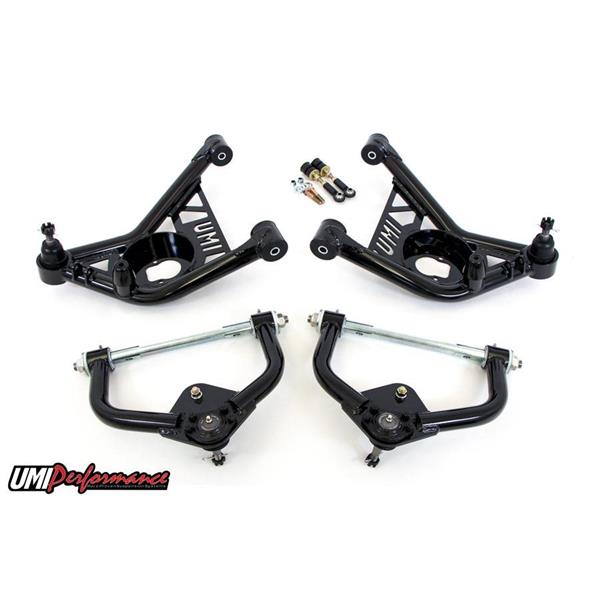

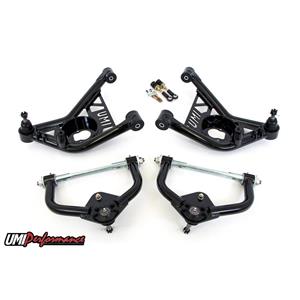

UMI Performance 70-81 Camaro Tubular Upper & Lower A-arm Kit

$1,238.99
SKU: 265153-B

Availability: In stock

Handling Time: 30 Days

Details

1970-1981 GM F-Body Tubular Upper & Lower A-arm Kit

UMI’s 2nd Generation F-Body a-arms are perfect for the F-Body enthusiast seeking to improve the performance and appearance of their front suspension. This kit features caster relocation of both the upper and lower ball joints to enhance steering feel and improve high speed stability. As designed, the caster range is 5-7 degrees. The spindle pin location remains unchanged so fender clearance is like stock. The upper a-arms include CrMo offset cross shafts to reduce the amount of shims required when setting camber. A pancake style polyurethane bump stop and high quality ball joint is included. The heavy duty lower spring bucket accepts factory and aftermarket coil springs as well as the popular hybrid coilover units. Laser cut UMI reinforcement plates add a great appearance and excellent strength. UMI’s double shear sway bar end links are included and work nicely with UMI P/N 4035 sway bar and also most aftermarket stock eyelet type sway bars. Available in UMI red or gloss black powder coat. 100% designed, manufactured and raced with pride in Philipsburg, PA - USA.

Features:

Direct bolt-in for 1970-1981 GM F-Body.

CrMo offset cross shaft upper to reduce number of shims required.

5-7 degrees of total positive caster. 0 to 2-1/2 degrees of negative camber.

Upper ball joint moved rearward to add 3-4 degrees caster potential.

Lower ball joint relocated forward to increase caster 2 degrees which improves steering feel and straight line stability.

Upper a-arm assembled with UMI built Delrin bushings for crisp steering response.

Upper and lower a-arms built from USA Made DOM steel tubing.

Heavy duty spring bucket accepts factory and aftermarket coil springs.

Spring bucket is compatible with popular hybrid coils such as Viking and QA1.

High quality polyurethane bushings and bump stops provide a crisp yet comfortable ride

Double shear swivel sway bar mounts and hardware work with UMI P/N 4035 and most other factory eyelet style sway bars.

Made in the USA.

Optional New Hardware Kit: UMI offers the option of new high grade mounting hardware for your classic Camaro or Firebird. 1970-1974 cars use ½” standard hardware on the lower a-arms while 1975-1981 use 14mm metric control arm hardware. UMI suggests checking your vehicles current hardware size before ordering to confirm. UMI a-arms are supplied with both sets of mounting sleeves to except either hardware sizes. Hardware kits are Grade 8 standard and Grade 10.9 metric with Ny-lock nuts.

Fitment Details

Year Make Model Trim Engine Notes
1970 Chevrolet Camaro
1971 Chevrolet Camaro
1972 Chevrolet Camaro
1973 Chevrolet Camaro
1974 Chevrolet Camaro
1975 Chevrolet Camaro
1976 Chevrolet Camaro
1977 Chevrolet Camaro
1978 Chevrolet Camaro
1979 Chevrolet Camaro
1980 Chevrolet Camaro
1981 Chevrolet Camaro
1970 Pontiac Firebird
1971 Pontiac Firebird
1972 Pontiac Firebird
1973 Pontiac Firebird
1974 Pontiac Firebird
1975 Pontiac Firebird
1976 Pontiac Firebird
1977 Pontiac Firebird
1978 Pontiac Firebird
1979 Pontiac Firebird
1980 Pontiac Firebird
1981 Pontiac Firebird
