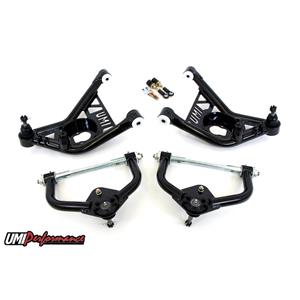

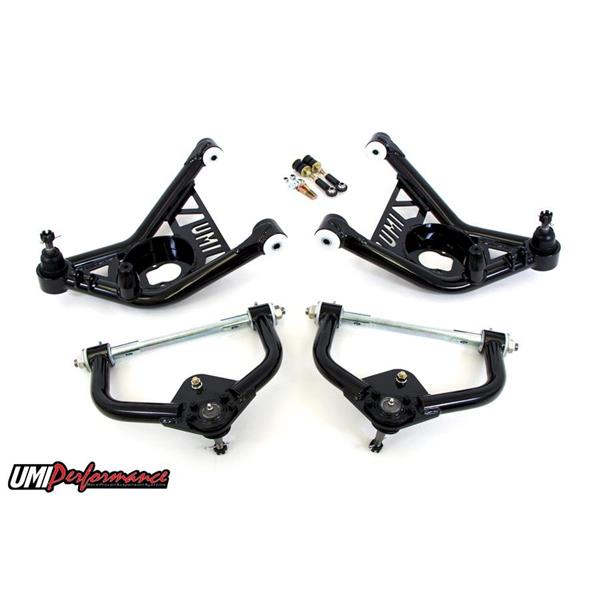

UMI Performance 70-81 Camaro Front A-arm Kit, Delrin Bushings, Tall Ball Joints

SKU: 265253-1-B

Availability: In stock

Handling Time: 30 Days


1970-1981 GM F-Body Front A-arm Kit, Delrin Bushings, Tall Ball Joints

UMI’s 2nd Generation F-Body a-arm kit, P/N 265253-1 is designed to make your classic cruiser feel like modern muscle. Increased positive caster combined with improved camber curve and low friction Delrin bushings make for a well-tuned front end. Increased caster is achieved relocating both the upper and lower ball joints to enhance steering feel and improve high speed stability. As designed, the caster range is 5-7 degrees. The spindle pin location remains unchanged so fender clearance is like stock. The upper a-arms include offset CrMo cross shafts to reduce the amount of shims required when setting camber as well as a tall ball joint to improve camber gain. Upper and lower a-arms are assembled with UMI built Delrin bushings to allow proper suspension movement. A pancake style polyurethane bump stop is included to control suspension droop. The heavy duty lower spring bucket accepts factory and aftermarket coil springs as well as the popular hybrid coilover units. Laser cut UMI reinforcement plates add a great appearance and excellent strength. UMI’s double shear sway bar end links are included and work nicely with UMI P/N 4035 sway bar and also most aftermarket stock eyelet type sway bars. Available in UMI red or gloss black powder coat. 100% designed, manufactured and raced with pride in Philipsburg, PA - USA.


Performance a-arm kit is a direct bolt-in for 1970-1981 GM F-Body.

CrMo offset cross shaft upper to reduce number of shims required during alignment.

5-7 degrees of total positive caster. 0 to 2-1/2 degrees of negative camber.

Upper ball joint moved rearward to add 3-4 degrees caster potential.

Lower ball joint relocated forward to increase caster 2 degrees which improves steering feel and straight line stability.

Upper and lower a-arms built from USA Made DOM steel tubing.

UMI built Delrin bushings for crisp steering response.

½” taller upper ball joint to improve camber gain and traction during cornering.

Heavy duty spring bucket accepts factory and aftermarket coil springs.

Spring bucket is compatible with popular hybrid coils such as Viking and QA1.

UMI built Delrin bushings improve steering response and reduce deflection.

Double shear swivel sway bar mounts and hardware work with UMI P/N 4035 and most other factory eyelet style sway bars.

Made in the USA.

Optional New Hardware Kit: UMI offers the option of new high grade mounting hardware for your classic Camaro or Firebird. 1970-1974 cars use ½” standard hardware on the lower a-arms while 1975-1981 use 14mm metric control arm hardware. UMI suggests checking your vehicles current hardware size before ordering to confirm. UMI a-arms are supplied with both sets of mounting sleeves to except either hardware sizes. Hardware kits are Grade 8 standard and Grade 10.9 metric with Ny-lock nuts.

Fitment Details

Year Make Model Trim Engine Notes
1970 Chevrolet Camaro
1971 Chevrolet Camaro
1972 Chevrolet Camaro
1973 Chevrolet Camaro
1974 Chevrolet Camaro
1975 Chevrolet Camaro
1976 Chevrolet Camaro
1977 Chevrolet Camaro
1978 Chevrolet Camaro
1979 Chevrolet Camaro
1980 Chevrolet Camaro
1981 Chevrolet Camaro
1970 Pontiac Firebird
1971 Pontiac Firebird
1972 Pontiac Firebird
1973 Pontiac Firebird
1974 Pontiac Firebird
1975 Pontiac Firebird
1976 Pontiac Firebird
1977 Pontiac Firebird
1978 Pontiac Firebird
1979 Pontiac Firebird
1980 Pontiac Firebird
1981 Pontiac Firebird
